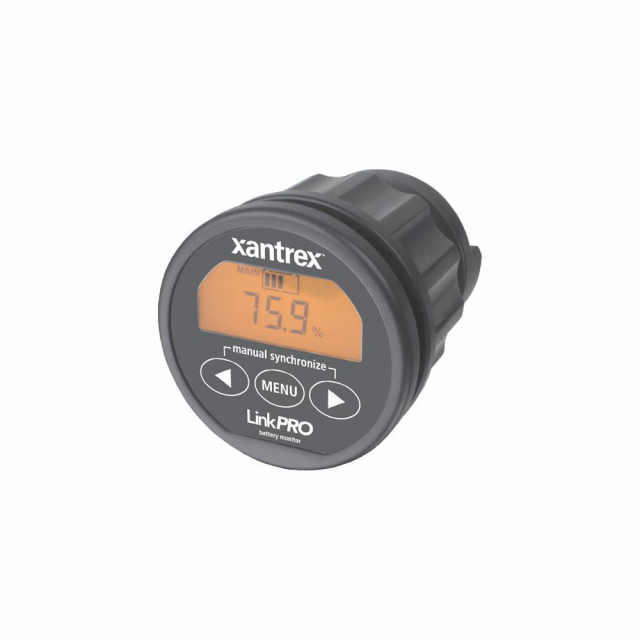

Xantrex 84-2031-00 LinkPRO Battery Monitor

Features:

• Read your battery bank like a fuel gauge
• Provides critical information about the status of your battery bank
• Displays voltage, current, consumed amphours and remaining battery capacity
• Secondary battery bank voltage monitoring
• Auto sensing battery voltage inputs
• Large backlit LCD Display
• Quick nut mounting construction
• Programmable alarm relay
• Shunt selection capability enables flexible system integration
• Splash proof frontpanel
• CE and e-mark certified
• Displays time remaining
• Communication/expansion port
• Stores a wide range of history events in internal memory
• Advanced programmable alarm relay
• Battery temperature sensor input

High performance measuring circuits, along with complex software algorithms, are used to exactly determine the remaining battery capacity. A shunt selection feature enables the LinkPRO to measure currents up to 10,000 Amps.

The LinkPRO selectively displays voltage, charge and discharge current, consumed amphours, remaining battery capacity and the time remaining of your battery bank. Using a clear backlit LCD Display and an intuitive user interface, all parameters can be recalled with just a button press. A second battery input is also provided to monitor voltage on a second battery.

It is equipped with an internal programmable alarm relay, to run a generator whenneeded or to turn off devices when the battery voltage exceeds programmable boundaries.

For more information, please see Data Sheet
