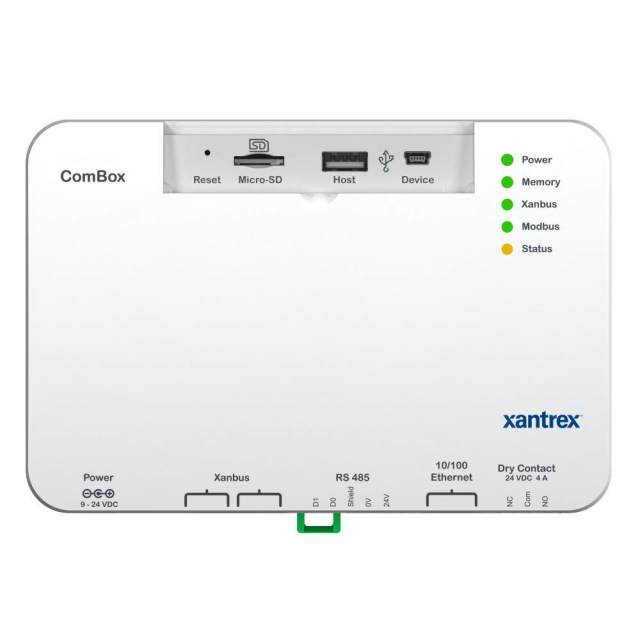

Xantrex 809-0918 Combox Communication Box for SW Series

Features:

• Powered by Xanbus network (Freedom SW Inverter/ Charger, or supplied AC/ DC adapter)
• Accepts USB thumb drive & micro SD card that provides additional data storage
• Compact, light weight, easy to install
• Non-volatile memory - preserves the latest Conext ComBox settings if power is interrupted or network communication is disrupted
• Firmware storage and upgrade capability - upgrade firmware for Xanbus-enabled devices on the network

The ComBox Freedom SW (809-0918) provides an overall view of system performance for mobile power monitoring systems such as RV, Marine vessels, construction and other heavy duty applications.

• Control Inverter - enable/ disable
• Control Generator - off/ on/ auto
• Real-time clock - when set, keeps time for the entire system
• Shore breaker size (selectable range 5-50A)
• Provides a more comprehensive and user friendly interface as an alternative to the SCP system control panel
• Data logging
  • Battery charge (Watt-hours)
  • Load consumption (Wh)
  • Utility grid input (Wh)
  • Generator input (Wh)
  • Setup - advanced access for installers and technician support

For more information, please see Data Sheet
