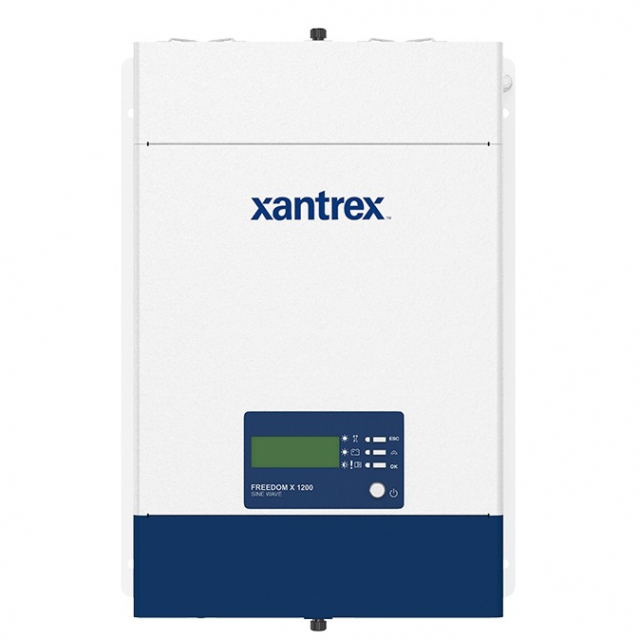

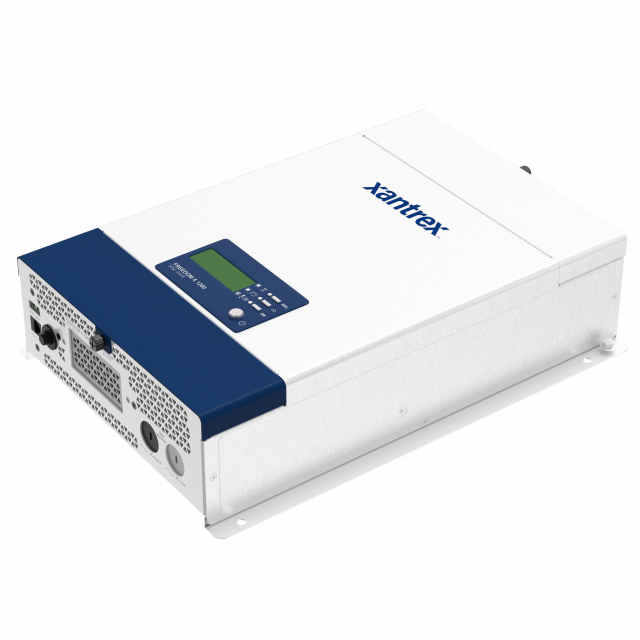

Xantrex 806-1212 Freedom X 1200 W True Sine Inverter

  • Brand Xantrex
  • Part # 806-1212
  • Model # Freedom X
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Features:

    • Engineered specifically to meet the needs of heavy-duty trucks, the Freedom X 1200 offers a perfect blend of performance and cost.
    • The Freedom X 1200 is ideal for installation in all types of commercial vehicles.
    • Overload and Over Temperature Alarm and Shutdown

    Applications:

    • Recreational Vehicles
    • Heavy Duty Truck
    • Work Truck

    Certifications:

    • H.A.L.T
    • ETL listed to CSA Standard C22.2 No. 107.1
    • FCC Part 15, Class B
    • UL458* for marine supplement compliance drip shield in specific mounting orientations when required

    Robust. Durable. Flexible.

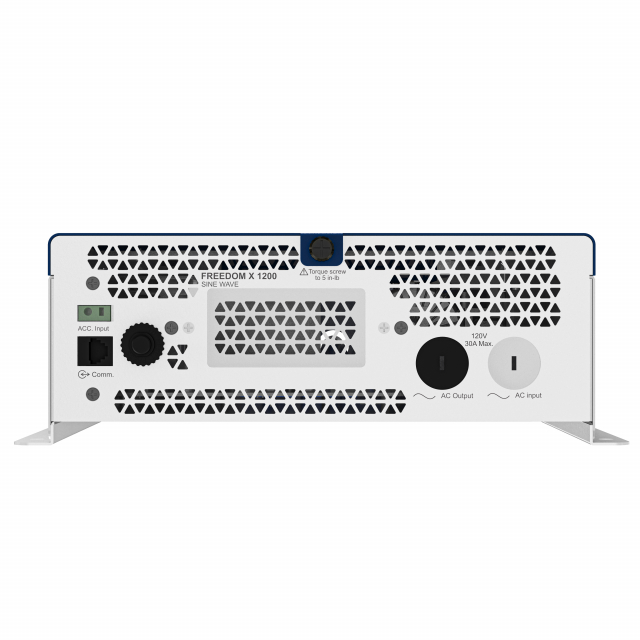

    Its rugged, industrial design ensures optimum performance in all conditions. Quick-connect terminals at AC input & output and pre-wired pigtail cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy-duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, a built-in transfer switch, and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has a built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.

    Back-up Capability with Fast Transfer Time

    In case of a blowout, it automatically becomes a power source that supplies utility-grade AC power to your loads when installed with a DC battery.

    Minimum Battery Drain

    Built-in protection features safeguard your batteries like the low battery voltage alarm and shutdown and protect equipment such as a configurable AC transfer speed.

    What Can Be Powered:

    • Laptop
    • TV
    • DVD-player
    • Refrigerator

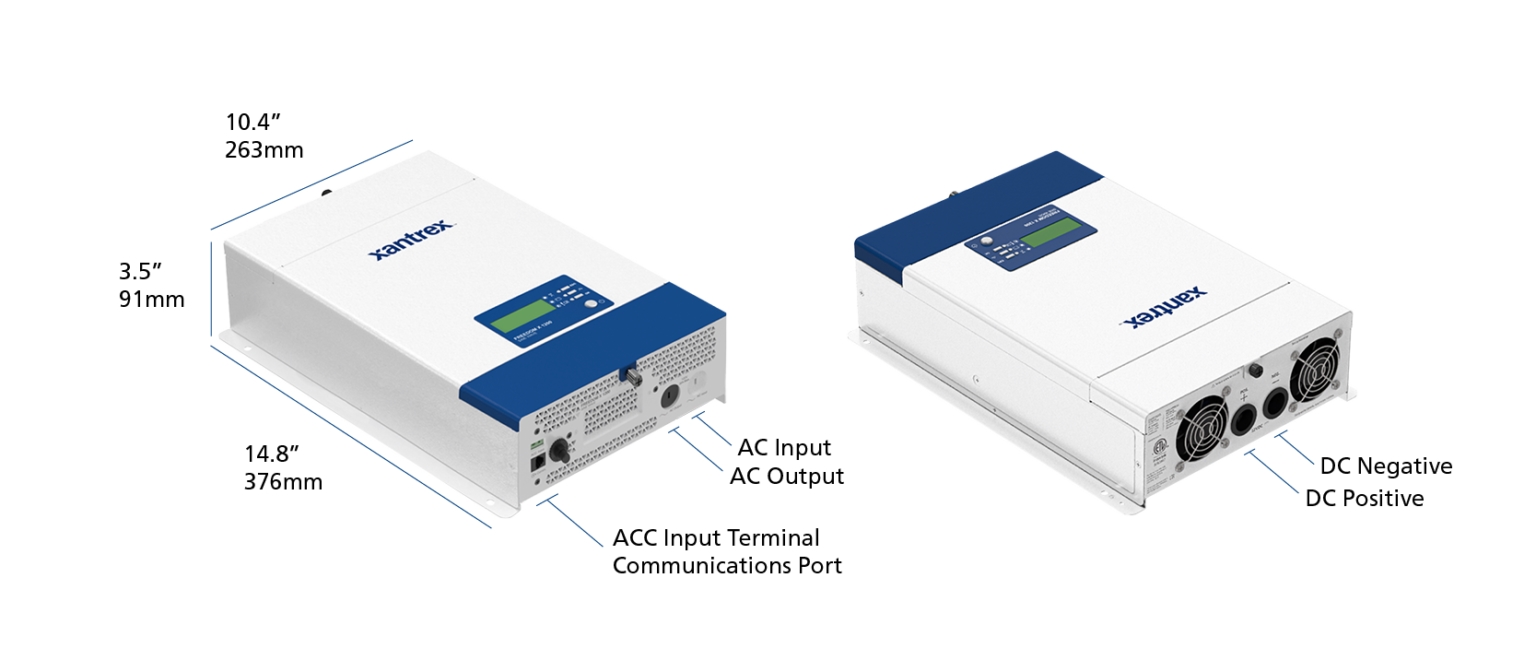

    Dimensions:

    dimensions

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Electrical Specifications
    Output Power (Continuous)1200 W
    Surge Rating2400 W
    Output Voltage Range110-125 Vac
    Output Frequency Regulation (User Configurable)50/60 Hz
    Output Wave FormTrue Sine Wave
    Efficiency (Full Load)> 86%
    Peak Efficiency> 91%
    No-load Input Power (Producing Output Voltage)< 10 W
    Off Mode Current Draw (Display Off)< 4 mA
    AC Input Operating Voltage Range95-130 VAC
    AC Transfer Relay30 A
    DC Input Operating Voltage Range10.5-16.5 VDC
    Transfer Time10-20 ms
    Battery Voltage (Nominal)12 VDC
    Low Battery Cut-outAdjustable from 10.5-12.1 VDC
    AC Receptacles15 A breaker supplied
    General Specifications
    Operating Temperature Range-4-122°F (-20-50°C)
    Storage Temperature Range-40-158°F (-40-70°C)
    Operating Humidity Range5-95%, non-condensing
    Dimensions (L x W x H)14.8 x 10.4 x 3.5" (376 x 263 x 91 mm)
    Net Weight10.4 lb (4.7 kg)
    Regulatory Approval
    ETLETL listed to CSA Standard C22.2 No. 107.1, UL458* with marine supplement
    FCCCFR 47, FCC, PART 15, Subpart B, Class B and CAN ICES-3 (B) / NMB-3 (B)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Electrical Specifications
    Output Power (Continuous)1200 W
    Surge Rating2400 W
    Output Voltage Range110-125 Vac
    Output Frequency Regulation (User Configurable)50/60 Hz
    Output Wave FormTrue Sine Wave
    Efficiency (Full Load)> 86%
    Peak Efficiency> 91%
    No-load Input Power (Producing Output Voltage)< 10 W
    Off Mode Current Draw (Display Off)< 4 mA
    AC Input Operating Voltage Range95-130 VAC
    AC Transfer Relay30 A
    DC Input Operating Voltage Range10.5-16.5 VDC
    Transfer Time10-20 ms
    Battery Voltage (Nominal)12 VDC
    Low Battery Cut-outAdjustable from 10.5-12.1 VDC
    AC Receptacles15 A breaker supplied
    General Specifications
    Operating Temperature Range-4-122°F (-20-50°C)
    Storage Temperature Range-40-158°F (-40-70°C)
    Operating Humidity Range5-95%, non-condensing
    Dimensions (L x W x H)14.8 x 10.4 x 3.5" (376 x 263 x 91 mm)
    Net Weight10.4 lb (4.7 kg)
    Regulatory Approval
    ETLETL listed to CSA Standard C22.2 No. 107.1, UL458* with marine supplement
    FCCCFR 47, FCC, PART 15, Subpart B, Class B and CAN ICES-3 (B) / NMB-3 (B)
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
