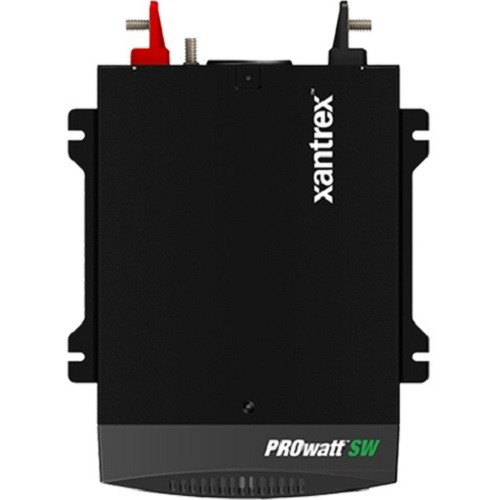

Xantrex 806-1206 PROwatt SW600 True Sine Wave Inverter

  • Brand Xantrex
  • Part # 806-1206
  • Model # PROwatt SW600
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Features:

    • Exceptional full-rated performance in all climate temperatures
    • Ignition control (With optional remote panel) turns inverter on/off via 12Vdc signal
    • True sine wave output for sensitive and motor loads
    • The compact, easy-to-use, and easy-to-install design of the PROwatt SW Series makes it ideal for use in commercial trucks, RV, and marine applications.
    • It also meets the UL458 marine supplement.
    • Automatic AC transfer function and hardwire through the Transfer Switch
    • Digital display of output power and DC volts

    Applications:

    • Recreational Vehicles
    • Heavy Duty Trucks
    • Marine
    • Work Truck
    • Specialty/Emergency Vehicle

    Certifications:

    • H.A.L.T
    • UL458 with marine supplement 01 (R2006) - General Use Power Supplies. CSA 107.1
    • FCC Part 15, Class A

    True Sine AC Power in a Compact and Affordable Package

    These low-profile true sine wave inverters pack big power in a small package and add a great price. Great with a Xantrex solar power system.

    Perfect for installation in your travel trailer, tent trailer, or coach, these units are great for CPAP machines, electronics, entertainment systems, and many other loads. Use the optional transfer switch or remote control switch to customize your installation!

    What Can Be Powered:

    • Blender
    • Fridge
    • TV
    • Smartphone
    • Laptop

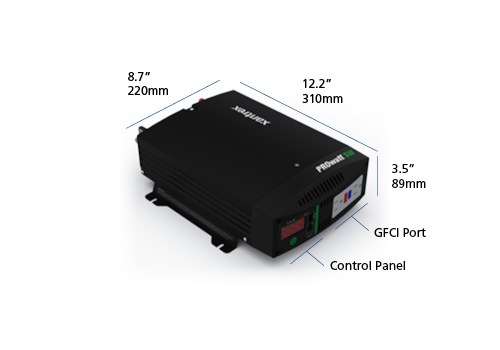

    Dimensions:

    dimensions

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Electrical Specifications
    Specification600
    Continuous Power540 W
    Surge Capacity (Peak)1200 W
    DC Input12 Vdc (nominal)
    AC Output Frequency60 ± 0.5 Hz
    AC Output Voltage Range104 - 127 Vac
    USB Output5 V / 500 mA
    Output WaveformTrue Sine Wave
    Optimum Efficiency90%
    No Load Current Draw< 0.6 A
    Input Voltage Range10.5 - 15.5 Vdc
    General Specifications
    Operating Temperature Range32°F - 104°F (0°C - 40°C)
    AC ReceptacleDual GFCI
    USB ReceptacleSingle port (Type A)
    DC ConnectionHardwire
    Recommended Dc Fuse150 A
    Digital DisplayDC voltage AC output power & error codes
    Dimensions (H X W X L)3.5 x 8.7 x 12.2" (89 x 220 x 310 mm)
    Weight6.5 lb (3.0 kg)
    Regulatory
    SafetyUL458 with marine supplement 01 (R2006) - General Use Power Supplies. CSA 107.1
    EMCFCC Part 15, Class A
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Electrical Specifications
    Specification600
    Continuous Power540 W
    Surge Capacity (Peak)1200 W
    DC Input12 Vdc (nominal)
    AC Output Frequency60 ± 0.5 Hz
    AC Output Voltage Range104 - 127 Vac
    USB Output5 V / 500 mA
    Output WaveformTrue Sine Wave
    Optimum Efficiency90%
    No Load Current Draw< 0.6 A
    Input Voltage Range10.5 - 15.5 Vdc
    General Specifications
    Operating Temperature Range32°F - 104°F (0°C - 40°C)
    AC ReceptacleDual GFCI
    USB ReceptacleSingle port (Type A)
    DC ConnectionHardwire
    Recommended Dc Fuse150 A
    Digital DisplayDC voltage AC output power & error codes
    Dimensions (H X W X L)3.5 x 8.7 x 12.2" (89 x 220 x 310 mm)
    Weight6.5 lb (3.0 kg)
    Regulatory
    SafetyUL458 with marine supplement 01 (R2006) - General Use Power Supplies. CSA 107.1
    EMCFCC Part 15, Class A
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
