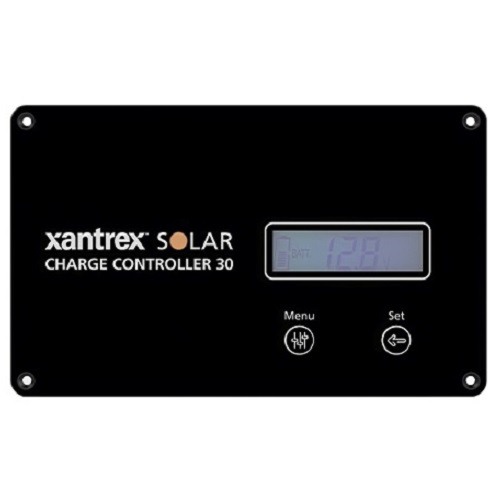

Buy Xantrex 709-3024-01, 30A PWM Charge Controller

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: PVM

Features:

Maintenance-free, rene-wable solutions to maximize battery life & prolong power supply
Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate
Best-in-class PV array and battery protections
Aesthetic flush-mount industrial design
Designed to charge lithium-ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.

Applications:

Recreational Vehicles
Heavy Duty Trucks
Marine
Work Trucks
Specialty Vehicles

Clean Design, Easy-to-use, Perfect for Beginner Solar Systems

The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, or truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD providing real-time system data.

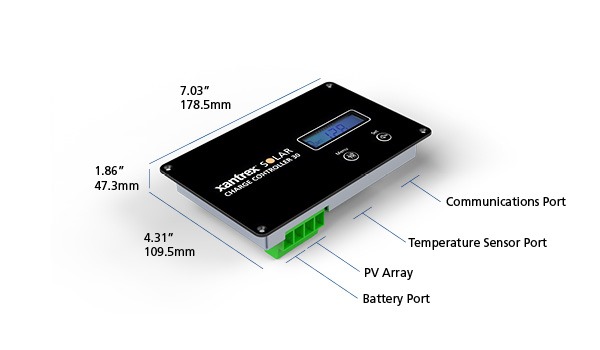

Dimensions:

dimensions

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Electrical Specifications

Nominal System Voltage

12/24V Auto-Detect

Battery Input Voltage Range

8V to 32V

Rated Charge Current

30A

Max. PV Short Circuit Current

30A

Max. PV Open Circuit Voltage

50V

Battery Types Supported

Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO )

Self-consumption

12V: 4.2mA
24V: 2.6mA

Temperature Compensation Coefficient

-3mV/°C/2V

Grounding

Common negative

Environmental

Storage Temperature Range

-30°C to 80°C

Operating Temperature Range

-20°C to 55°C (fully rated output)

Relative Humidity

95%, N.C.

Enclosure Protection

IP30

Mechanical

Dimensions

7.03" W x 4.31" H x 1.86" D (178.5mm W x 109.4mm H x 47.3mm D)

Net Weight

0.68lbs / 0.31kg

Max. Cable Size (PV Array and Battery)

0.63in² (16mm²) / 6AWG

Recommended Cable Size

0.24in² (6mm2) / 10AWG or larger

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Electrical Specifications

Nominal System Voltage

12/24V Auto-Detect

Battery Input Voltage Range

8V to 32V

Rated Charge Current

30A

Max. PV Short Circuit Current

30A

Max. PV Open Circuit Voltage

50V

Battery Types Supported

Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO )

Self-consumption

12V: 4.2mA
24V: 2.6mA

Temperature Compensation Coefficient

-3mV/°C/2V

Grounding

Common negative

Environmental

Storage Temperature Range

-30°C to 80°C

Operating Temperature Range

-20°C to 55°C (fully rated output)

Relative Humidity

95%, N.C.

Enclosure Protection

IP30

Mechanical

Dimensions

7.03" W x 4.31" H x 1.86" D (178.5mm W x 109.4mm H x 47.3mm D)

Net Weight

0.68lbs / 0.31kg

Max. Cable Size (PV Array and Battery)

0.63in² (16mm²) / 6AWG

Recommended Cable Size

0.24in² (6mm2) / 10AWG or larger

Note

Note: Please read description carefully. Do not base your order on the picture presented.
