Watec 902HB2S EIA Board Type Cameras, 570 TVL, Internal, 0.0003 Lx

  • Brand Watec
  • Part # 902HB2S EIA
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

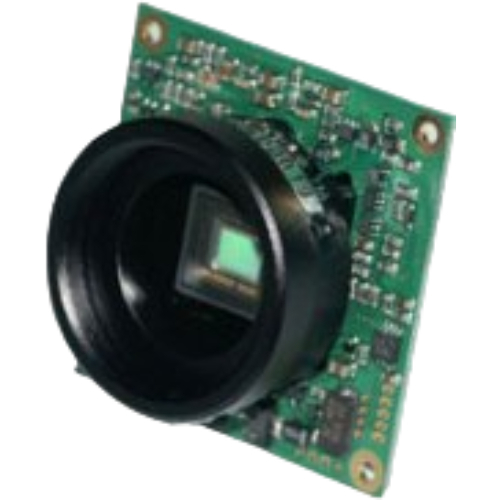

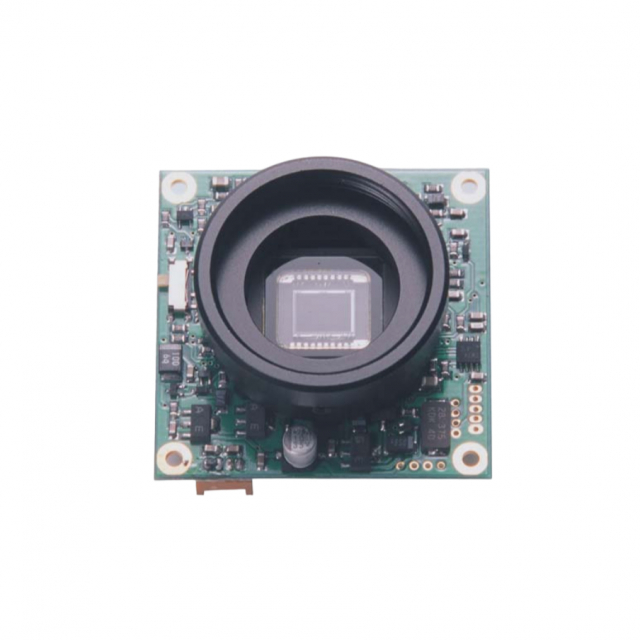

Super High Sensitivity Adjacent to Near Infra-Red Ray Exposed Single PC Board. This is 1/2 CCD, 0.0003lux, 40x40mm, extremely low light monochrome board camera, PERFECT for covert installations and systems integration where low light viewing is your goal. Unlike some of other options, this camera is set for easy installs and does not offer access to OSD or other functionality settings, making it a great fit for those situations where simplicity in extreme low light viewing is your goal.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews
Pick-Up Element1/2" interline transfer CCD image sensor
Number of Total Pixels811(H) x 508(V)
Number of Effective Pixels768(H) x 494(V) (EIA)
Unit Cell Size8.4µm(H) x 9.8µm(V)
Scanning System2:1 interlace
Synchronizing SystemInternal
Video OutputComposite video, １V p-p, 75Ω unbalanced
Resolution (Horizontal)570 TVL (center)
Minimum Illumination0.0003 lx. F1.4
Gamma Correctionγ=0.45(ON) (option: γ=1.0(OFF))
AGCHI: 5～50dB, LO: 5～32dB (option: OFF=5dB)
S/N Ratio50dB (AGC OFF)
AE ModeEI=(1/60～1/100,000(EIA) or 1/50～1/100,000(NTSC)), (Option: ES=OFF(1/60(EIA), 1/50(CCIR)), FL, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, or 1/100000)
Back Light CompensationON/OFF
Connection TerminalPower, Video out, GND
Power SupplyDC10V～14V (DC12V±15％ recommended)
Current160mA (Max.190mA w/ AI lens)
Operating Temperature-10 °C ～ +40 °C (w/o condensation)
Storage Temperature-30 °C ～ +70 °C (w/o condensation)
Dimensions40.0(W) x 40.0(H) x 17.0(D)mm (projections not included)
WeightApprox. 25g
Product Details
Pick-Up Element1/2" interline transfer CCD image sensor
Number of Total Pixels811(H) x 508(V)
Number of Effective Pixels768(H) x 494(V) (EIA)
Unit Cell Size8.4µm(H) x 9.8µm(V)
Scanning System2:1 interlace
Synchronizing SystemInternal
Video OutputComposite video, １V p-p, 75Ω unbalanced
Resolution (Horizontal)570 TVL (center)
Minimum Illumination0.0003 lx. F1.4
Gamma Correctionγ=0.45(ON) (option: γ=1.0(OFF))
AGCHI: 5～50dB, LO: 5～32dB (option: OFF=5dB)
S/N Ratio50dB (AGC OFF)
AE ModeEI=(1/60～1/100,000(EIA) or 1/50～1/100,000(NTSC)), (Option: ES=OFF(1/60(EIA), 1/50(CCIR)), FL, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, or 1/100000)
Back Light CompensationON/OFF
Connection TerminalPower, Video out, GND
Power SupplyDC10V～14V (DC12V±15％ recommended)
Current160mA (Max.190mA w/ AI lens)
Operating Temperature-10 °C ～ +40 °C (w/o condensation)
Storage Temperature-30 °C ～ +70 °C (w/o condensation)
Dimensions40.0(W) x 40.0(H) x 17.0(D)mm (projections not included)
WeightApprox. 25g
Note

Note: Please read description carefully. Do not base your order on the picture presented.
