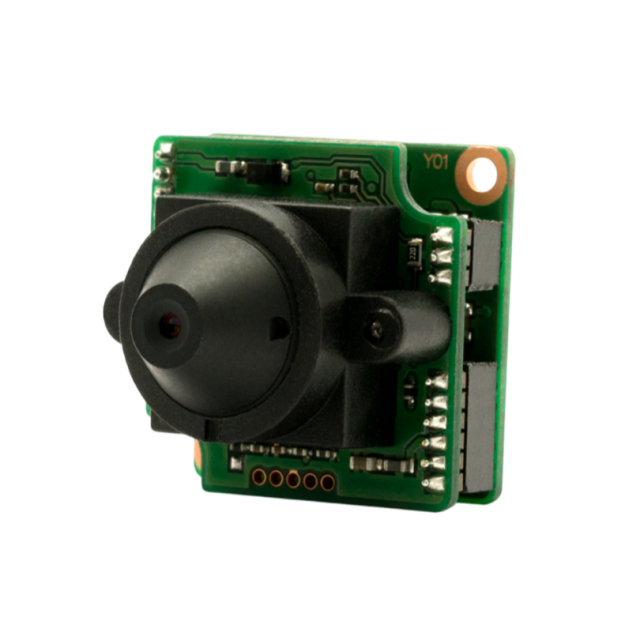

Buy Watec 1100MBD P3.3 NTSC, Color Day/Night Board Camera, 1/3.2 BSI, NTSC

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Video Standard:: Video Standard: NTSC

Features:

Ultra-compact design only 23 x 23 x 25 mm
Wide dynamic range, ICR Mechanical less Day/Night function
Advanced setting by OSD (On Screen Display) through an optional controller

The WAT-1100MBD P3.3 is Watec's high resolution (750TVL), low light, day/night solution provided to you in an ultra miniature package with conical pinhole lens. At 23x23mm this mini day/night camera has OSD interface allowing you to customize the camera features making it compatible with nearly all applications. Its small size and application adaptability, make this camera perfect for systems integration and concealment.

For more information, please see Product Manual

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Video Standard

NTSC

Pick-Up Element

1/3.2 inch BSI CMOS image sensor

Number of Effective Pixels

1280(H)x960(V)

Unit Cell Size

3.5µm(H) x 3.5µm(V)

Imaging System

RGB+W array mosaic filters on chip

Synchronizing System

Internal

Scanning System

Progressive

Video Output

Composite: 1.0 V(p-p) 75Ω (Unbalanced)

Resolution (H)

More than 750TVL (Center)

Minimum Illumination

0.005 lx F1.8 (AGC=54dB)

S/N

More than 55dB (AGC=OFF, γ=1.0)

Function Settings

OSD (On Screen Display) operated by remote controller

White Balance

ATW, PUSH, USER1, USER2, MANUAL, PUSH LOCK

AGC

0 - 54dB

MGC

MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX dB

Day/Night

ICR mechaless Day/Night

Gamma Characteristics

γ=0.45

Noise Reduction

2DNR ON (Level adjustable)

Wide Dynamic Range

Mutiple exposure WDR: ON (Level selectable) / OFF
ATR: ON (Level selectable) / OFF

Lens Iris

Back Light Compensation

OFF / BLC / HLC

Defog

OFF / AUTO (Correction level selectable)

Privacy Mask

16 masks

Mirror Image

OFF / V-FLIP / H-FRIP / HV-FLIP

Sharpness

0 - 255 (SHARPNESS)

Power Supply

DC+5V - 12V

Power Consumption

0.72W (60mA) 12V

Operating Temperature

-10 - +50 °C

Storage Temperature

-30 - +70 °C

Operating / Storage Humidity

95% RH or less (Without condensation)

Lens Mount

M12 P=0.5

Standard Lens

3324B-12P(A) (f3.3 F2.4)

Weight

Approx. 8g

Accessories

4P cable, 2P cable

AE Mode

Fixed

1/60 sec.
1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec.

1/60 - 1/100000 sec.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Video Standard

NTSC

Pick-Up Element

1/3.2 inch BSI CMOS image sensor

Number of Effective Pixels

1280(H)x960(V)

Unit Cell Size

3.5µm(H) x 3.5µm(V)

Imaging System

RGB+W array mosaic filters on chip

Synchronizing System

Internal

Scanning System

Progressive

Video Output

Composite: 1.0 V(p-p) 75Ω (Unbalanced)

Resolution (H)

More than 750TVL (Center)

Minimum Illumination

0.005 lx F1.8 (AGC=54dB)

S/N

More than 55dB (AGC=OFF, γ=1.0)

Function Settings

OSD (On Screen Display) operated by remote controller

White Balance

ATW, PUSH, USER1, USER2, MANUAL, PUSH LOCK

AGC

0 - 54dB

MGC

MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX dB

Day/Night

ICR mechaless Day/Night

Gamma Characteristics

γ=0.45

Noise Reduction

2DNR ON (Level adjustable)

Wide Dynamic Range

Mutiple exposure WDR: ON (Level selectable) / OFF
ATR: ON (Level selectable) / OFF

Lens Iris

Back Light Compensation

OFF / BLC / HLC

Defog

OFF / AUTO (Correction level selectable)

Privacy Mask

16 masks

Mirror Image

OFF / V-FLIP / H-FRIP / HV-FLIP

Sharpness

0 - 255 (SHARPNESS)

Power Supply

DC+5V - 12V

Power Consumption

0.72W (60mA) 12V

Operating Temperature

-10 - +50 °C

Storage Temperature

-30 - +70 °C

Operating / Storage Humidity

95% RH or less (Without condensation)

Lens Mount

M12 P=0.5

Standard Lens

3324B-12P(A) (f3.3 F2.4)

Weight

Approx. 8g

Accessories

4P cable, 2P cable

AE Mode

Fixed

1/60 sec.
1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec.

1/60 - 1/100000 sec.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
