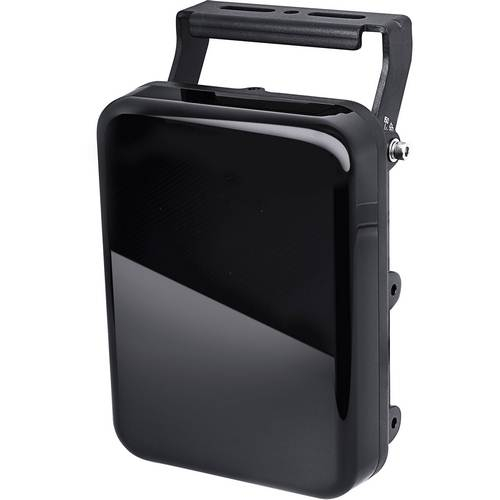

Vivotek CA80I8-2040 CA80 Series IR Illuminator, 850 nm IR Wavelength

  • Brand Vivotek
  • Part # CA80I8-2040
  • Model # CA80 Series
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    Share:
    Ask a question

    Optimize your surveillance camera's video performance in dark or low-light conditions with the CaMate CA80 Series CA80I8-2040 IR Illuminator from Vivotek. Equipped with a 24-LED array that emits IR light at a wavelength of 850nm, this illuminator uses Continuous Variable Angle Technology for motorized angle adjustments from 20 to 40°. The CA80I8-2040 offers an elliptical beam pattern for uniform distribution of illumination up to 918'. Designed for use in vandal-prone outdoor locations, it is housed in an IP68- and IK10-rated enclosure.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Beam AngleHorizontal: 20 to 40°
    Distance557 to 918' / 170 to 280 m
    Beam PatternElliptical
    LED Array24
    IR Wavelength850 nm
    External InputIR On/Off Control
    External OutputDay/Night Switching
    IR ControlAutomatic IR On/Off Controlled by Light Sensor
    Light Sensor Sensitivity1/5/10/30/50/100% (Default: 30%), Maximum 1000 Lux
    Accessed via Optional CaMate Remote or RS-485 Serial Control
    IR PowerAdjustable IR Power: 20 to 100%
    Accessed via Optional CaMate Remote or RS-485 Serial Control
    Power Input24 VDC ±10%, 24 VAC (50/60 Hz) ±10%
    Power ConsumptionMaximum 90 W
    Operating Temperature-40 to 122°F / -40 to 50°C
    Working Temperature-58 to 122°F / -50 to 50°C
    Maximum Humidity90%
    IP RatingIP68
    IK RatingIK10
    CertificationsIEC 62471, EN 50130-4, CE: EN 61000-6-3, EN 60598-1, EN 60598-2-5, FCC Class A, EN 60529
    Bracket SizeU-Type Bracket (Included): 5.3 x 1.3 x 3.2" / 134 x 34 x 81.5 mm
    Cable Length2.46' / 0.75 m (UL AWM)
    Dimensions8.6 x 6.3 x 2.9" / 220 x 160 x 73 mm
    Weight4.6 lb / 2.1 kg
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Beam AngleHorizontal: 20 to 40°
    Distance557 to 918' / 170 to 280 m
    Beam PatternElliptical
    LED Array24
    IR Wavelength850 nm
    External InputIR On/Off Control
    External OutputDay/Night Switching
    IR ControlAutomatic IR On/Off Controlled by Light Sensor
    Light Sensor Sensitivity1/5/10/30/50/100% (Default: 30%), Maximum 1000 Lux
    Accessed via Optional CaMate Remote or RS-485 Serial Control
    IR PowerAdjustable IR Power: 20 to 100%
    Accessed via Optional CaMate Remote or RS-485 Serial Control
    Power Input24 VDC ±10%, 24 VAC (50/60 Hz) ±10%
    Power ConsumptionMaximum 90 W
    Operating Temperature-40 to 122°F / -40 to 50°C
    Working Temperature-58 to 122°F / -50 to 50°C
    Maximum Humidity90%
    IP RatingIP68
    IK RatingIK10
    CertificationsIEC 62471, EN 50130-4, CE: EN 61000-6-3, EN 60598-1, EN 60598-2-5, FCC Class A, EN 60529
    Bracket SizeU-Type Bracket (Included): 5.3 x 1.3 x 3.2" / 134 x 34 x 81.5 mm
    Cable Length2.46' / 0.75 m (UL AWM)
    Dimensions8.6 x 6.3 x 2.9" / 220 x 160 x 73 mm
    Weight4.6 lb / 2.1 kg
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
