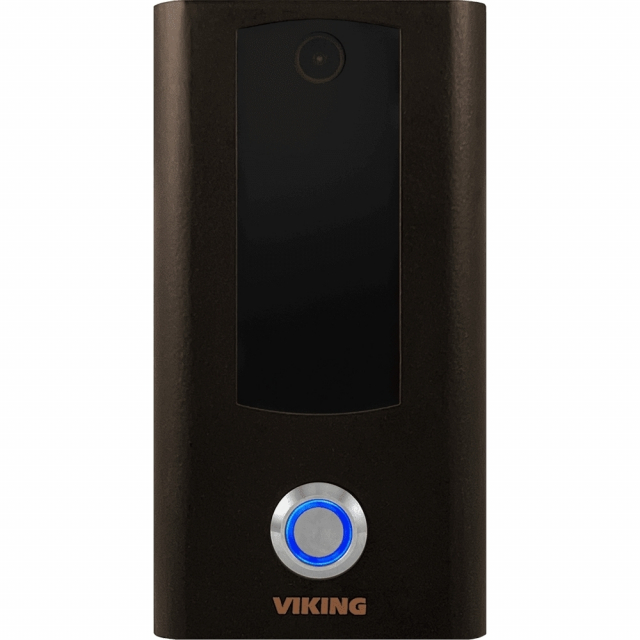

Viking, X-205-BN-EWP, X-205 Series Compact IP Entry Phone with HD Video, Oil Rubbed Bronze Surface Mount and Enhanced Weather Protection
Features:
- SIP compliant
- ONVIF Profile S compliant
- 126° wide viewing angle
- H.264 and MJPEG video encoding
- Up to 1080p SIP video calling
- Separate NVR stream with audio up to 1080p
- Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
- Remotely programmable via Web UI
- Gigabit Ethernet for up to 1000 Mbps
- 2 Amp relay contacts for door/gate or optional SL-2 strobe light (DOD 242)
- Blue backlit 316 stainless steel push button switch
- PoE powered (class 2, < 6.5 Watts)
- Network downloadable firmware
- Handsfree operation
- Vandal resistant stainless steel prevents corrosion
- Cycles through backup phone numbers on busy or no-answer
- Includes Enhanced Weather Protection (EWP), EWP products is designed to meet IP66 Ingress Protection Rating
- Extended temperature range of -40° F to 140° F
- Oil rubbed bronze finish
- Volume adjustments for microphone and speaker
- Surface mounts to a standard single gang electrical box (not included), or mount directly to a wall or flat sided post
- Diagnostics for testing microphone, speaker, and relay
Applications:
- Front Door
- Gate Entrance
- Parking ramps/lots
- ATM machines
- Medical centers
- Lobbies
- Entryways
- Stadiums
- Convention centers
- Public access areas
Certifications:
- EWP
- IP66
- Canada ICES
- FCC Part 15
- SIP
- ONVIF
The X-205-BN-EWP Compact IP Video Intercom is designed to provide HD video and reliable handsfree voice communication for SIP VoIP phone systems and service providers. The built-in IP video camera has H.264 video compression, low light sensitivity, a wide viewing angle of 126 degrees, and can output dual video streams of up to 1080p resolution.
The X-205-BN-EWP intercom can dial programmable numbers and be programmed remotely via a built-in Web UI. On-board 2 Amp relay contacts are provided for activating door strikes or gate controllers. The X-205-BN-EWP intercom will flash the blue LED during dialing and automatically light the LED when the call is answered. This intercom is PoE class 2 powered.
The X-205-BN-EWP intercom is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installation where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.
For more information, please see
User Manual
