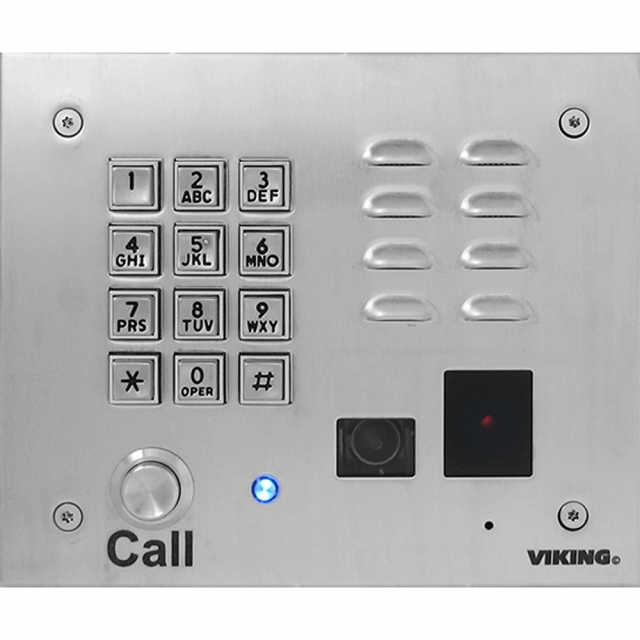

Viking, K-1775-IP-EWP, K-1775-IP Series VoIP Entry Phone System with Camera, Proximity Reader and Enhanced Weather Protection, Brushed Stainless Finish
Features:
- Built-in 125KHz 26-bit Wiegand proximity card reader with LED, beep card read confirmation, and EWP board protection
- Compatible with the following Viking Proximity Cards and Fobs: PRX-C, PRX-C-ISO and PRX-FOB (DOD 198)
- Built-in high resolution color video camera with wide viewing angle, tilt/swivel adjustments and wide operating temperature of -30°F to 150°F
- Vandal Resistant Features:
- 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics
- Stainless steel "Call" button
- Heavy duty metal keypad
- T-10 Torx security mounting screws
- Weather Resistant Features:
- Enhanced Weather Protection designed to meet IP66 Ingress Protection
- Marine grade 316 stainless steel faceplate, screws and push button switch
- Switch internally sealed per IP67
- Mylar speaker
- Self-draining mic mount
- Faceplate, mic and speaker gaskets
- Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
- Secure Remote Relay Control using Viking RC-4A, see DOD 582
- Blue "Call /Status" LED indicator
- SIP compliant
- PoE powered (class 2, <6.5 Watts)
- Automatic Noise Canceling (ANC) feature for operation in noisy environments
- Viking's proprietary VOX switching eliminates the need for "Push to Talk" mode
- Network downloadable firmware
- 26 Bit Wiegand input for adding a Viking proximity card reader
- 26 Bit Wiegand output connect to card reader input of an Access Control System
- Programmable to speed dial up to 250 numbers
- Cycles to roll over phone number on busy or no-answer
- Program up to 1,000 keyless entry codes
- Program up to 1,000 proximity card numbers
- Keyless entry codes and proximity card numbers can be programmed to only allow access at specific times and day of week
- Call logging with time and date stamp
- Hangs up on busy signal, time-out or touch tone command
- Extended temperature range (-40°F to 140°F)
- Volume adjustments for microphone and speaker
- Selectable auto-answer feature for monitoring
- Remotely programmable
- Network downloadable firmware
- Self diagnostics for testing com, mic, speaker, and switch
- Zinc plated steel rough-in box with (2) 0.75″ conduit knockouts included
- Flush mount using the included rough-in box or surface mount using a Viking VE-6x7 Surface Mount Box
Applications:
- Apartment Entry Phone
- Residential Gate Entrance
- Door Entry Phone
- Courtesy Assistance Phone
- Customer Service Phone
- Automated Teller (ATM) Phone
- Security or Emergency Phone
- Hot-Line Phone
- Kiosk Phone with up to 250 number speed dialing
- Use with any of Viking's Proximity Cards: PRX-C, PRX-C-ISO or PRX-FOB,
The K-1775-IP-EWP door entry system provides quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The vandal-resistant speaker phone features a built-in proximity reader and analog color video camera, making it ideal for apartment and residential door entry applications.
The K-1775-IP-EWP dials up to 250 programmable phone numbers and another 250 rollover numbers. It can also read up to 1,000 keyless door entry codes and/or proximity card/fob numbers and provide analog CCTV video of who is at your door or gate. For added security, the keyless entry codes and card numbers can be programmed to only allow access at a specific time and/or day of the week. The K-1775-IP-EWP VoIP entry phone can be programmed from any PC on the same LAN or remotely using a static IP address.
When a call initiated by the K-1775-IP-EWP is answered by an apartment or business tenant, a built-in relay contact may be activated to control an electric gate or doorstrike. The K-1775-IP-EWP includes a request for exit (REX) input and also offers activity logging.
The K-1775-IP-EWP is designed to be flush-mounted using the included rough-in box. Surface mount options are also available using Viking's VE-6x7 Series Surface Mount Boxes.
The K-1775-IP-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.
For more information, please see
User Manual
