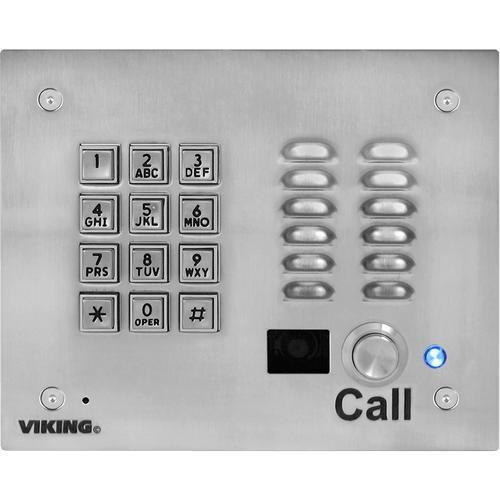

Viking K-1775-3-EWP Stainless Steel Keypad, Color Camera

  • Brand Viking
  • Part # K-1775-3-EWP
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    The K-1705-3-EWP - addition to Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

    Features:

    • Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze
    • Blue "in use" LED
    • Telephone line powered
    • Volume adjustments for microphone and speaker
    • Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
    • Selectable auto-answer feature for monitoring
    • Selectable push button disconnect Zinc plated steel rough-in box with (2) 3/4" conduit knockouts
    • Optional VE-6x7 Surface Mount Box available
    • Selectable VOX switching speed
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    DimensionsOverall
    Rough-in box4.5" x 5.5" x 2.5" (114mm x 140mm x 64mm)
    Shipping Weight3.5 lbs (1.6 kg)
    Operating Temperature-30°F to 150°F (-34°C to 65°C)
    Connections(2) gel-filled butt connectors (3M Scotchlok UR2)
    PowerTelephone line powered 20V DC/20mA minimum
    DimensionsOverall x 64mm (4.5" x 5.5" x 2.5")
    Shipping Weight1.6 kg (3.5 lbs)
    Speaker VolumeApproximately 70 db maximum at1m
    Ring Voltage25V AC RMS minimum (for auto answer)
    CPC Disconnect Time500ms minimum
    Power6-22V DC 150mA (12V DC UL Listed adapter included)
    Image Sensor1/4" color CMOS
    Video Output1 VP-P composite, NTSC, 75 ohms
    Resolution420 lines (640 x 480 at 30fps / 307,200 pixels)
    Sensitivity0.025 LUX (50 IRE) F 1.2 3200K
    Lens2.1mm, conical pinhole
    FOV (Field of View)80° Horizontal, 60° Vertical,100° Diagonal
    Tilt/Swivel AdjustmentVertical +/- 20°, horizontal +/- 30° (see Diagram A below)
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    DimensionsOverall
    Rough-in box4.5" x 5.5" x 2.5" (114mm x 140mm x 64mm)
    Shipping Weight3.5 lbs (1.6 kg)
    Operating Temperature-30°F to 150°F (-34°C to 65°C)
    Connections(2) gel-filled butt connectors (3M Scotchlok UR2)
    PowerTelephone line powered 20V DC/20mA minimum
    DimensionsOverall x 64mm (4.5" x 5.5" x 2.5")
    Shipping Weight1.6 kg (3.5 lbs)
    Speaker VolumeApproximately 70 db maximum at1m
    Ring Voltage25V AC RMS minimum (for auto answer)
    CPC Disconnect Time500ms minimum
    Power6-22V DC 150mA (12V DC UL Listed adapter included)
    Image Sensor1/4" color CMOS
    Video Output1 VP-P composite, NTSC, 75 ohms
    Resolution420 lines (640 x 480 at 30fps / 307,200 pixels)
    Sensitivity0.025 LUX (50 IRE) F 1.2 3200K
    Lens2.1mm, conical pinhole
    FOV (Field of View)80° Horizontal, 60° Vertical,100° Diagonal
    Tilt/Swivel AdjustmentVertical +/- 20°, horizontal +/- 30° (see Diagram A below)
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
