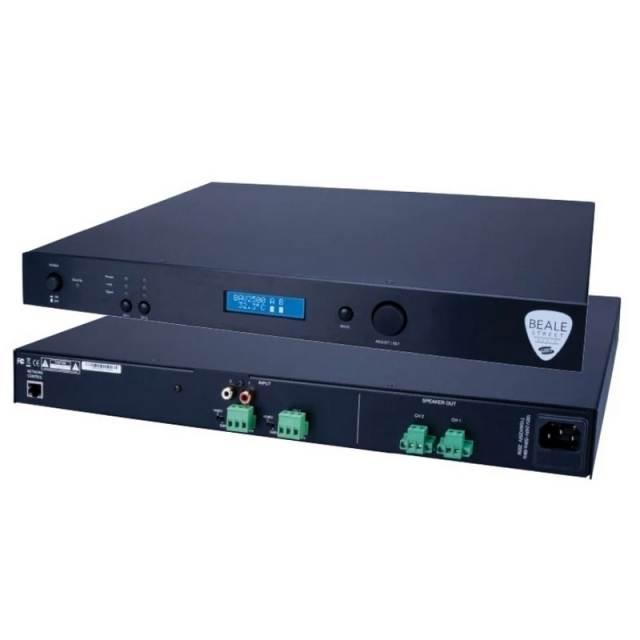

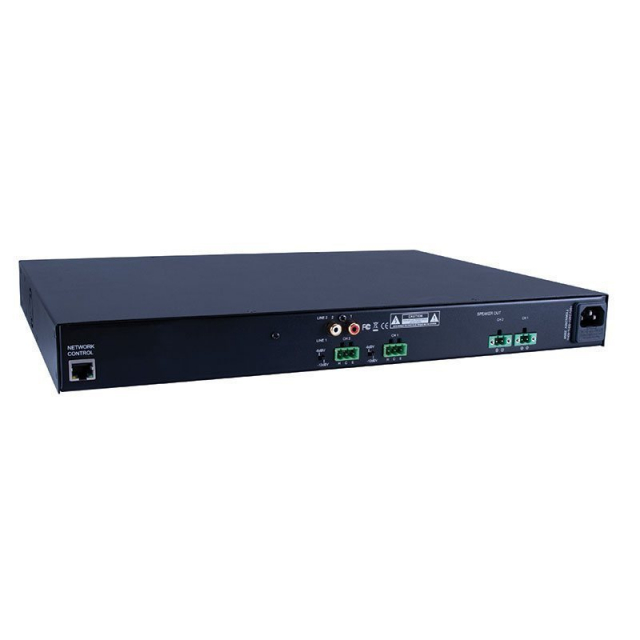

Vanco BAV2500 Beale Street Audio 1000W 2 Channel Amplifier

BAV2500 Includes Only:

• 2 Channel Amplifier
• 3-Pin Terminal x 2
• 2-Pin Terminal x 2
• Rack mounting brackets x 2
• Mounting bracket screws x 4
• Power Cord
• Product Manual

Features:

• 500W per channel output
• 2 balanced and unbalanced analog audio inputs
• 2 output channels
• Compatible with 4/8 ohm and 70/100V speakers and systems
• Controllable via front panel and IP
• Browser based GUI for easy setup and control
• Matrix mode allowing any source to be routed to any output channel
• Any source(s) can be mixed or individually selected to any output channel
• Digital Signal Processing (DSP) to completely customize audio performance and experience
• Parametric Equalizer to adjust bass, treble, notch, LPF and HPF
• Rack Mountable with accessories included
• CE, FCC, ICES-3 Ratings
• TAA Compliant
• High efficiency, low noise universal power supply (100~240VAC, 50/60Hz)

The BAV2500 amplifier can be configured for 4/8 ohm zones, it can also be configured 70/100V or can be configured for any combination of 4/8 ohm and 70/100V zones all at the same time! Have one zone delivering 8 ohm, while a separate zone delivering 70V, simultaneously.Each zone can be controlled by the sleek front panel or over TCP/IP for ON/OFF, Input, Volume/Mute, Treble/Bass and Left/Right Balance. Once connected to a network, the browserbased GUI allows for full control, monitoring, and DSP to adjust nearly any aspect of the audio being output.The BAV2500 amplifier is a two-channel digital professional audio amplifier which can be set to 4/8 ohm, 70V or 100V outputs and provides up to 500W per channel. There are 2 inputs which are balanced (3-conductor connector) or unbalanced (RCA) which can be matrixed and sent to the 2 outputs. The BAV2500 has a 100~240 VAC allowing it to be used just about anywhere there is AC Voltage. And of course, it's rack mountable and comes with removable rack ears.

For more information, please see Data Sheet and User Manual
