Buy Uniview UAC-T124-AF40LM, 4MP LightHunter Fixed IR Turret Analog Camera

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Focal Length (mm):: Focal Length (mm): 4

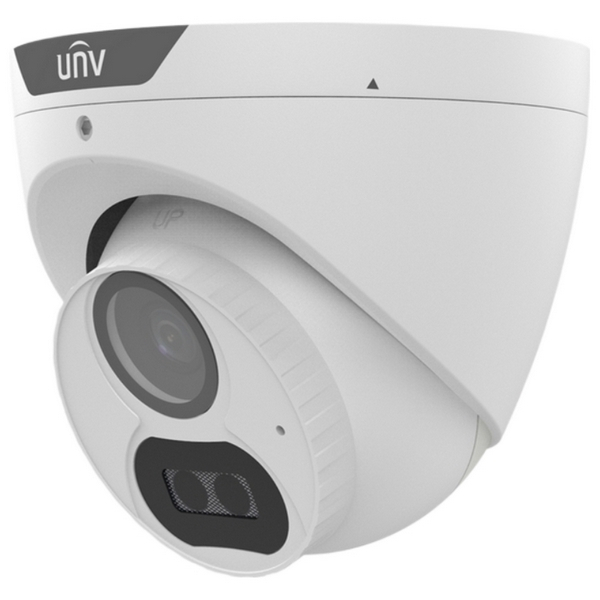

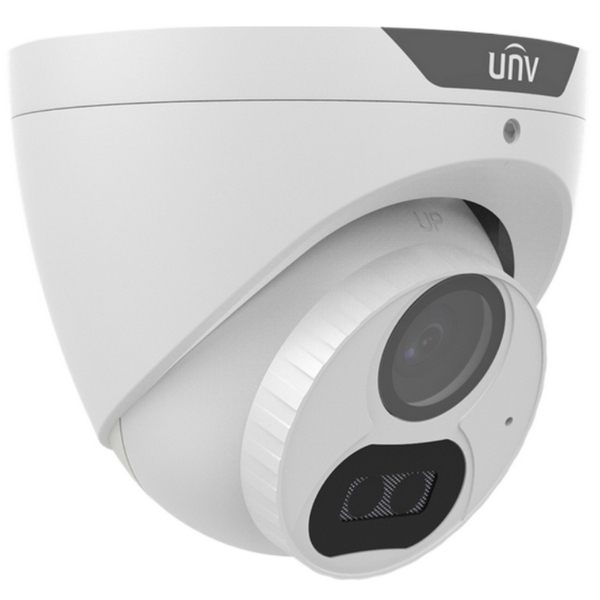

Uniview, UAC-T124-AF40LM, 4MP LightHunter Fixed IR Turret Analog Camera, 4 mm Lens

Features:

High quality imaging with 4MP resolution
4 mm Lens
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
3-Axis

For more information, please see pdf file User Manual

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Sensor

Pixel

4MP

Sensor Size

1/3.0" CMOS

Min. Illumination

0.005 lux (F1.6, AGC ON)
0 lux (IR on)

Lens

Focus

4.0 mm

Lens Mount

M12

Angle of View (H)

81.1°

Angle of View (V)

41.0°

Angle of View (D)

94.4°

Illuminator

Illuminator Number

Two IR illuminators

Illumination Distance

40m

Lifetime

≥60000 hours

Video

Resolution

4MP: 2560 (H) x 1440 (V)
1080P: 1920 (H) x 1080 (V)

Frame Rate

TVI: 4MP at 25fps (default), 4MP at 30fps,1080P at 25fps, 1080P at 30fps
AHD: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVI: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s-1/50000s
NTSC: 1/30s-1/50000s


Exposure Mode

Four modes: Global(default), BLC, HLC, DWDR

Day/Night

Three modes: Auto (default), Day, Night

Digital Noise Reduction

White Balance

Two modes: Auto (default), Manual

WDR

DWDR

Smart IR

Support

Flip

Supports 180°horizontal flip, 180°vertical flip

Audio

Built-in Mic

Support

Camera Audio

TVI: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVI: 4MP at 25fps, 4MP at 30fps

Interface

Power Interface

5.5 mm Power Interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS

Operating Environment

Temperature

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity

≤95% RH (non-condensing)

Surge Protection

4kV for power, 4kV for video output interfaces

Ingress Protection

IP67

General

Power

DC12Vplusmn;25%

Power Consumption

MAX 3.5W

Mount

Wall Mount, Pole Mount, Corner Mount, Pendant Mount

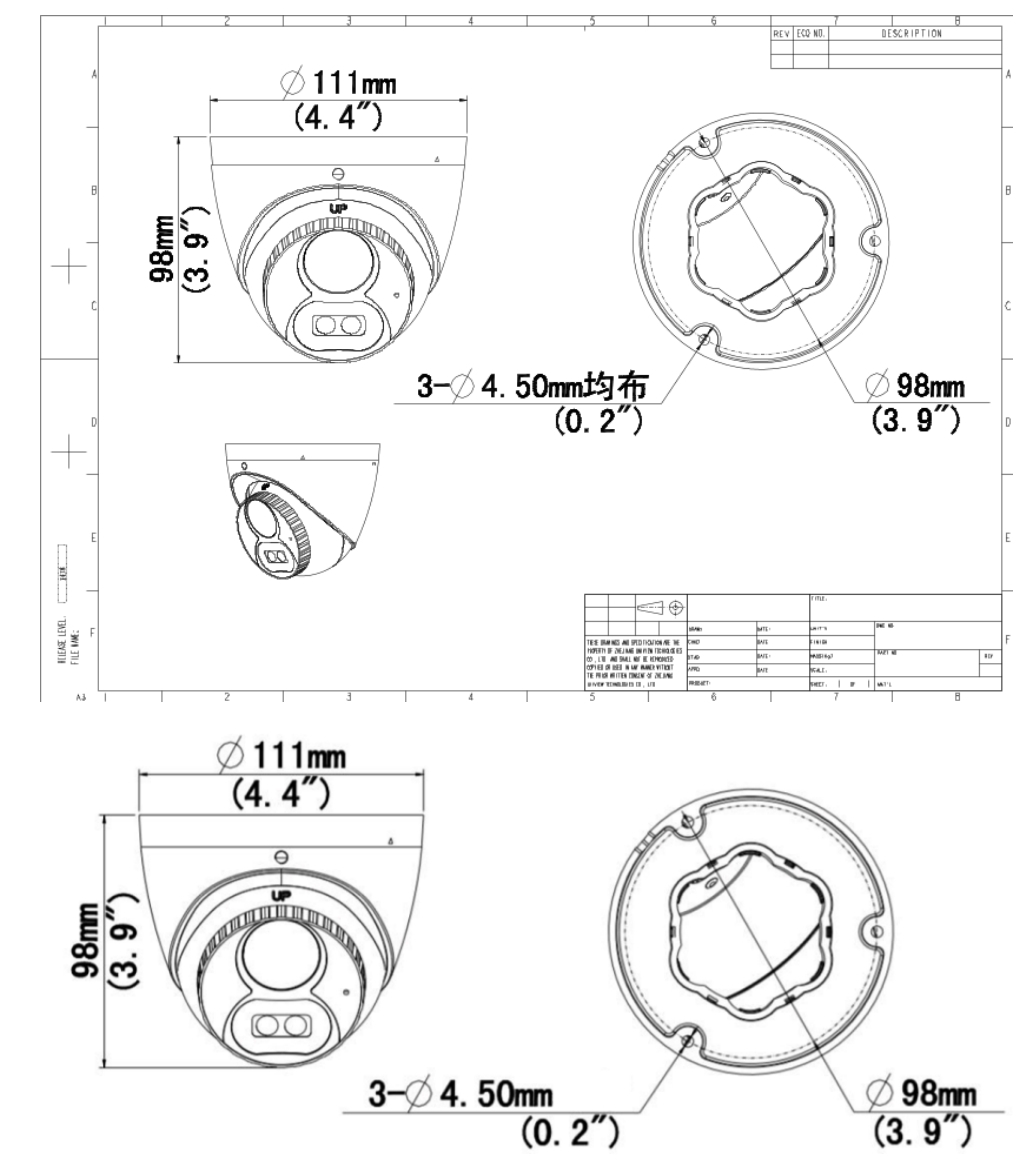

Dimensions

Φ111mm*96mm (diameter*height)

Material

Metal + Plastic

Weight

334g(0.74lb)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Sensor

Pixel

4MP

Sensor Size

1/3.0" CMOS

Min. Illumination

0.005 lux (F1.6, AGC ON)
0 lux (IR on)

Lens

Focus

4.0 mm

Lens Mount

M12

Angle of View (H)

81.1°

Angle of View (V)

41.0°

Angle of View (D)

94.4°

Illuminator

Illuminator Number

Two IR illuminators

Illumination Distance

40m

Lifetime

≥60000 hours

Video

Resolution

4MP: 2560 (H) x 1440 (V)
1080P: 1920 (H) x 1080 (V)

Frame Rate

TVI: 4MP at 25fps (default), 4MP at 30fps,1080P at 25fps, 1080P at 30fps
AHD: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVI: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s-1/50000s
NTSC: 1/30s-1/50000s


Exposure Mode

Four modes: Global(default), BLC, HLC, DWDR

Day/Night

Three modes: Auto (default), Day, Night

Digital Noise Reduction

White Balance

Two modes: Auto (default), Manual

WDR

DWDR

Smart IR

Support

Flip

Supports 180°horizontal flip, 180°vertical flip

Audio

Built-in Mic

Support

Camera Audio

TVI: 4MP at 25fps, 4MP at 30fps,1080P at 25fps, 1080P at 30fps
CVI: 4MP at 25fps, 4MP at 30fps

Interface

Power Interface

5.5 mm Power Interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS

Operating Environment

Temperature

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity

≤95% RH (non-condensing)

Surge Protection

4kV for power, 4kV for video output interfaces

Ingress Protection

IP67

General

Power

DC12Vplusmn;25%

Power Consumption

MAX 3.5W

Mount

Wall Mount, Pole Mount, Corner Mount, Pendant Mount

Dimensions

Φ111mm*96mm (diameter*height)

Material

Metal + Plastic

Weight

334g(0.74lb)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
