| Sensor |
| Pixel | 8MP |
| Sensor Size | 1/2.7" CMOS |
| Min. Illumination | - 0.005 lux (F1.4, AGC ON)
- 0 lux (white light on)
|
| Lens |
| Focus | 4.0 mm |
| Lens Mount | M12 |
| Angle of View (H) | 86.8° |
| Angle of View (V) | 49.4° |
| Angle of View (D) | 99.9° |
| Illuminator |
| Illuminator Number | Two IR illuminators |
| Illumination Distance | 40m |
| Lifetime | ≥60000 hours |
| Video |
| Resolution | - 4K: 3840(H) x 2160(V)
- 5MP at 20fps: 2592(H)x1944(V); 5MP at 12.5fps: 2592(H)x1944(V)
- 4MP: 2560(H)x1440(V)
|
| Frame Rate | - CVI: 4K at 15fps (default), 5MP at 20fps, 4MP at 25fps, 4MP at 30fps
- TVI/AHD: 4K at 15fps, 5MP at 20fps, 4MP at 25fps, 4MP at 30fps
- CVBS: PAL, NTSC
|
| Shutter Time | - PAL: 1/25s-1/50000s,
- NTSC: 1/30s-1/50000s
|
| Image |
| Exposure Mode | Four modes: Global(default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D/3D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | 120dB WDR |
| Smart IR | Support |
| Flip | Supports 180°horizontal flip, 180°vertical flip |
| Audio |
| Built-in Mic | Support |
| Camera Audio | CVI: 4K at 15fps, 5MP at 20fps, 4MP at 25fps, 4MP at 30fps |
| Interface |
| Power Interface | 5.5 mm Power Interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment |
| Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity | ≤95% RH (non-condensing) |
| Surge Protection | 4kV for power, 4kV for video output interfaces |
| General |
| Power | DC12Vplusmn;25% |
| Power Consumption | MAX 4.8W |
| Mount | Corner Mount, Pole Mount |

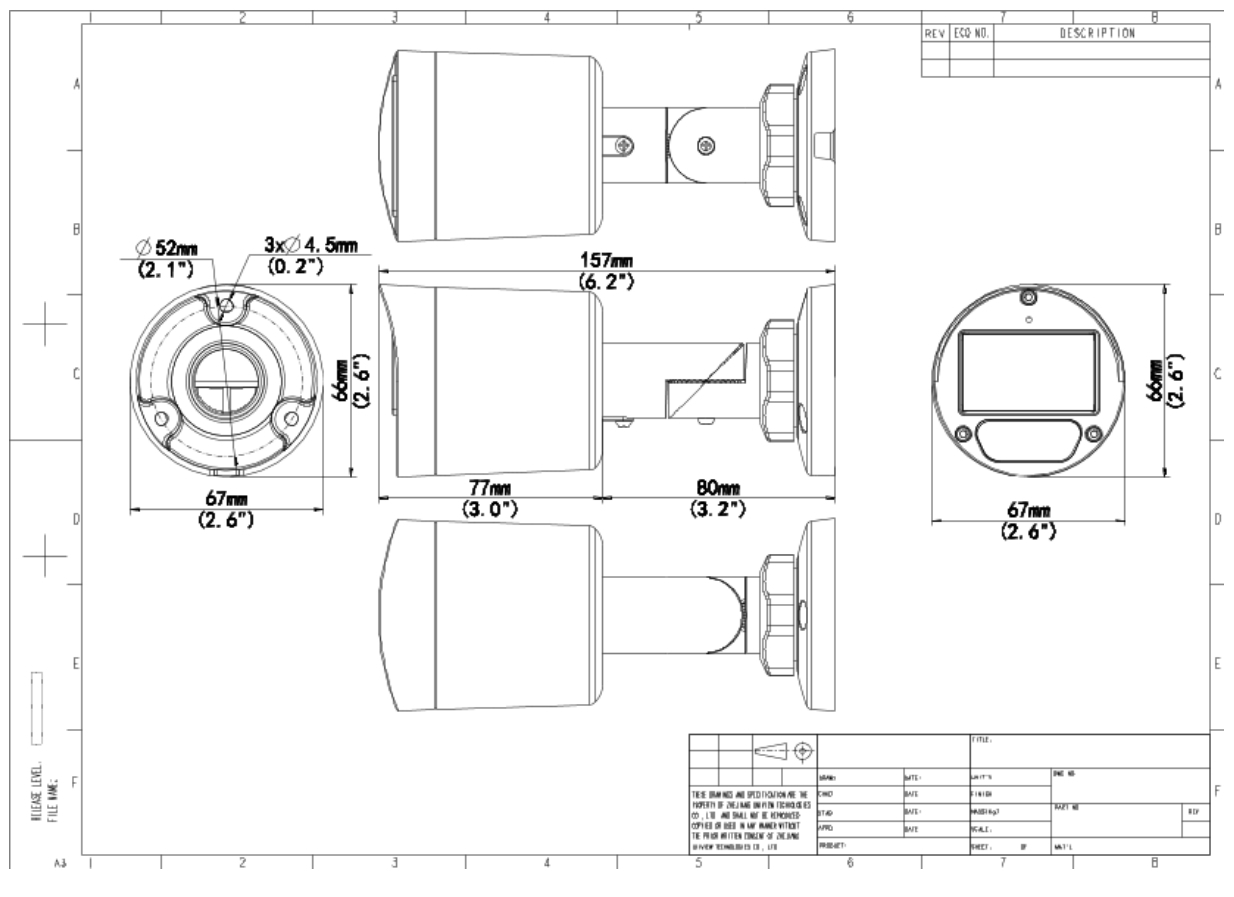

| Dimensions | 157mm*67mm*66mm (L*W*H) |
| Material | Metal |
| Weight | 300g(0.67lb) |
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529 |
 |
