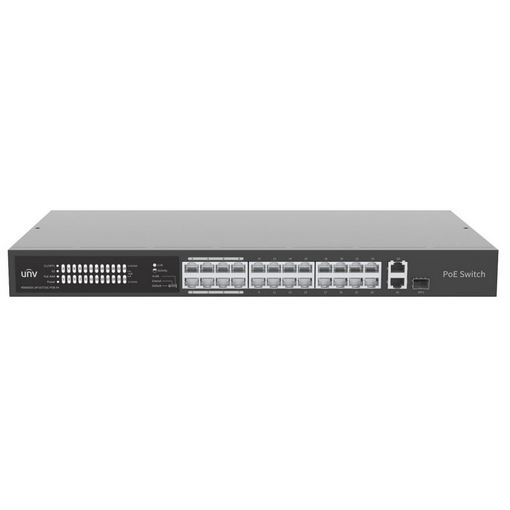

Buy Uniview NSW2020-24T1GT1GC-POE-IN, Ethernet 24PoE Switch

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Ports:: Ports: 24x100Mbps PoE

Features:

Multiple working modes to address your business needs:Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Ports

24x100Mbps PoE ports (RJ45) + 1x1000Mbps Gigaethernet ports +1x1000Mbps Combo ports

Standards

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x,
I EEE802.3af, IEEE802.3at, IEEE802.3az

Switching capacity

8.8Gbps

Forwarding Performance

6.55Mpps

Packet Buffer

4M bit

MAC

16K

Dimensions (WxDxH)

440*224.8*44mm

Weight

<2.93kg

Power supply

AC: 100-240V, 50/60Hz

PoE

802.3at/af

Max. PoE Power

Max capacity: 370W
Max capacity for single port: 30W

Prior Ports

1~8

Cooling Fans

Operating Temperature

0°C-40°C (32°F-104°F)

Operating Humidity

10%～90% (noncondensing)

Storage Humidity

5%～90% (noncondensing)

Indicator

PWR:

Steady on: AC input is normal
Off: No AC input

PoE:

Off: No PoE power supply
Steady on: PoE power supply is normal

PoE-MAX：

Off：The POE power supply power of the whole machine is less than 80% of the specification
Steady on: The POE power supply power of the whole machine is greater than 85% of the specification

LINK/ACT:

Off: No linkSteady: Linked at 10/100Mbps
Flashing: Transmitting data

Working Mode

Default (Normal mode): All ports can communicate with each other.
VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND (Surveillance mode): Transmission distance up to 250 meters.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Ports

24x100Mbps PoE ports (RJ45) + 1x1000Mbps Gigaethernet ports +1x1000Mbps Combo ports

Standards

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x,
I EEE802.3af, IEEE802.3at, IEEE802.3az

Switching capacity

8.8Gbps

Forwarding Performance

6.55Mpps

Packet Buffer

4M bit

MAC

16K

Dimensions (WxDxH)

440*224.8*44mm

Weight

<2.93kg

Power supply

AC: 100-240V, 50/60Hz

PoE

802.3at/af

Max. PoE Power

Max capacity: 370W
Max capacity for single port: 30W

Prior Ports

1~8

Cooling Fans

Operating Temperature

0°C-40°C (32°F-104°F)

Operating Humidity

10%～90% (noncondensing)

Storage Humidity

5%～90% (noncondensing)

Indicator

PWR:

Steady on: AC input is normal
Off: No AC input

PoE:

Off: No PoE power supply
Steady on: PoE power supply is normal

PoE-MAX：

Off：The POE power supply power of the whole machine is less than 80% of the specification
Steady on: The POE power supply power of the whole machine is greater than 85% of the specification

LINK/ACT:

Off: No linkSteady: Linked at 10/100Mbps
Flashing: Transmitting data

Working Mode

Default (Normal mode): All ports can communicate with each other.
VLAN (Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND (Surveillance mode): Transmission distance up to 250 meters.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
