Buy Uniview IPC3634SS-ADZK-I1, 4MP HD IR VF Eyeball Network Camera

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Sensor:: Sensor: 1/3", 4.0 Megapixel

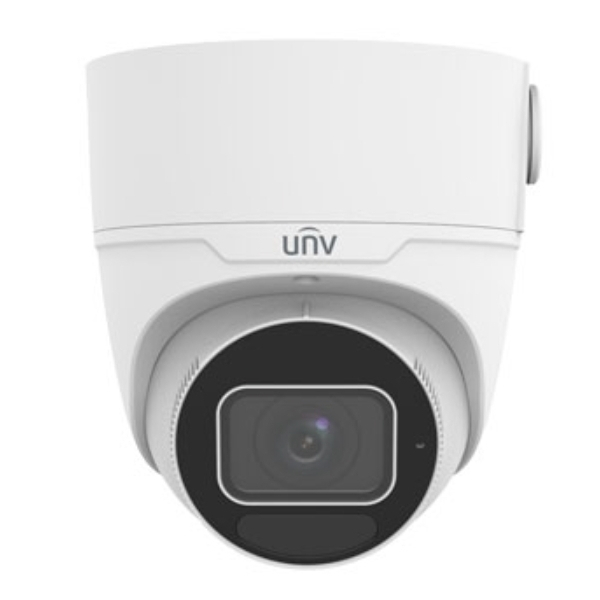

Uniview, IPC3634SS-ADZK-I1, 4MP HD LightHunter Intelligent IR VF Eyeball Network Camera

Features:

High quality image with 4MP 1/3"CMOS sensor
4MP (2688*1520) at 30/25fps; 4MP (2560*1440) at 30/25fps; 3MP (2304*1296) at 30/25fps; 2MP (1920*1080) at 30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
Intelligent People Flow Counting and Crowd Density Monitoring
Smart intrusion prevention with Color retrieval
Auto Scene Match (ASM)(Only WDR)
LightHunter technology ensures ultra-high image quality in low illumination environment
130dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic
Smart IR up to 40m (131ft) IR distance
Supports 512 Gb Micro SD card
IK10 vandal resistant and IP67 protection

For more information, please see pdf file User Manual

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Camera

Sensor

1/3", 4.0megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.002lux (F1.2, AGC ON) 0 lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Adjustment angle

Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Rotate: 0° ~ 360°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

S/N

>56dB

WDR

130dB

Lens

2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens

Iris

Fixed

Field of View (H)

103.8°~29.7°

Field of View (V)

56.7°~16.7°

Field of View (D)

108.3°~33.7°

DORI Distance

Lens (mm)

2.7
13.5

Detect (m)

60.8
303.8

Observe (m)

24.3
121.5

Recognize (m)

12.2
60.8

Identify (m)

6.1
30.4

Illuminator

IR Range

Up to 40m (131ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profil

Frame Rate

Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6144Kbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Triple streams


Auto Scene Match (ASM)

Support(Only WDR)

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise

BLC

Support

HLC

Support

Defog

Digital Defog

Intelligent

Smart intrusion prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Attribute Collection

SIP with color retrieval

Events

Basic Detection

Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 512GB

Network Storage

ANR, NAS (NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T)
API
SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Built-in Mic

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

Certification

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)
IK10 (IEC 62262)

General

Power

DC 12Vplusmn;25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W

Power Interface

Ø 5.5mm coaxial power plug

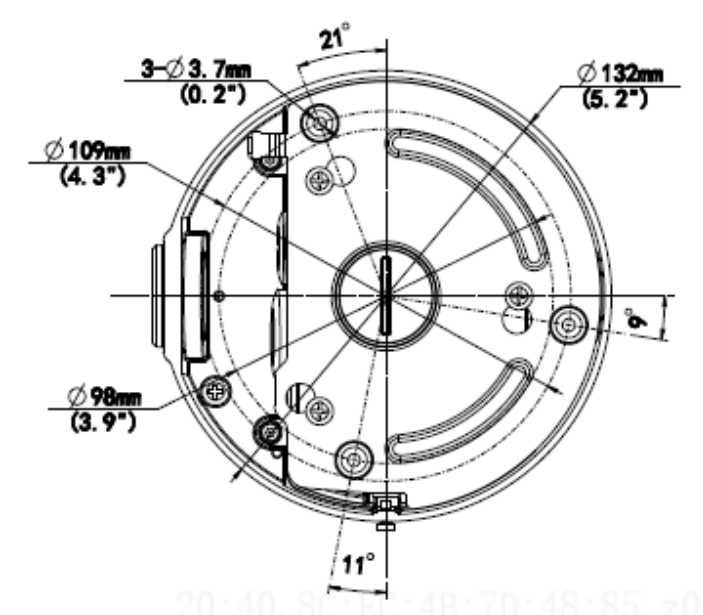

Dimensions (Ø x H)

Φ132 x 147mm (Ø5.2” x 5.8”)

Weight

0.99kg (2.18lb)

Material

Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Reset Button

Support

Web Client Language

20 Languages:

Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Camera

Sensor

1/3", 4.0megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.002lux (F1.2, AGC ON) 0 lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Adjustment angle

Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Rotate: 0° ~ 360°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

S/N

>56dB

WDR

130dB

Lens

2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens

Iris

Fixed

Field of View (H)

103.8°~29.7°

Field of View (V)

56.7°~16.7°

Field of View (D)

108.3°~33.7°

DORI Distance

Lens (mm)

2.7
13.5

Detect (m)

60.8
303.8

Observe (m)

24.3
121.5

Recognize (m)

12.2
60.8

Identify (m)

6.1
30.4

Illuminator

IR Range

Up to 40m (131ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profil

Frame Rate

Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~6144Kbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Triple streams


Auto Scene Match (ASM)

Support(Only WDR)

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise

BLC

Support

HLC

Support

Defog

Digital Defog

Intelligent

Smart intrusion prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Attribute Collection

SIP with color retrieval

Events

Basic Detection

Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 512GB

Network Storage

ANR, NAS (NFS)

Network

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T)
API
SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Built-in Mic

Support

Network

1 * RJ45 10M/100M Base-TX Ethernet

Certification

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)
IK10 (IEC 62262)

General

Power

DC 12Vplusmn;25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (Ø x H)

Φ132 x 147mm (Ø5.2” x 5.8”)

Weight

0.99kg (2.18lb)

Material

Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Reset Button

Support

Web Client Language

20 Languages:

Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Note

Note: Please read description carefully. Do not base your order on the picture presented.
