MS100-NUCB00-SG Includes Only:

Scanner
USB Cable

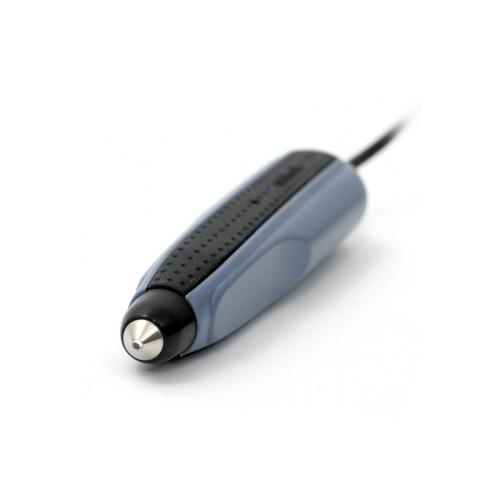

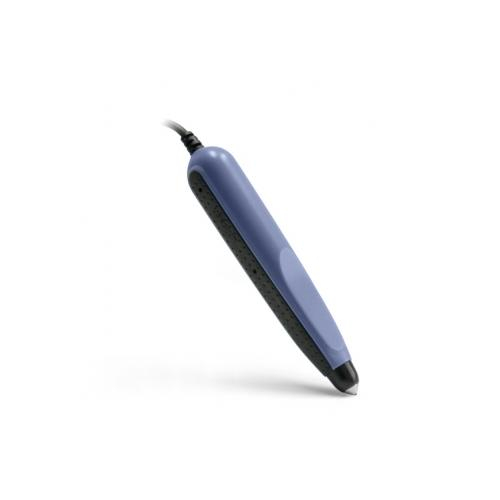

The MS100 is a wand/pen barcode scanner, an ergonomic and compact device best suited for low-volume applications. It's likely that a wand barcode scanner such as the MS100 offers the best form factor for your application. As the least expensive type of barcode scanner in the market, there's a lot to be said about the lasting value of a wand barcode scanner.

Features with all optional accessories:

Reads all common 1D barcodes
Plug and Play
Multiple interface options
Ergonomic grip

Application:

Check-In / Check-Out
Light Inventory
Ballot Entry Tracking

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Light Source	650 ~ 660nm Red LED
Receiving Device	Photo Sensor
Depth of field	0.04"
Resolution	5 mils
Print Contrast	0.6 minimum
Scan Rate	4 - 24 inches/sec
Reading Angle	45 to 90 degree
Ambient Light	5000 Lux/Max
Types	Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar
Interface	USB, Keyboard wedge, RS232, TTL (undecoded)
Scanner Dimensions	Length: 5.5 in. / Diameter: 1.2 in. x 0.9 in. Length: 140 mm. / Diameter: 30 mm. x 23 mm.
Scanner Weight	2.7 oz. / 76.5 g
Cable Length	71 in. / 180 cm.
Case Material	ABS plastic
Supply Voltage	5V DC 10%
Surge Power	< 800mA
Working Current	60mA 10mA
Operating Temperature	32°F to 122°F
Storage Temperature	-4°F to 140°F
Humidity	20% to 85% RH non-condensing
Drop Specification	Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Light Source	650 ~ 660nm Red LED
Receiving Device	Photo Sensor
Depth of field	0.04"
Resolution	5 mils
Print Contrast	0.6 minimum
Scan Rate	4 - 24 inches/sec
Reading Angle	45 to 90 degree
Ambient Light	5000 Lux/Max
Types	Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar
Interface	USB, Keyboard wedge, RS232, TTL (undecoded)
Scanner Dimensions	Length: 5.5 in. / Diameter: 1.2 in. x 0.9 in. Length: 140 mm. / Diameter: 30 mm. x 23 mm.
Scanner Weight	2.7 oz. / 76.5 g
Cable Length	71 in. / 180 cm.
Case Material	ABS plastic
Supply Voltage	5V DC 10%
Surge Power	< 800mA
Working Current	60mA 10mA
Operating Temperature	32°F to 122°F
Storage Temperature	-4°F to 140°F
Humidity	20% to 85% RH non-condensing
Drop Specification	Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
