Trumpf 1942383 TruTool C 250 (2B1) 220V 60Hz Slitting Shears

Trumpf, 1942383, TruTool C 250 (2B1) 220V 60Hz Slitting Shears with Chip Clipper

1942383 Includes Only:

• Slitting Shears
• Cutting blades, 2 units, Set of 2 (1275275)
• Straight cutter (integrated), 0.06 - 0.1 in
• TRUMPF Box S1, 1 unit (1763681)

Features:

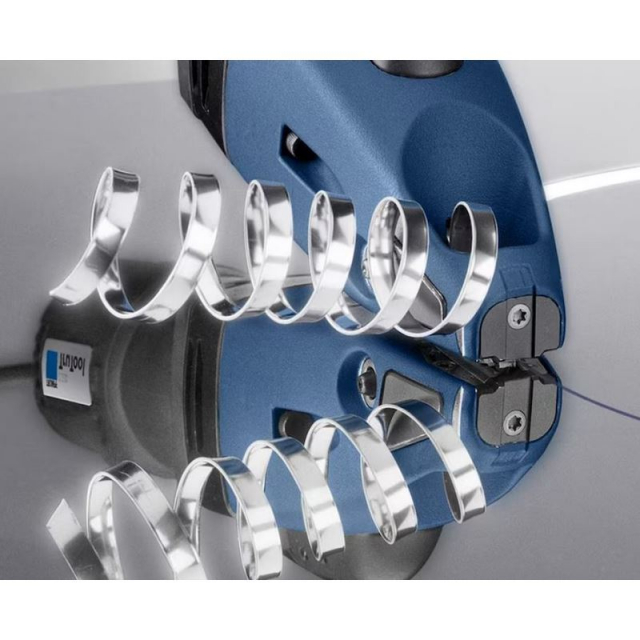

• Chip clipper for single-handed operation: Chips can be easily cut with one hand at the touch of a button without difficulty.
• Extremely powerful: The most powerful model of its class. For mild steel of up to 0.1 in. and stainless steel of up to 0.06 in.
• For interior cutouts and notches: You can cut chips at any time and pull the machine out of the workpiece.
• For any application: For perfect results, you can choose between 5 different cutters.

Applications:

• Flat sheet: For cutting and trimming flat sheets. This is for radial and interior cutouts as well as notches.
• Profiles: For cutting C-L-U profiles and longitudinal cuts in profile sheets.
• Spiral ducts: For cutting spiral ducts, use sheet thicknesses of 4 x 0.035 in. or 6 x 0.024 in. in mild steel and 4 x 0.024 in. in stainless steel.
• Tubes: For cutting tubes.
• Coil processing: For cutting coils. For relief cuts and sampling.
• Dia-mond plate: For cutting dia-mond plate. For radial and interior cutouts

The TruTool C 250 provides unmatchable performance. It cuts sheet thicknesses of 0.1 in. in mild steel and 0.06 in. in stainless steel. It offers a unique added benefit in the form of the integrated chip clipper, which can be operated with one hand. This enables you to cut chips with one hand at any time and pull the machine out of the workpiece. The easily visible marks on the cutting head mean that you can re-position the machine accurately at any time. The TruTool C 250 offers an impressive top cutting speed of up to 10 feet per minute.
