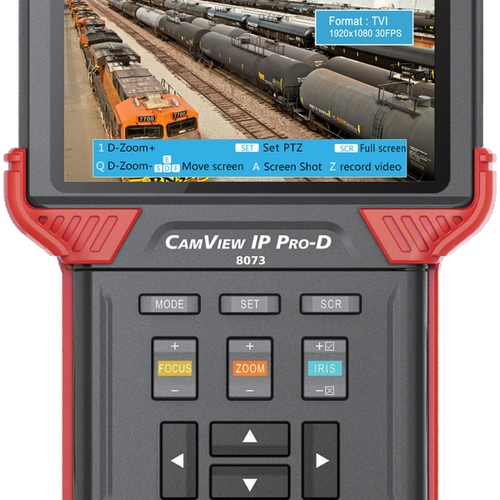

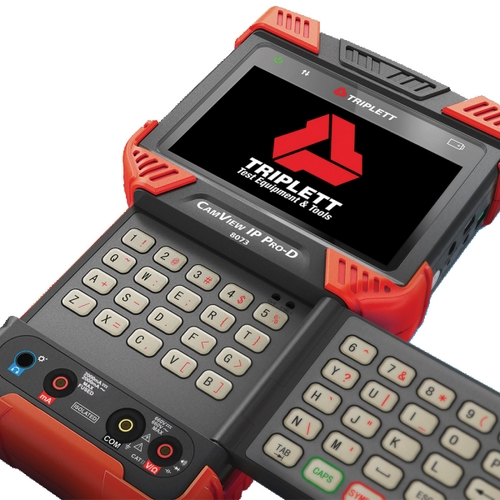

Triplett 8073 IP Pro-D 4" IP-Analog Security Camera Tester, NTSC/PAL

Triplett, 8073, IP Pro-D IP-Analog Security Camera Tester for H.265, AHD 2.0, HD-TVI 3.0, HD-CVI 3.0, and NTSC/PAL Cameras

8073 Includes Only:

• Lanyard
• Rechargeable Battery
• Tool Bag with Shoulder Strap
• POE Power Injector
• Network Cable
• BNC Cable
• RS485 Cable
• 12V Power Output Cable
• Audio Cable
• USB Cable
• Test Leads

Features:

• Built-in DHCP server allows you to set & Assign IP addresses to cameras, auto-detect IP settings on networks and Ping, Sniff, List Subnet
• Ethernet and network tests; capture images, videos, and camera settings so you can create reports
• Work with or without a network
• Built-in True RMS multimeter
• POE for IP cameras
• 12VDC to analog cameras
• RS485 port for PTZ control of analog PTZ cameras
• Check microphone/audio sources and even provide a bright flashlight function
• Both recorded images and video can be transferred to PCs or other devices via the USB port connection
• TDR cable testing and network testing
• Built-in keyboard
• Packet Loss Test
• Ethernet Loop Detection
• Record, save and export full IP camera reports

Designed to facilitate the installation and maintenance of surveillance video equipment. The Tester works with both Standard Definition analog NTSC/PAL camera systems, High Definition Analog, and ONVIF conformant IP (Ethernet) camera systems. Provides an RS485 port for PTZ control of analog PTZ cameras and can provide POE for operating IP cameras, or 12VDC (not to exceed 2A) to power analog cameras. Allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing, check microphone/audio sources and even provide a bright flashlight function. Both recorded images and video can be transferred to PCs or other devices via the USB port connection.
