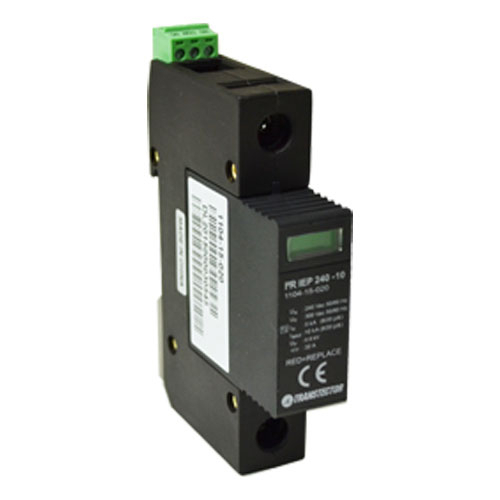

Transtector 1104-15-020 AC Surge Protector, SPD, DIN-Rail, 240 Vac

Transtector, 1104-15-020, AC Surge Protector, SPD, I2R, DIN-Rail, 240 Vac, Single-Phase, SASD, 10 kA, HazLoc

Features:

• Class I/Div II, ATEX
• 100% SASD Protection
• SASD and MOV Protection Options
• Visual Suppression Status Indicator
• Dry Contact Remote Annunciation Terminals
• Replaceable Suppression Modules
• DIN-Rail Mount

Applications:

• Electrical Panelboards
• Industrial Automation
• Communications Base Stations
• IT and Data Centers
• Switchgear
• Motor Control Centers
• Automatic Transfer Switches
• Wastewater Treatment
• Oil and Gas
• LED Lighting
• Schools
• Hospitals

Transtector AC surge protector / arrester (Also known as alternating current surge protection device or SPD as well as transient voltage surge suppressor or TVSS) 1104-15-020 is in-stock and will ship same business day as purchased from us. AC surge protector / SPD provides overvoltage protection for your equipment and supports long-term system reliability by absorbing high amounts of transient energy while maintaining a low clamping voltage. This industrial surge protector for AC helps prevent damage from VAC overvoltage that can be caused by lightning surge and other strong electrical power spikes. The transient voltage suppressor / TVSS protection device can act as a lightning surge protector / arrestor as well as an AC electrical overvoltage spike surge protection device. AC surge protector device part number 1104-15-020 from Transtector is designed to protect sensitive electric and electronic equipment from transient voltage. This TVSS product for alternating current offers high quality electrical surge suppressor protection. Electrical surge protection unit is rated for indoor use. The indoor SPD for AC is a din-rail type design. Indoor industrial electrical surge protection din-rail is part of the Transtector I2R series. 1104-15-020 TVSS indoor AC surge protector is for 240 Vac applications. The 240V AC TVSS is a single-phase surge protector. Single-phase 240V SPD is just one of many alternating current protection devices that ship same-day from Transtector. Single-phase surge protector din-rail for lightning protection and other spikes in electrical power has a maximum amperage of 10 kA. Industrial AC electrical / lightning SPD is rated at 10 kA on 240V. Transtector TVSS AC power protection device PDF datasheet with details of specifications and CAD drawing with dimensions for 1104-15-020 can be found above. Protection from AC electrical surge in this Transtector din-rail component is in the form of Silicon Avalanche Suppression Diode (SASD). This AC SPD uses Silicon Avalanche Suppression Diode (SASD) circuits to protect electrical devices from spikes in alternating current power. Transient voltage surge suppression from lightning and strong electrical spike events are handled through Silicon Avalanche Suppression Diode (SASD) protection circuits in the 1104-15-020 SPD. 1104-15-020 commercial surge protector for AC power is HazLoc rated.
