Toolmex, 3-876-062P, 6" Threaded Steel Backplate for Super Precision SET-TRU™ Chucks with 1-1/2"-8 Spindle Mount

Features:

Designed for use with TMX Super Precision SET-TRU™ Chucks
All backplates are made of hardened steel
Backplates are fully machined

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Mount

Threaded

Spindle mount

1-1/2"-8

Machined

Fully Finished

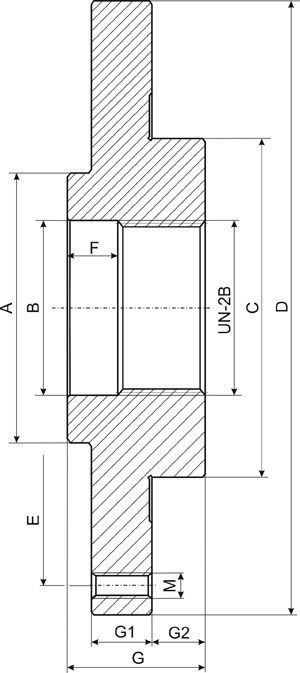

Dimensions:

D (in): 6.30
UN-2B: 1-1/2"-8
A (in): 2.68
B H7 (in): 1.52
C (in): 3.39
E (in): 5.51
F (in): 0.51
G (in): 1.54
G1 (in): 0.71
G2 (in): 0.63
M (in): 3xM10

Weight (lb)

7.60

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Mount

Threaded

Spindle mount

1-1/2"-8

Machined

Fully Finished

Dimensions:

D (in): 6.30
UN-2B: 1-1/2"-8
A (in): 2.68
B H7 (in): 1.52
C (in): 3.39
E (in): 5.51
F (in): 0.51
G (in): 1.54
G1 (in): 0.71
G2 (in): 0.63
M (in): 3xM10

Weight (lb)

7.60

Note: Please read description carefully. Do not base your order on the picture presented.
