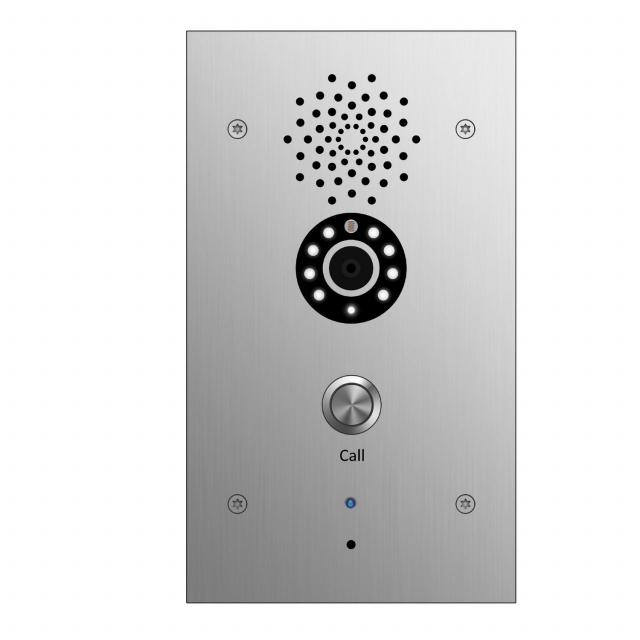

Buy TOA N-SP80VS1, Outdoor/Indoor SIP Video Door Station

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

The N-SP80VS1 SIP Video Door Station is designed to provide clear and intelligible communication to a Multimedia Station over an Ethernet network. It is equipped with an assignable call switch, a night-view camera and two control relay outputs.

The N-SP80 series SIP Video Intercom System offers flexible audio and video communications using standard SIP and Onvif protocols. It can integrate with external SIP compatible systems through a SIP server. Peer-to-Peer mode is also for easy system configuration without a SIP server. TOA's N-8000SG SIP gateway software is fully compatible with TOA's N-8000 IP intercom system.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Phone Features

Web support multi-language
Auto-answer
Volume control
Direct IP call without SIP proxy
Auto-Provision

Network Features

2x10/100Mbps Ethernet Port
Security: Password Protection, IP address filtering, SIP over TLS,
HTTPS encryption, user access log
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP,
RTP, TCP, UDP, ICMP, DHCP, ARP

SIP Features

SIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711µ, G.722, G.729
Video codecs: H.264 MPEG-4/MJEG (E21V only)
Speech Quality: 7kHz Audio
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator

Switches

1 Call button, 1 reset button (on board)

Camera

3M pixels

Resolution

up to 1080p

Microphone

1 integrated microphone, IP67

Speaker

1W, IP66

Control Input

2 input relays for alarm/ (Voltage, Current)

Control Output

2 output relays for door opener/ (Voltage, Current)

Indication

Status lamp (colors: red, green, blue)

Power Source

12V DC

Power Consumption

less than 12W

IP Grade

IP65

Installation

Flush-mounted, Fit in Clipsal 164/4 back box

Operating Temperature

-20 ° ~ 55 °C (-4 °F - 131° F)

Finish

Plate: Stainless steel

Dimension

210 (H) x 120 (W )x 45.6 (D)mm (8.27" x 4.72" x 1.8")

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Phone Features

Web support multi-language
Auto-answer
Volume control
Direct IP call without SIP proxy
Auto-Provision

Network Features

2x10/100Mbps Ethernet Port
Security: Password Protection, IP address filtering, SIP over TLS,
HTTPS encryption, user access log
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP,
RTP, TCP, UDP, ICMP, DHCP, ARP

SIP Features

SIP v1(RFC2543), SIP v2(RFC3261)
Audio codecs: G.711a, G.711µ, G.722, G.729
Video codecs: H.264 MPEG-4/MJEG (E21V only)
Speech Quality: 7kHz Audio
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator

Switches

1 Call button, 1 reset button (on board)

Camera

3M pixels

Resolution

up to 1080p

Microphone

1 integrated microphone, IP67

Speaker

1W, IP66

Control Input

2 input relays for alarm/ (Voltage, Current)

Control Output

2 output relays for door opener/ (Voltage, Current)

Indication

Status lamp (colors: red, green, blue)

Power Source

12V DC

Power Consumption

less than 12W

IP Grade

IP65

Installation

Flush-mounted, Fit in Clipsal 164/4 back box

Operating Temperature

-20 ° ~ 55 °C (-4 °F - 131° F)

Finish

Plate: Stainless steel

Dimension

210 (H) x 120 (W )x 45.6 (D)mm (8.27" x 4.72" x 1.8")

Note

Note: Please read description carefully. Do not base your order on the picture presented.
