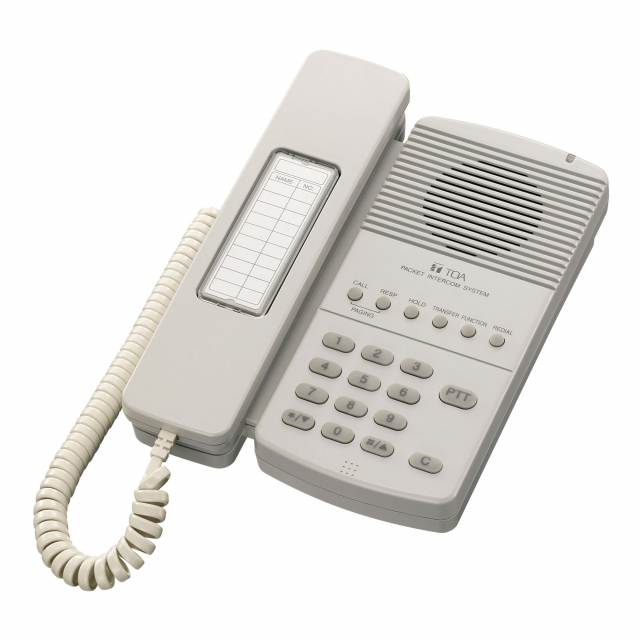

TOA N-8010MS Y Standard Master Station

Type: Standard Master Station
  • Brand TOA
  • Part # N-8010MS Y
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Type:
    Type: Standard Master Station

    The N-8010MS is a standard master station (no LCD display) that connects to an N-8000EX or N-8010EX intercom exchange by a single twisted pair wire. It is capable of full duplex hands-free or handset communication with other full duplex stations. The N-8010MS master station may be wall or desk mounted.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Power Source48 V DC (supplied from the IP intercom exchange (option))
    Power Consumption1.8 W (at rated), 2.4 W (max.)
    Wiring Method1 set of twisted pair cable
    Transmission System2 wire 160 kbps echo canceller transmission system
    Signal LevelUnder 0 dB*
    Speech MethodHands-free or handset conversation
    Audio Frequency Range300 Hz - 7 kHz
    Transmission RangeMax. 1500 m (0.65 mm, Loop resistance 170 Ohm )
    Hands-freeSpeaker: 5.7 cm cone-type, 0.6 W, 8 Ohm
    Microphone: Omni-directional electret condenser microphone
    HandsetReceive path: Dynamic type
    Send path: Electret condenser microphone
    IndicationStatus lamp
    Line Connecting TerminalRJ11 modular jack
    Installation MethodDesk/Surface mounted master station
    (When mounting to the wall, use the optional YC-280.)
    Operating Temperature0 °C to +40 °C
    Operating HumidityUnder 90 % RH (no condensation)
    FinishBody, Handset: ABS resin, gray
    Dimensions148 (W) x 208 (H) x 70.5 (D) mm (excluding a curl cord section)
    Weight700 g
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Power Source48 V DC (supplied from the IP intercom exchange (option))
    Power Consumption1.8 W (at rated), 2.4 W (max.)
    Wiring Method1 set of twisted pair cable
    Transmission System2 wire 160 kbps echo canceller transmission system
    Signal LevelUnder 0 dB*
    Speech MethodHands-free or handset conversation
    Audio Frequency Range300 Hz - 7 kHz
    Transmission RangeMax. 1500 m (0.65 mm, Loop resistance 170 Ohm )
    Hands-freeSpeaker: 5.7 cm cone-type, 0.6 W, 8 Ohm
    Microphone: Omni-directional electret condenser microphone
    HandsetReceive path: Dynamic type
    Send path: Electret condenser microphone
    IndicationStatus lamp
    Line Connecting TerminalRJ11 modular jack
    Installation MethodDesk/Surface mounted master station
    (When mounting to the wall, use the optional YC-280.)
    Operating Temperature0 °C to +40 °C
    Operating HumidityUnder 90 % RH (no condensation)
    FinishBody, Handset: ABS resin, gray
    Dimensions148 (W) x 208 (H) x 70.5 (D) mm (excluding a curl cord section)
    Weight700 g
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
