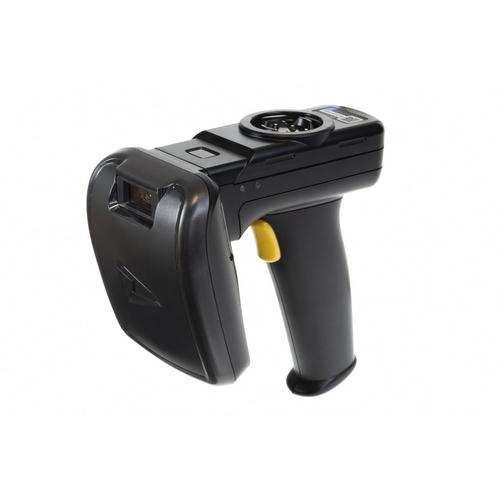

Buy TSL 2128P-AX1, 2128p Reader, Bluetooth, No Imager, North America Only

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Country:: Country: North America
Imager:: Imager: No Imager

TSL, 2128P-AX1, 2128p Reader, Bluetooth, UHF, RFID with Epop, Loq, No Imager, for North America Only

2128P-AX1 Includes Only:

UHF Antenna
Trigger Handle
Battery

The 2128P UHF RFID Reader builds upon the 2128 UHF Reader by including a larger, fixed High Gain antenna for up to 9 m (29.5 ft) of read range. As per the 2128 UHF Reader, the included ePop-Loq connector allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. The ePop-Loq system is also designed to safely separate when the reader is subject to large impacts, such as when dropped. The 2128P UHF RFID Reader has flat landing contact pads, allowing for quicker docking and greater durability.

Features:

Long Range UHF RFID Reader
Hardware Platform Independence
OS Independence
Integrated ePop-Loq Socket
Bluetooth LE Support
Direct USB Connection
Lightweight
High Performance Barcode Scanning
No Imager
For North America

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions (with trigger handle)	16.0 cm x 7.7 cm x 17.5 cm (LxWxH)
Weight (including battery & trigger handle)	365 g / 12.8 oz (including non-imager antenna, battery & trigger handle) 400 g / 14.1 oz (including imager antenna, battery & trigger handle)
User input	Trigger button
User feedback	Speaker, vibration motor, LED
Power	Removable, rechargeable 3.7 volt 2300 mAh Lithium Polymer pack, 8.6 Watt hrs
Power Handle (optional)	6700 mAh Lithium Polymer pack, 27 Watt hrs
Enclosure materials	Polycarbonate
Standards supported	EPC Class 1 Gen 2
Nominal read range	Up to 6 m (19.6 ft)
Nominal write range	Up to 3 m (9.8 ft)
Field	150-degree forward facing
Antenna	Detachable, Right Hand Circularly Polarized with optional 2D scanner
Frequency Range	865-868 MHz
Maximum Output Power	33 dBm EIRP

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions (with trigger handle)	16.0 cm x 7.7 cm x 17.5 cm (LxWxH)
Weight (including battery & trigger handle)	365 g / 12.8 oz (including non-imager antenna, battery & trigger handle) 400 g / 14.1 oz (including imager antenna, battery & trigger handle)
User input	Trigger button
User feedback	Speaker, vibration motor, LED
Power	Removable, rechargeable 3.7 volt 2300 mAh Lithium Polymer pack, 8.6 Watt hrs
Power Handle (optional)	6700 mAh Lithium Polymer pack, 27 Watt hrs
Enclosure materials	Polycarbonate
Standards supported	EPC Class 1 Gen 2
Nominal read range	Up to 6 m (19.6 ft)
Nominal write range	Up to 3 m (9.8 ft)
Field	150-degree forward facing
Antenna	Detachable, Right Hand Circularly Polarized with optional 2D scanner
Frequency Range	865-868 MHz
Maximum Output Power	33 dBm EIRP

Note

Note: Please read description carefully. Do not base your order on the picture presented.
