Thor Broadcast H-SPARTAN-2 2 Ch HDMI + SDI Network Encoder Streamer

Type: 2 Channel HDMI + SDI Network
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Type:
    Type: 2 Channel HDMI + SDI Network

    Features:

    • 2SDI / 2 HDMI Input up to 3G-SDI at1080 60p
    • Low Latency and Low bit rate (2~14Mbps)
    • Support CBR/VBR control mode
    • LCD and Web controlled, updated via Web
    • Support UDP/RTP (Unicast/Multicast), HLS,
    • 4:2:0 and 4:2:2 Chroma

    Compact dual channel HDMI and 3G-SDI encoder.

    Input up to 1080/60P HDMI or 3G-SDI full HD resolution video sources for encoding H264 output.

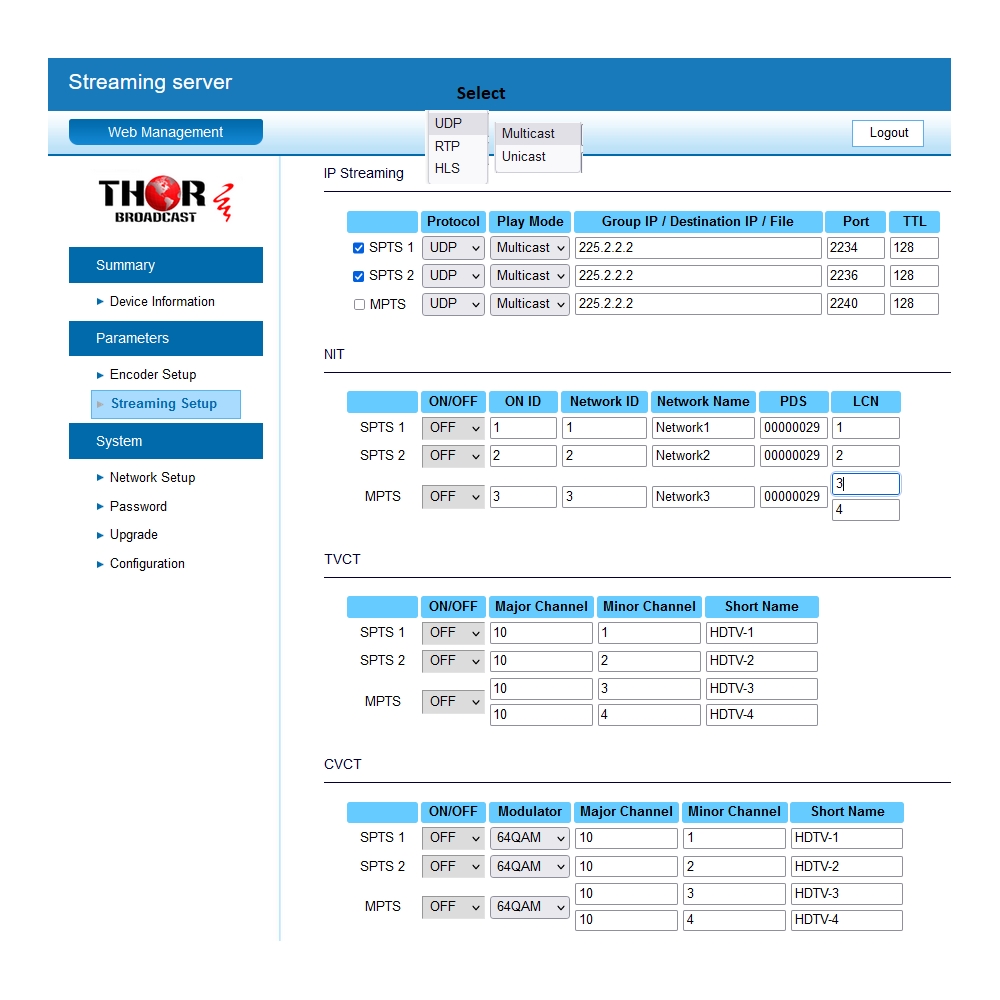

    Two channel unit with your choice of HDMI and SDI inputs with an extensive GUI for control of audio/video bitrate, PID's, with one RJ45 port for up to 1Gbps output.

    Use any HDMI source or SDI source for easing streaming to your LAN or output using protocols for Facebook and Youtube.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    All sales are final
    All sales are final
    • These are made-to-order items.
    • This product is not eligible for return or exchange unless defective.
    • The average lead-time is 1 or 2 weeks.

    Technical Details

    Reviews
    Input2 x HDMI, 2 x 3G-SDI
    Output1 x RJ45, 1Gbps IP Streaming, Protocols: UDP/RTP(Unicast/Multicast)/ HLS,
    ControlLCD with 6 keys and 1 x RJ45 (Web NMS)
    FormatHD:H.264 AVC/HP atL4.0
    ResolutionInput: 1080 50/60p, 1080 50/60i, 720 50/60p, 480i, 576iOutput: up to 1080p30
    BitrateHDMI: 2~14MbpsSDI: 2~14Mbps
    Rate ControlCBR/VBR
    Chroma Sample4:2:0, 4:2:2
    GOP StructureIBBP
    FormatMpeg1L2, AAC, Dolby AC3
    Bitrate64 ~ 384Kbps
    Sample Rate44.1 KHz, 48.0 KHz
    Power SupplyDC 12V 2A
    DisplayLCD panel at 2 x 16 characters LED X5 (Ch1~2, HDMI/SDI/PW)
    Dimension220 x 206 x 44mm
    Weight1000g
    Environmental for operatingTemperature: 5 deg C- 40 deg C Relative Humidity: 80% at 30 deg C
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Input2 x HDMI, 2 x 3G-SDI
    Output1 x RJ45, 1Gbps IP Streaming, Protocols: UDP/RTP(Unicast/Multicast)/ HLS,
    ControlLCD with 6 keys and 1 x RJ45 (Web NMS)
    FormatHD:H.264 AVC/HP atL4.0
    ResolutionInput: 1080 50/60p, 1080 50/60i, 720 50/60p, 480i, 576iOutput: up to 1080p30
    BitrateHDMI: 2~14MbpsSDI: 2~14Mbps
    Rate ControlCBR/VBR
    Chroma Sample4:2:0, 4:2:2
    GOP StructureIBBP
    FormatMpeg1L2, AAC, Dolby AC3
    Bitrate64 ~ 384Kbps
    Sample Rate44.1 KHz, 48.0 KHz
    Power SupplyDC 12V 2A
    DisplayLCD panel at 2 x 16 characters LED X5 (Ch1~2, HDMI/SDI/PW)
    Dimension220 x 206 x 44mm
    Weight1000g
    Environmental for operatingTemperature: 5 deg C- 40 deg C Relative Humidity: 80% at 30 deg C
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
