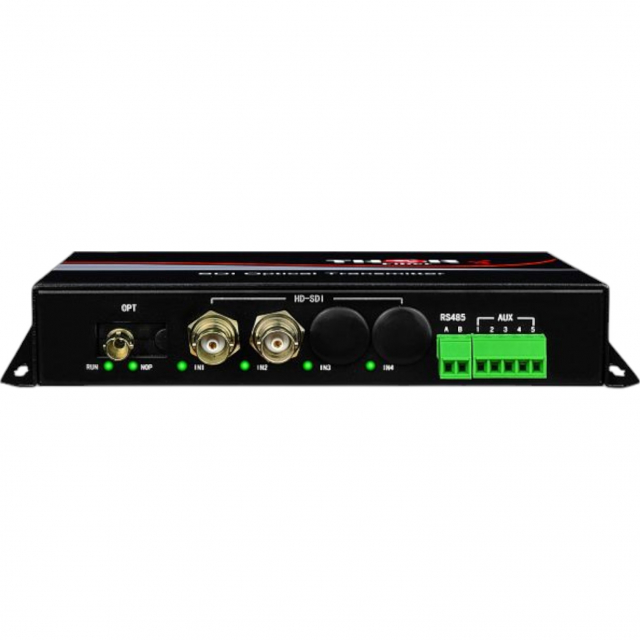

Thor Broadcast, F-M2SDI-Tx/Rx, 2-Channels HD-SDI Transmitter and Receiver Kit Over Singlemode Fiber
F-M2SDI-Tx/Rx Includes Only:
- Transmitter
- Receiver
- Power Supplies
Features:
- Extend HD-SDI or SD-SDI digital video signals over single-mode or multimode fiber optic cable
- Supports full rate HD-SDI at 1.5Gbps or lower SDI or ASI digital video
- Transports embedded audio channels as well as SDI ancillary data
- Return path serial RS-485 channel for controlling equipment on Tx end
- Link alarm indicators on both Tx & Rx indicate a problem with the fiber
- Status indicators for data rate and lock
- Small rugged portable standalone package ideal for portable installations
- Pathological test patterns are only supported on 3G SDI model

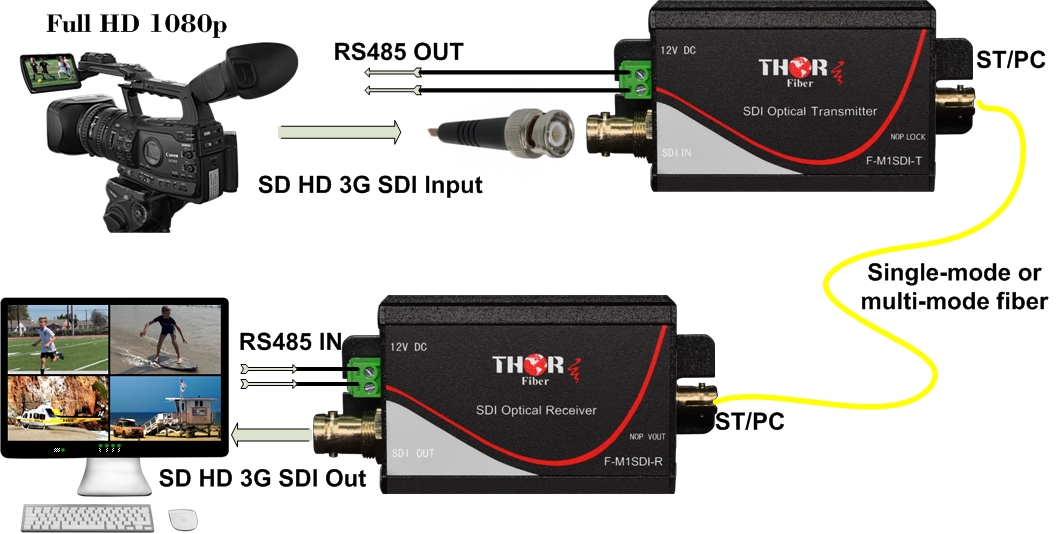

Thor compact SDI fiber extender kits are designed to increase the range of digital SD-SDI or HD-SDI video signals over single mode or multimode fiber optic cable. SDI is normally carried over coax cable on BNC connectors, however, the maximum cable distance is limited to around 100 meters. Thor SDI extenders increase this distance to more than 80 miles by using lasers to send the data over fiber cable.
Cabled (coax-to-fiber) throw-down converter compact, rugged, and portable converter boxes. Super-easy to use, supports SMPTE 424M, 292M, and 259M as well as ASI and MADI audio. Its wide operating range from 5Mbps to 1.5Gbps, supports most professional digital serial communications. Full error-free pathological pattern operation is fully compatible with professional fiber video interfaces. Single channel SDI fiber links are the smallest Micro units that are suitable for a wide range of applications identical to where rattlers are used.

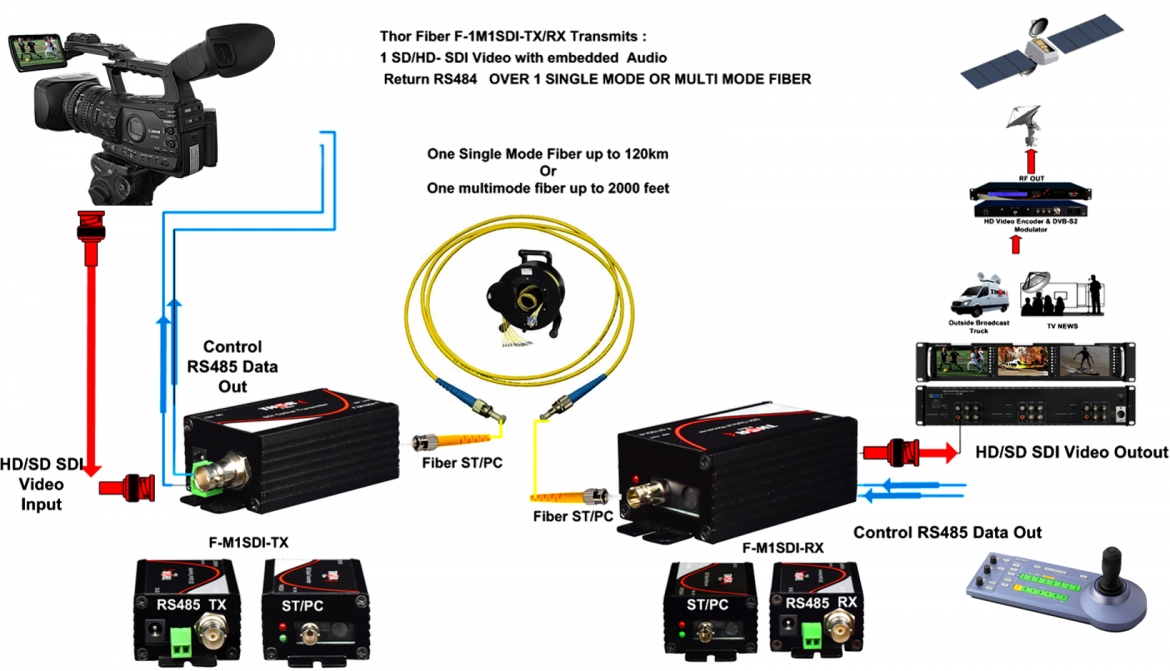

Single channel SDI fiber links are highly compact units that are suitable for a wide range of applications identical to where rattlers are used. Common uses include mounting on broadcasting cameras to simplify cable distribution. Another common application is for high end security systems. The F-M2SDI platform is ideal for security applications where the RS-485 serial data channel can be used to control pan, tilt, and zoom controllers at the camera mount. This also simplifies cabling.
Thor F-M1SDI fiber optic SDI transmitters and receivers use locking type ST fiber connectors and BNC video cables to ensure that any cable is not accidentally pulled out of the device once the equipment is installed.
