Thor Broadcast F-M1SDI-TR-ET 1-Channel Transmitter and Receiver Kit

Thor Broadcast, F-M1SDI-TR-ET, 1-Channel HD-SDI Bi-Directional Transmitter and Receiver Kit

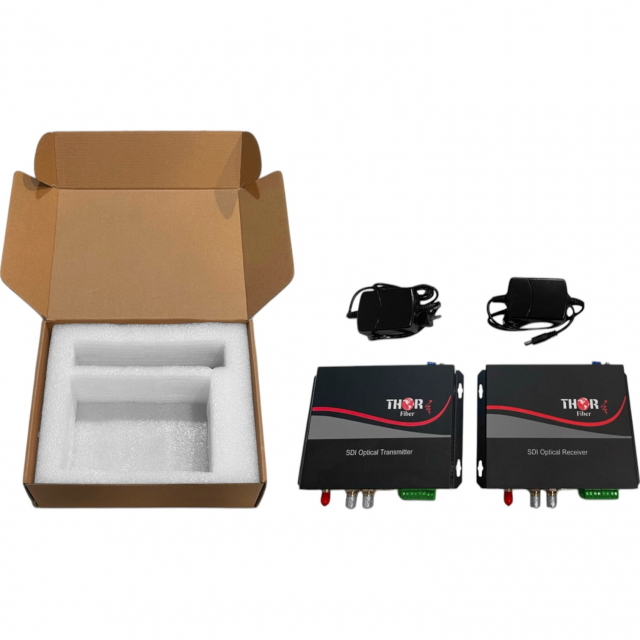

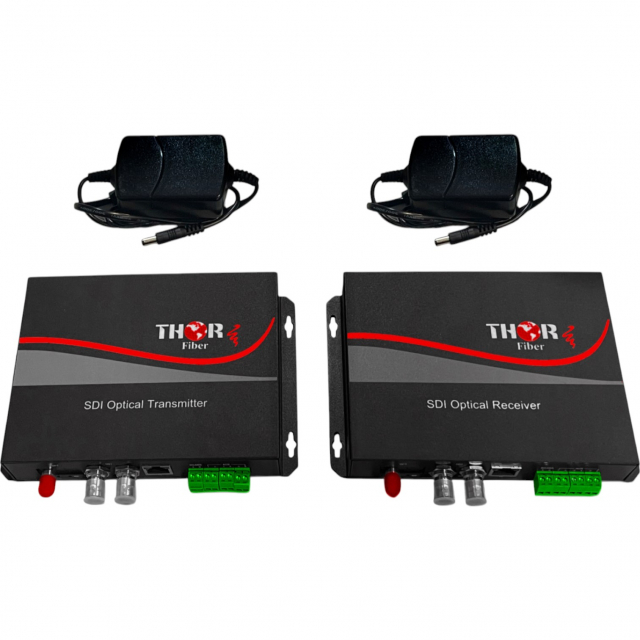

F-M1SDI-TR-ET Includes Only:

• Transmitter
• Receiver
• Power Supplies

Features:

• F-M1SDI-TR-ET-Unit sends and receives:
  • Bi-Directional SDI signal over a single fiber
  • Bi-Directional 10/100 Ethernet (RJ45)
  • Unidirectional RS-485 Control data
  • Analog Audio ( optional ) by order only
• Compliant with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s

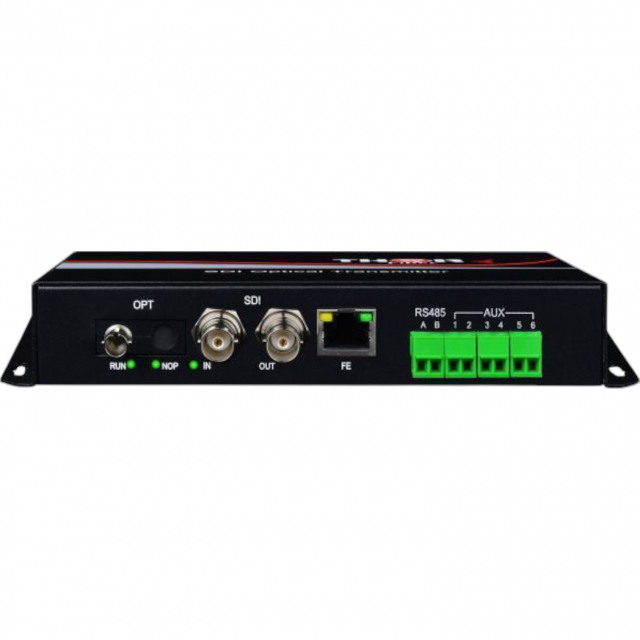

• One SD/HD-SDI input (BNC) , one SD/ HD-SDI output (BNC) and one fast Ethernet interface
• Supports 1080P at30, 25, 24, 29.97 / 1080I at60, 50, 59.94 / 720P at60, 50, 30, 25, 24, 59.94, 29.97, 23.98 and 625i / 525i format,
• When input is 1080P at29.97, 23.98 / 1080I at59.94 / 720P at59.94, 29.97, 23.98, the output is 1080P at30, 24 / 1080I at60 / 720P at60, 30, 24 respectively
• Integrated cable equalizer
• Embedded ESD and surge protection circuit to prevent damage from static and thunder
• With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
• With APC circuit to perform at stable optical power

The Thor Fiber F-M1SDI-TR-ET is a compact powerhouse that will allow any user to transport one single channel of 1.485Gbps HD-SDI Serial Data Interface bi-directionally while simultaneously transmitting 10/100Mb/s Ethernet Data. Furthermore, this Thor Fiber Kit of Transmitter and Receiver will send RS485 in reverse for easy control over the kit.

This sturdy unit creates an easy drop environment for users that require HD-SDI and Fast Ethernet across applications and even allows additional AUX Cards which can allow a plethora of others such as RS232 and RS422, and is even capable of carrying external analog audio instead of the SDI embedded audio. Thor Fiber has an excellent reputation for high quality and low cost products to help complete your project on time, in a loss-free quality kit that will ensure you stay under budget. Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment.
