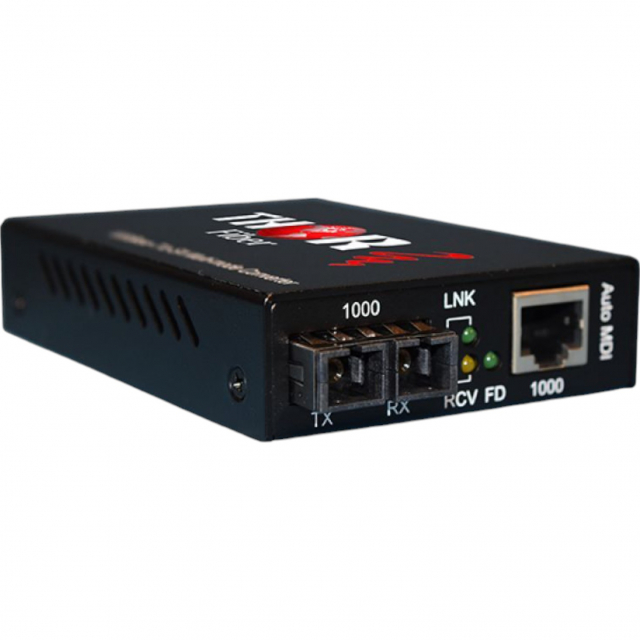

Thor Broadcast F-GET-TR-MM Gigabit Ethernet to Fiber Converter

Thor Broadcast, F-GET-TR-MM, Gigabit Ethernet 1000Mbs to Fiber Converter for Multimode Fiber

Features:

• Complies with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standard
• Auto MDI/MDI-X support on RJ-45 port
• Auto polarity correction on RJ-45 port
• Local and Remote loopback test for first-time installation and troubleshooting
• Low power consumption
• Compatible with other Gigabit 1000Base-T/SX/LX devices
• Status LEDs for easy monitoring of device status
• External power supply
• Chassis compliant (internal power supply)
• FCC Class A & CE approved

Applications:

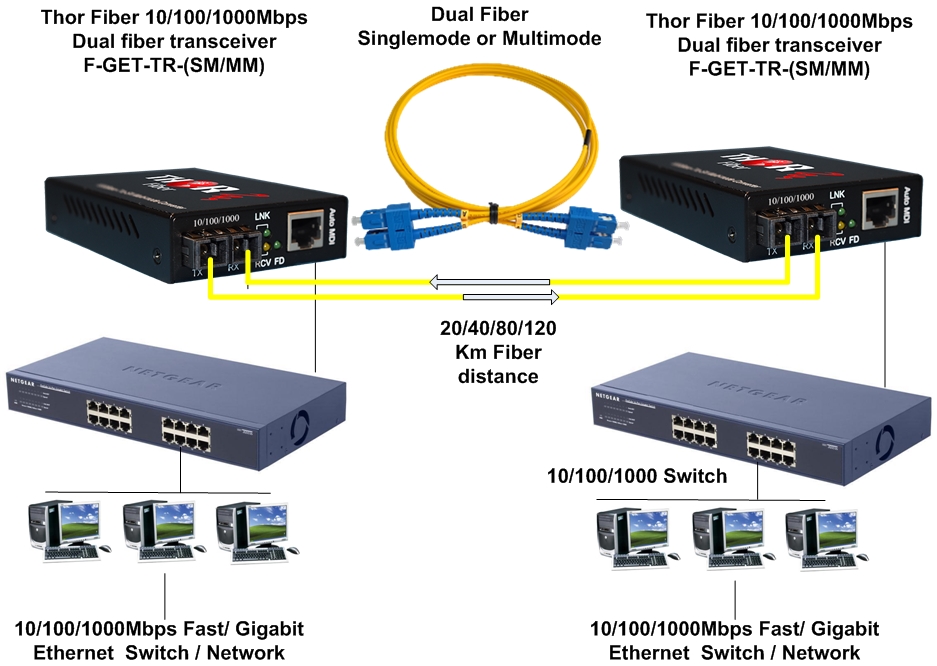

• The following illustrates typical applications for the F-GET-TR series.
• The actual distances will depend on several factors including the quality of cables used and the terminal equipment employed.

The Thor Fiber F-GET-TR media converters were specifically designed to offer network designers the tools for migration from copper-based Gigabit to fiber-based Gigabit Ethernet. Now, migration or expansion of existing networks can be possible with minimum cost and complexity. These Thor converters are completely transparent when installed so your network performs exactly the way it was previously, but now it can migrate both copper and fiber mediums. This flexibility in cabling allows network managers to put fiber cables anywhere within a network without changing the arrangement of copper-based Gigabit segments. Their compact size allows the converter to be easily installed in any narrow desktop location or used in a wall-mount format to save space. Several converters can be simultaneously installed by using the F-CHAS 12-slot 19" rack-mount chassis. The F-GET-TR takes advantage of Gigabit Ethernet technology, suitable for transmission applications of larger bandwidth like Video, Image, and Voice over IP.

Case Study: Enhancing Network Connectivity with Gigabit Ethernet Converter

Introduction: In a typical networking scenario, there's often a need to improve connectivity between remote locations within a facility. The challenge arises when the distance between these locations exceeds the limitations of standard Ethernet cables, requiring a reliable solution to transmit IP traffic over longer distances.

Challenges:

1. Distance Limitations: Connecting networks directly becomes problematic when the distance between locations surpasses the reach of traditional Ethernet cables.
2. Data Transmission Speed: High-speed data transmission is necessary to ensure seamless communication between IP devices and switches.
3. Reliability: Any solution must be robust and reliable to maintain network stability and minimize downtime.

Solution: Implementing Gigabit Ethernet converters with dual SC connectors capable of supporting Gigabit Ethernet over single-mode fiber optics addresses these challenges effectively by providing:

• Extended Reach: Facilitating IP traffic transmission over two single-mode fibers, extending network reach up to 20 kilometers between locations.
• High-Speed Data Transmission: With a data transfer rate of 1000 Mbps (Gigabit) , these converters ensure fast and efficient communication between Ethernet switches and IP devices.
• Flexibility: Enabling seamless connectivity between various IP devices, including IP cameras, remote PCs, and WiFi gateways, enhances overall network infrastructure flexibility.
• Reliability: Utilizing single-mode fiber optics offers increased reliability and immunity to electromagnetic interference, ensuring stable network performance.

Implementation:

1. Assessment and Planning: A thorough assessment of network requirements determines the optimal placement of Gigabit Ethernet converters to establish connectivity between locations.
2. Installation: Trained technicians install Gigabit Ethernet converters at both ends of the network, connecting them to Ethernet switches and IP devices using single-mode fiber optic cables.
3. Configuration: The converters are configured to support Gigabit Ethernet transmission, ensuring compatibility with existing network infrastructure and devices.
4. Testing and Optimization: Rigorous testing verifies the functionality and performance of the network connection. Any adjustments or optimizations are made to maximize efficiency and reliability.

Results: Implementing Gigabit Ethernet converters over single-mode fiber optics achieves the following outcomes:

• Extended Network Reach: Successful establishment of network connectivity between remote locations over extended distances.
• Improved Data Transmission: High-speed data transmission at Gigabit Ethernet speeds facilitates seamless communication between IP devices and switches.
• Enhanced Reliability: The robust and reliable nature of the solution ensures consistent network performance, minimizing downtime and enhancing operational efficiency.

Conclusion: The implementation of Gigabit Ethernet converters provides a reliable and efficient solution for passing IP traffic between two Ethernet switches or networks over extended distances. Leveraging single-mode fiber optics achieves high-speed data transmission, flexibility, and enhanced reliability, optimizing network infrastructure to support evolving business needs.
