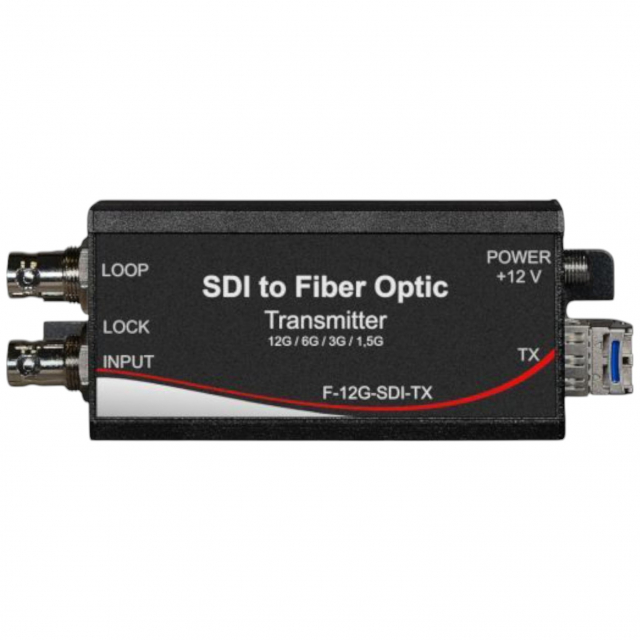

Thor Broadcast, F-12G-SDI-TX/RX, 12G 3G HD SD-SDI to Fiber 4K Transmitter and Receiver Kit
F-12G-SDI-TX/RX Includes Only:
- Transmitter
- Receiver
- SFP LC/PC optical module
Features:
- Compact design with a casing size of 93.0mmx45.0mmx29.2mm
- Unidirectional 12G/6G/3G/HD/SD-SDI signal transparent transmission, the bit rate is auto-adaptive
- PAL/NTSC auto-detection
- Passes SDI pathological code test and compliant with SMPTE RP178 standard
- Transmitter
- Integrated cable equalizer and Re-Clocker for SDI input
- Provides one SDI loop output, supports long-distance 20km
- Provides SDI input lock indicator and power indicator
- Receiver
- Provides dual SDI outputs, with integrated re-clocker
- Provides optical input lock indicator and power indicator
- BNC input/output interface has 15kV electrostatic protection ability, which can meet indoor application
- Compliant with SMPTE ST297, ST2081, ST2082, SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, and DVB-ASI standard
- Standards:
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080P at23.98, 1080P at24, 1080P at25, 1080P at29.97, 1080P at30
- 1080i50, 1080i59.94, 1080i60
- 2K Video Standards:
- 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
- SFP LC/PC optical module with 1310nm, 20km long haul, compliant with SFP MSA and SFF-8472 standard
- With higher overload power, it allows for short jumpers to connect for testing purposes
- Video Input Digital: 1-Channel independent 12G-SDI, SMPTE-259/292/424/2081/2082
- Video Output Digital: 1-Channel independent 12G-SDI Loop out, SMPTE-259/292/424/2081/2082; 1-Channel Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
- Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps-Auto Select; All other rates are passed through and not reclocked
- Power adaptor
- Input: AC 90~264V at50~60Hz
- Output DC +12V
- The power plug has anti-shedding protection function
- Provides CLI interface for failure location
The most powerful Thor Fiber Transmitter provides one SDI input and one SDI loopout, and the Receiver provides two SDI outputs. Utilizing single-mode fiber, this multi rate Ultra High Definition has zero delay in performing under the most critical applications in real-world conditions.
This unit provides transparent and loss-free transmission technology, which ensures that the quality of images is up to broadcast level and also guarantees the normal transmission of embedded audio signals. It can be widely used in 4K/8K ultra-high-definition TV program production, live broadcasts of Large-scale concerts, or Sports events.
12G-SDI solutions can simplify production and post workflows, providing bandwidth to handle high resolution, high frame rate, and deep color content over one single-mode cable, by directly connecting the camera to the fiber.
