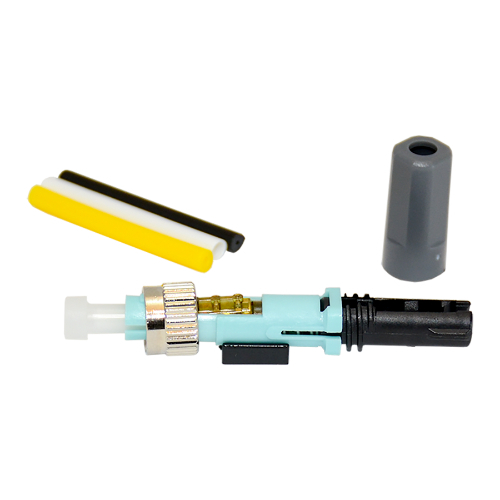

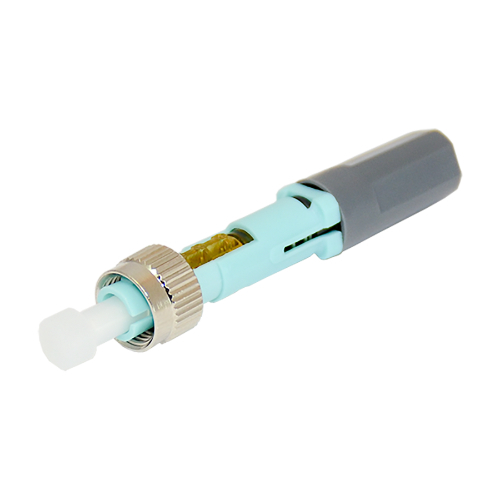

TechLogix Networx MMU-FC-100 ECO Field-Assembly FC Type Fiber Optic Connector

TechLogix ECO Series field-installable fiber optic connectors are designed for quick, easy and reliable termination of 250μm, 900μm and 2.0mm fiber cables, including both distribution and zip-cord configurations. ECO Series connectors are compatible with both single-mode (OS1 and OS2) and multimode (OM2, OM3 and OM4) fiber and are available in standard (UPC) and angled (APC) pre-polished formats. No epoxying, crimping, polishing, or proprietary tools are required for termination. Unlike other connectors which are marketed as"one-size fits all", ECO Series connectors are specific to 250μm, 900μm and 2.0mm cables to ensure perfect alignment, reducing refraction and signal loss. And regardless of cable, a large built-in verification window, self-centering alignment groove and easy-to-press button for one-click termination ensure installation times around two minutes.

Features:

• FC type connectors
• Pre-polished for UPC (standard) and APC (angled) connections
• Compatible with single-mode (OS1 and OS2) and multimode (OM2, OM3 and OM4) cable
• Compatible with 250μm, 900μm and 2.0mm cable, including distribution and zip-cord formats
• No proprietary tools required
• No epoxy, crimping, or polishing required
• Built-in verification window showing proper termination
• Self-centering alignment groove for easy and reliable insertion of the fiber optic strand
• Built-in button for one-click termination and locking jig release
• Average termination time around two minutes
• Re-usable (five or fewer termination cycles recommended)
