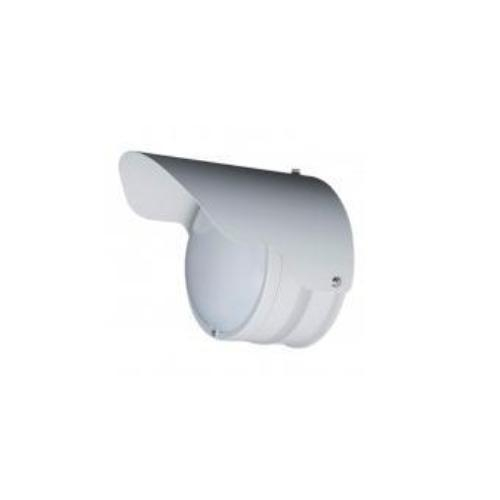

Buy TAKEX PIR-30WE, Sensor 100' Long and Wide Pattern with Mounting

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

High Quality Mirrored Optics coupled with Twin Pyros
Installation Height 2m to 3.5m (6.6' to 11.5')
Durable Weatherproof AES Resin Housing
Sensitivity Adjustment from 30% to 170%
Protective Hood to Deflect Rain/Sunlight and guard against Wildlife

With a mounting height up to 3.5m coupled with a creep zone of less than 1m, 30m x 30m high-density coverage PIR-30WE. Using the highest quality mirrored optics coupled with twin pyros, TAKEX offer the most professional long-range outdoor PIR's to date.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Detection system

Passive infrared

Coverage

Wide angle: 30m (100ft) max.

Sensitive zone

30 zones (60 beams)

Coverage adjustment

Vertical: 10 degreesHorizontal: ±5 degrees

Mounting position

Indoor or outdoor wall

Supply voltage

9 to 30VDC (non-polarity)

Current Consumption

25mA max.

Alarm output

Dry contact (semi-conductor) output (NC/NO)
24V (AC/DC) 0.25A (resistive load) (protective resistor 3.3Ω)
Warm up: approx. 1 min. (no alarm condition)
One-shot output at detection (approx. 2sec.)
Continuously output when detecting low supply voltage

Tamper output

Dry contact output: (NC)
30V (AC/DC) 0.1A (resistive load)
Tamper output: real time output

Alarm LED

Red LED
Blinks during warm-up (approx. 1 min)
One shot lights (approx. 2 secs) at detection
Continuously lights when detecting low supply voltage

Functions

Low supply voltage alarm
Tamper signal
LED control (L/C)
Alarm LED (ON/OFF)
Sensitivity adjustable between 30% and 170%

Ambient temperature

-20°C to +50°C (+4°F to +122°F)

Wiring

Terminals

Weight

1600g (56oz)

Appearance

Body: ABS resin Cover: PE resin

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Detection system

Passive infrared

Coverage

Wide angle: 30m (100ft) max.

Sensitive zone

30 zones (60 beams)

Coverage adjustment

Vertical: 10 degreesHorizontal: ±5 degrees

Mounting position

Indoor or outdoor wall

Supply voltage

9 to 30VDC (non-polarity)

Current Consumption

25mA max.

Alarm output

Dry contact (semi-conductor) output (NC/NO)
24V (AC/DC) 0.25A (resistive load) (protective resistor 3.3Ω)
Warm up: approx. 1 min. (no alarm condition)
One-shot output at detection (approx. 2sec.)
Continuously output when detecting low supply voltage

Tamper output

Dry contact output: (NC)
30V (AC/DC) 0.1A (resistive load)
Tamper output: real time output

Alarm LED

Red LED
Blinks during warm-up (approx. 1 min)
One shot lights (approx. 2 secs) at detection
Continuously lights when detecting low supply voltage

Functions

Low supply voltage alarm
Tamper signal
LED control (L/C)
Alarm LED (ON/OFF)
Sensitivity adjustable between 30% and 170%

Ambient temperature

-20°C to +50°C (+4°F to +122°F)

Wiring

Terminals

Weight

1600g (56oz)

Appearance

Body: ABS resin Cover: PE resin

Note

Note: Please read description carefully. Do not base your order on the picture presented.
