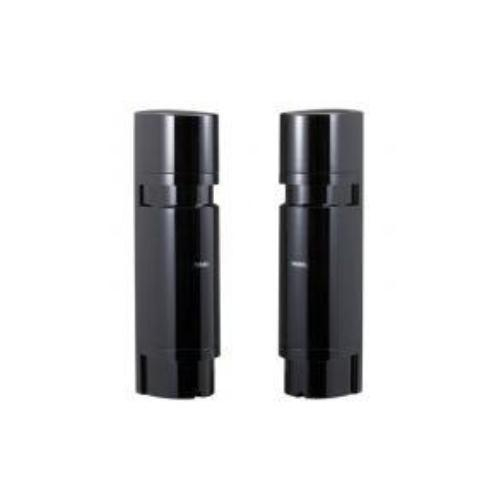

Buy TAKEX PB-200FA, Detector 660' / 1320' Double Modulated Quad Beam

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Protection Distance:: Protection Distance: Outdoor 200 M, Indoor 400 M

Features:

4 x synchronised high power beams
double modulation for unsurpassed light immunity
dynamic auto-gain lock (AGL)
±90° horizontal ± 10° vertical adjustable sensor heads
50,000 lux sunlight immunity
IP55 housing

The professional choice in outdoor protection, Quad beam detectors synchronise 16 beam paths for maximum stability in severe weather conditions, perfect for long range perimeter protection.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Detection system

Near infrared beam interruption system 4 beam simultaneous interruption

Infrared beam

Double modulation pulsed beams by LED

Protection distance

Outdoor 200m (660ft) Indoor 400m (1,320ft)

Max. beam range (approx.)

2000m (6,600ft)

Response time

50msec. to 700msec. (Standard: 50msec.)

Supply voltage

12V to 30VDC (Non-polarity)

Current Consumption

max. 120mA or less

Alarm output

Dry contact relay: NO or NC (selectable)
Reset : Interruption time + off-delay (approx. 1.5 sec.)
Contact capacity : 30V (AC/DC) 1A or less

Tamper output

Dry contact : NC
Contact operation : Output when cover is detached
Contact capacity : 30V (AC/DC) 0.1A or less

Alarm LED

Red LED (Receiver) lights when alarm is initiated

Attenuation LED

Red LED (Receiver) lights when beam reception attenuated

Functions

Tone indicator, Alarm memory indication, Programmed AGC, Auto-gain lock, Monitor jack, Target color

Beam adjustment

Horizontal : ±90°, Vertical : ±10°

Ambient temperature range

- 35°C to +66°C (-31°F to +151°F)

Mounting position

Outdoor (IP55)

Wiring

Terminals

Weight

Transmitter : 1200g (42oz) Receiver : 1300g (45.5oz)

Appearance

Resin (wine red)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Detection system

Near infrared beam interruption system 4 beam simultaneous interruption

Infrared beam

Double modulation pulsed beams by LED

Protection distance

Outdoor 200m (660ft) Indoor 400m (1,320ft)

Max. beam range (approx.)

2000m (6,600ft)

Response time

50msec. to 700msec. (Standard: 50msec.)

Supply voltage

12V to 30VDC (Non-polarity)

Current Consumption

max. 120mA or less

Alarm output

Dry contact relay: NO or NC (selectable)
Reset : Interruption time + off-delay (approx. 1.5 sec.)
Contact capacity : 30V (AC/DC) 1A or less

Tamper output

Dry contact : NC
Contact operation : Output when cover is detached
Contact capacity : 30V (AC/DC) 0.1A or less

Alarm LED

Red LED (Receiver) lights when alarm is initiated

Attenuation LED

Red LED (Receiver) lights when beam reception attenuated

Functions

Tone indicator, Alarm memory indication, Programmed AGC, Auto-gain lock, Monitor jack, Target color

Beam adjustment

Horizontal : ±90°, Vertical : ±10°

Ambient temperature range

- 35°C to +66°C (-31°F to +151°F)

Mounting position

Outdoor (IP55)

Wiring

Terminals

Weight

Transmitter : 1200g (42oz) Receiver : 1300g (45.5oz)

Appearance

Resin (wine red)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
