Buy TAKEX MW-100AL, 330' Point-to-Point Microwave Sensor, K-Band, 24.12GHz

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

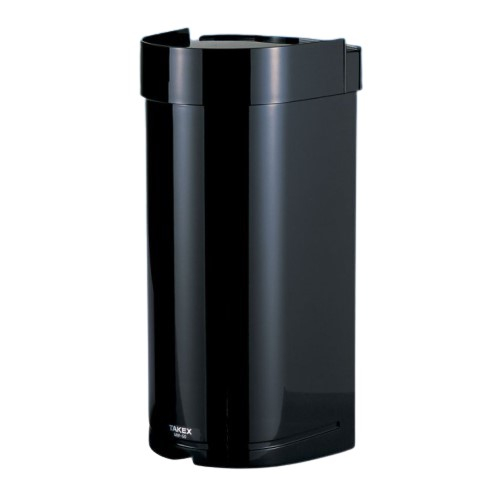

Takex, MW-100AL, 330' Point-to-Point Microwave Sensor, N/O N/C 10-30VDC (K-Band: 24.12GHz)

Features:

24 GHz band of microwave sensor reduces false alarms caused by severe weather conditions such as heavy fog, snowfall or rain.
With adjustment mode switch, monitor output voltage (beam reception level) can be checked speedily.
Transmitter: Green LED ON when transmitting a signal
Receiver: Red LED ON at alarm
Automatic Gain Control circuit
Response time adjustment
Antenna directional adjustment (horizontally ±90°, vertically ±10°)
Monitor jack output
Pole or wall mount

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Protection distance	16.5ft. (5m) to 330ft. (100m)
Max. arrival distance	Approx. 660ft. (200m)
Microwave	24.12GHz
Detection system	Microwave
Response time	0.04sec. to 0.3sec. (Variable using POT)
Supply voltage	12 to 28V DC
Alarm LED (Receiver)	Red LED Lighting at alarm
Transmission LED	Green LED Lighting at signal transmission

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Protection distance	16.5ft. (5m) to 330ft. (100m)
Max. arrival distance	Approx. 660ft. (200m)
Microwave	24.12GHz
Detection system	Microwave
Response time	0.04sec. to 0.3sec. (Variable using POT)
Supply voltage	12 to 28V DC
Alarm LED (Receiver)	Red LED Lighting at alarm
Transmission LED	Green LED Lighting at signal transmission

Note: Please read description carefully. Do not base your order on the picture presented.
