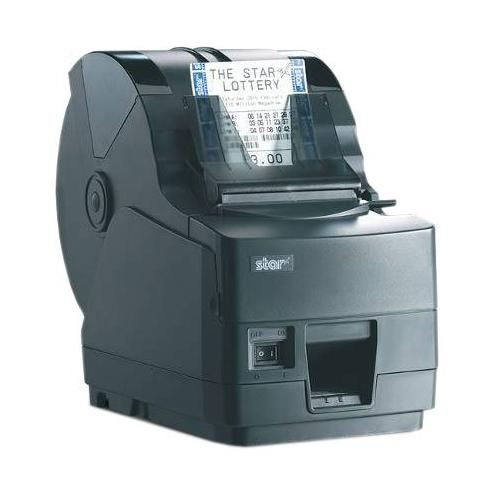

Star Micronics 39462010 TSP1043D-24GRYTSP1000 Thermal Printer, Gray

Direct Thermal, 80 mm, 203 dpi, Serial Interface. Color: Gray. Order interface cable and power supply separately. See accessories. Also known as TSP1043D-24GRY.

High-Capacity Thermal Printer with Ticket and Receipt Stacker

The Star TSP1000 features high speed output (up to 180 mm/sec), easy loading of the large paper roll (up to 180 mm diameter) capacity, the ability to hold various paper widths (from 45 to 82.5 mm) and an integrated ticket stacker. The TSP1000's ticket stacker can hold up to 30 tickets and features a fitted sensor to prevent overloading.

Features:

• Maximum Mono Print Speed: 7.09 in/s
• Maximum Print Resolution: 203 dpi
• Print Color: Monochrome
• Number of Columns: 40
• Maximum Print Width: 3.15"
• Recommended Use: Receipt Print
• Cutter
• Barcode Symbology Supported: PDF-417

Physical Characteristics

• Height: 9.8"
• Width: 6.3"
• Depth: 12.1"
• Form Factor: Desktop
• Color: Gray

Interfaces/Ports

• Serial Port: Yes

Other

• Green Compliant: Yes
• Green Compliance Certificate/Authority: RoHS
• Platform Supported: PC
• Includes Only:
  • TSP1043C Receipt Printer
  • User Manual
  • Set Up Guide
  • Paper Stopper
  • Power Switch Cover
  • Ferrite Core
  • Roll Paper Holders
  • Roll Paper Shaft

Media Types & Handling

• Maximum Label Width: 3.25"
• Media Type: Receipt
• Media Thickness: 5.91 mil
• Media Sensor:
  • Reflective Media Sensor
  • Paper Low Sensor
  • Out Of Paper Sensor
  • Media Door Open Sensor
• Maximum Roll Diameter: 7.09"

Fonts & Emulation

• Language Emulation:
  • ESC/POS
  • Star Line Mode
  • Star Page Mode

Memory

• Standard Memory: 2 MB
• Memory Technology: SRAM
• Flash Memory: 16 MB

Cutter

• Cutting Method: Automatic

Power Description

• Input Voltage: 24 V DC
