| Image Sensor | 1280x800 (megapixel) CMOS |
| Illumination | White LED & Red LED (622 nm-628 nm) |
| Aiming | Green LED (515 nm-535 nm) |
| Symbologies | - 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode.
- 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128
|
| Resolution* | ≥3 mil |
| Typical Depth of Field* | - EAN-13: 50 mm-495 mm (13 mil)
- Code39: 85 mm-220 mm (5 mil)
- PDF417: 70 mm-215 mm (6.7 mil)
- Data Matrix: 50 mm-220 mm (10 mil)
- QR Code: 20 mm-325 mm (15 mil)
|
| Scan Angle | - Pitch: ±55°
- Roll: 360°
- Skew: ±55°
|
| Field of View | Horizontal 39°, Vertical 24° |
| Min Symbol Contrast | 25% |
| Driver's License Parsing | Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification. |
| Communication Modes | Synchronous, asynchronous and batch mode |
| Radio Technology | Bluetooth 5.0 |
| Communication Distance | 50m/164 ft (direct line of sight in open air) |
| Memory Capacity | ≥15000 pieces of Code 128 (20 byte of each Code 128) |
| Battery | 2400 mAh lithium-ion battery |
| Expected Charge Time | 4 hours (with power adapter) |
| Expected Battery Life | 12 hours of continuous operation (scan once per 6 seconds) |
| Interface | USB |
| Operating Voltage | 5VDC±5% |
| Dimensions | 113 (W) x 71 (D) x 158 (H) mm |
| Weight | 214g |
| Colors | Black |
| Notification | Beep, LED |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Battery Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5%~95% (non-condensing) |
| ESD | ±8 KV (air discharge); ±4 KV (contact discharge) |

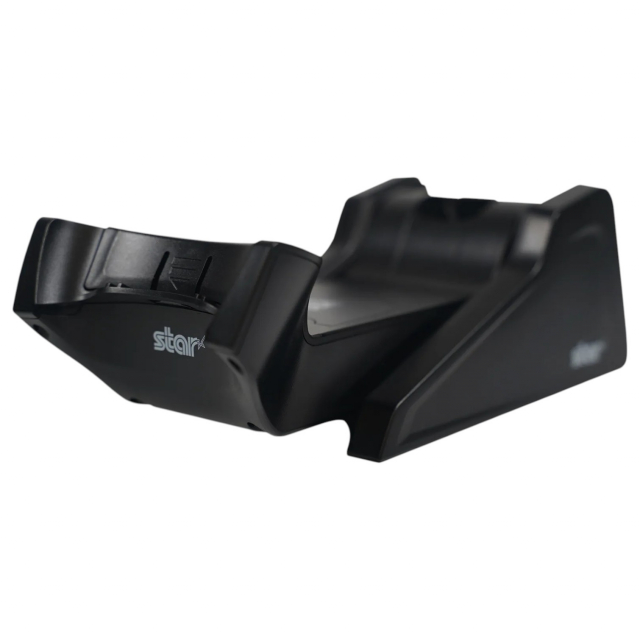

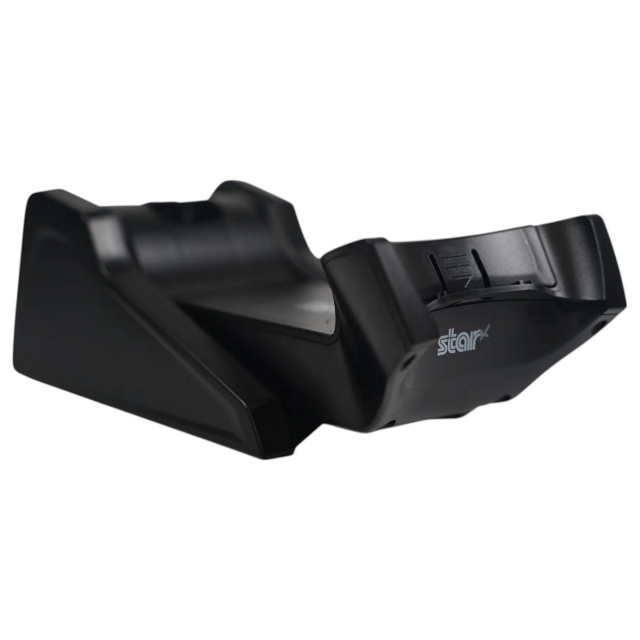

| Drop | Scanner: 1.2 m/3.9 ft Cradle: 1 m/3.3 ft |
| Sealing | IP42 |
