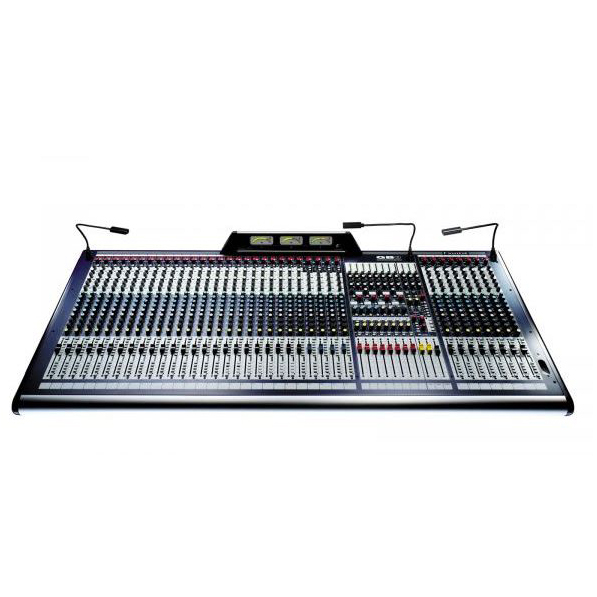

Soundcraft GB8 32CH GB8 Series 32-Channel Large Venue Mixer

Features:

• 32 channel frame size
• 19 busses
• 4 full feature stereo channels
• 4 stereo returns
• 8 Aux sends (all are pre/post switchable)
• 8 subgroups (SWAP with all 8 Auxes)
• 11x4 output matrix
• Record output with limiter
• Alternate stereo output with limiter
• 1kHz oscillator
• Metered with 3 high definitions LED VU meters (L/C/R)
• Internal jumpers switch pre-fade Aux sends to pre-EQ
• GB30 mic preamp and precision equalization circuitry
• Direct outputs on every channel
• Talkback facility
• 100mm faders
• Switchable 48V phantom powering on every channel
• 18dB/octave high pass filter
• 4 mute groups
• 12-segment LED metering

The GB8 (8-bus) console is packed with the features you need to create a memorable FOH and monitor mix, combining totally re-engineered circuit topology with ground-breaking GB30 mic preamp and EQ designs to deliver a sonic performance rivaling many high-price, high-end consoles. The GB8 has plenty of bus power for sophisticated mixing applications. All eight Aux master controls can be swapped with eight Groups, and all Auxes are pre/post switchable globally per Aux bus from the Master Section. In addition to the eight Groups, the GB8 has L/C/R and eight Aux busses. Four mute groups provide quick and easy muting of groups of channels, ideal for scene changes or where groups of instruments need to be silenced. And the output matrix is essential when different zones in a venue require specifically tailored mixes, enabling the operator to create sub-mixes of the Group, L-R mix and C (mono) busses. Unlike other mixers in their class, GB Series consoles are built to last with a rigid steel chassis, high quality vertically mounted fiberglass PCB channel strips and individually nutted potentiometers ensuring reliability in both fixed installations and on the road. And because Soundcraft understands the way that lives sound engineers work, you'll find an intuitive control surface and a conveniently angled rear connector panel, so you can do all your patching without ever leaving the mix position.
