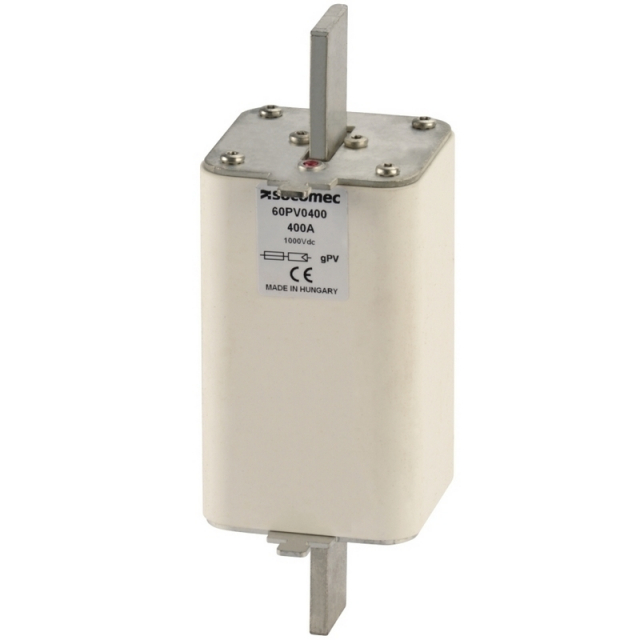

Socomec 60PV0400 Photovoltaic Knife Edge Fuse gPV S2XL 1000VDC 400A

Features:

• High breaking capacity
• Product designed for photovoltaic systems
• Increased reliability
• Improved safety
• ISC MAX: short-circuit current of the string related to excess sunshine
• MRI: maximum permissible reverse current
• In: fuse rating or nominal fuse current (at 25°C in an RM fuse base)
• Nc: number of strings in parallel
• UE: maximum fuse operating voltage
• UOC MAX: maximum voltage of an open circuit in lowest temperature conditions

Compliance with standards

• IEC 60269-6
• IEC 60269-1
• IEC 60269-2

gPV fuse protect facilities against surges related to reverse currents that can occur in photovoltaic systems.

When to protect

You must protect the PV strings from surges if the current delivered by the set minus one of the parallel strings is greater than the reverse current supported by the type of modules used in this generator.

How to protect

Protecting from overcurrents involves ensuring that both polarities are functionally grounded whether the DC is connected or not.
