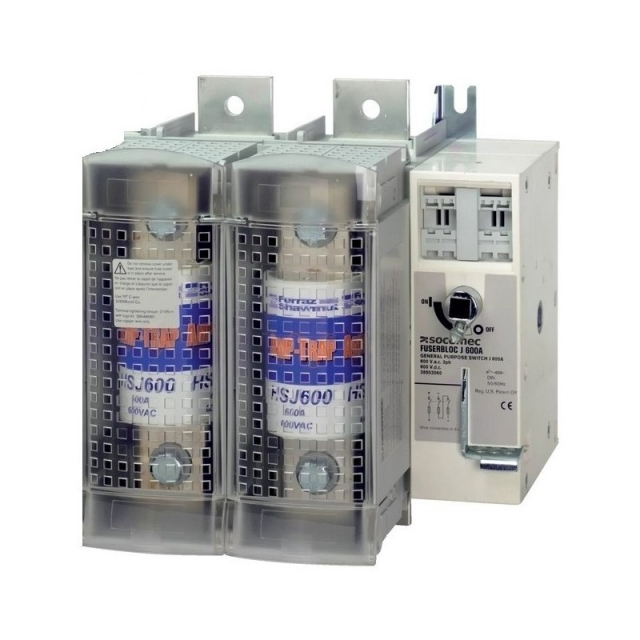

Socomec 38502060 Fuserbloc Switch Discon Fuse 600A 2 Poles UL Fuse J

Socomec, 38502060, Fuserbloc Switch-Discon-Fuse Ext&Dir F/L R OP-600A-2P-UL-Fuse J

Features:

• Improved safety
• High breaking capacity
• Multi-use
• Simplified use
• For fuses up to 600 A
• Up to 200 kA
• AC voltage from 208 V to 600 V
• Accepts Class CC, J and L fuses
• 2P

Compliance with standards

• IEC 60947-3
• UL489 (box 1 and 2)
• UL 98 (box 4 to 8)
• CSA 22.2 #4 (box 1 and 2)
• CSA 22.2 #5 (box 4 to 8)
• NFPA 79 (2002 version)

Fuserbloc UL units are manually-operated multipole fuse load break switches with external right front-side operation and comply with UL and CSA standards. They provide make and break on load and safety isolation and protection against overcurrent for any low voltage electrical circuit. The switches use double-pole isolator contacts to ensure complete isolation of the fuse when the switch is in the "OFF" position.

These devices are suitable for use as disconnectors for motors and industrial control panels on service entrance equipment, final panelboards, distribution switchboards, industrial control equipment or motor control centres. This range is comes in right front-side, direct or external control, in 2 poles and up to 600 A.
