Shuttle XH1100V-Q25296 XH110V XPC Slim 3.5 Liter PC, I7-6700

  • Brand Shuttle
  • Part # XH1100V-Q25296
  • Model # XH110V
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

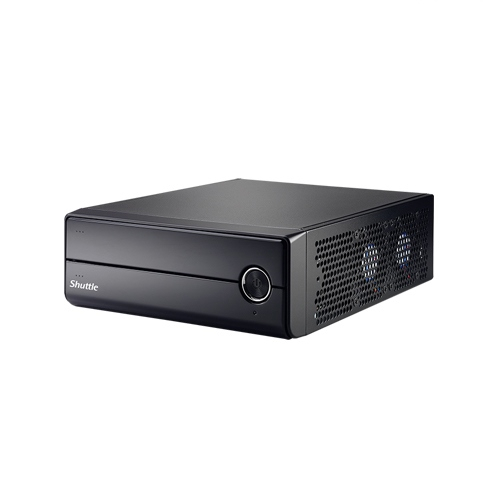

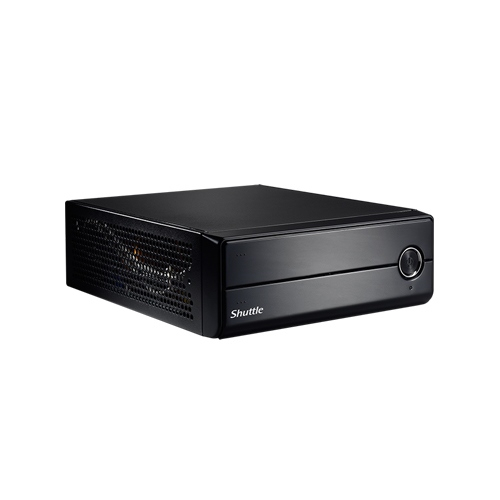

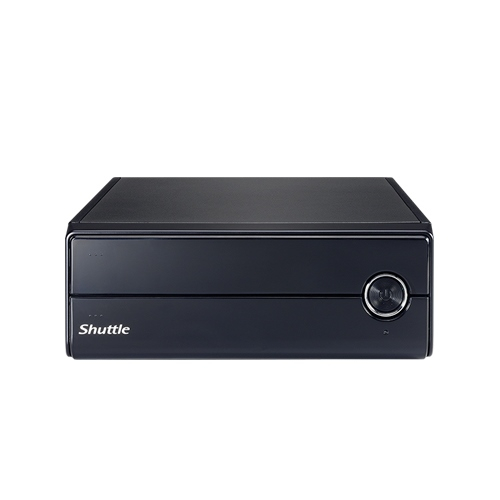

    Shuttle, XH1100V-Q25296, XPC Slim XH110V 3.5 Liter PC, Intel i7-6700, 8GB RAM, 500GB SSD, DVD-RW, VESA Mount, Windows 10 Pro

    Shuttle's new XH110 and XH110V are compact 3-liter media players that feature robust performance and can be customized to drive highly interactive kiosk, vending machine, and POS applications. Equipped with Intel H110 chipset, this series supports Intel 6th generation Skylake LGA 1151 65W processors and delivers 4K/Ultra HD video content. With two video outputs, both can support dual screens independently. The series has PS/2, USB 2.0, USB 3.0, SATA 6Gbps, RS232, and Intel Dual Gigabit LAN to be found at the front and rear of the machine. With one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A expansion slots, you can easily install an M.2 SSD, Wi-Fi module or other compatible devices providing strong expansion capability and network connectivity. Thanks to its heat pipe and smart fan cooling technology design, the series is 24/7 certified and runs reliably cool in 0-50°C temperatures.

    Features:

    • Support Intel 6th generation Core processors
    • Equipped with an Intel 100 series Chipset
    • Great Connectivity
    • Supports an Optical Disk Drive (ODD)
    • Supports an optional 3.5" HDD
    • Heat pipe cooling technology
    • Operable in 0-50°C environments
    • Support 4K Ultra HD
    • Dual-screen display Outputs
    • Support two M.2 expansion slots
    • Support Intel Dual Gigabit LAN
    • 24/7 Certified
    • Support VESA Mount Capability
    • Support Power on by RTC
    • The Watchdog Security Protection
    • Operating System Support: Windows 7, Windows 8.1, Windows 10, Linux
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Form FactorMini-ITX MB
    3.5 L chassis
    ProcessorSupport Intel Skylake Core i3/i5/i7, Pentium, Celeron CPU max. TDP 65W
    ChipsetIntel H110 Express chipset
    Memory2 x 204 pin DDR3L SODIMM slots,16GB per DIMM (Max 32GB)
    Dual Channel DDR3L 1600 Mhz
    Video OutputHDMI + Display port dual display
    AudioRealtek ALC662 5.1 channel High Definition Audio
    EthernetIntel i211+i219LM Dual Lan
    100Mb/s and 1Gb/s operation
    Support Wake-On-LAN function
    Support Teaming function
    Storage InterfaceSATA 6.0Gb/s interface
    Onboard Connectors(3) SATA connectors
    (2) 1x5 pin USB 2.0 header
    (1) ATX main power connector
    (1) ATX 12V power connector
    (2) set 4pin fan connectors

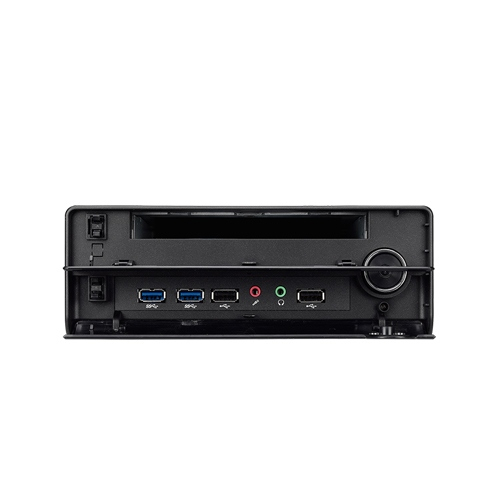

    Front Panel(2) USB 2.0 ports
    (2) USB 3.0 ports
    (1) Microphone-In
    (1) Earphone-Out
    Power-On button
    Power LED
    HDD LED

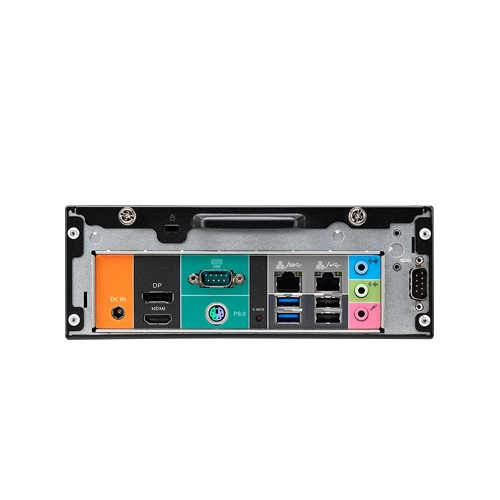

    Back Panel(2) RJ45 Gigabit LAN port
    (1) Display port
    (1) HDMI
    (2) USB 2.0 ports
    (2) USB 3.0 ports
    (1) RS232
    (1) RS232/RS422/RS485
    (1) Line in port
    (1) Line out port
    (1) MIC in port
    (1) Clear CMOS button
    (1) DC in
    (1) PS/2 port
    (1) Kensington lock
    (2) Wireless Antenna fixture
    Drive Bays(1) 2.5" HDD / SSD bay
    (1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD
    DimensionsXH110V: 240(L) x 200(W) x 72(H) mm
    XH110 : 238(L) x 200(W) x 72(H) mm
    PowerInput:100- 240V AC
    Output: 19V/4.74A or 12V/7.5A DC
    90W 19V Adapter bundled
    AccessoriesXPC Multilanguage Quick User Guide
    XPC DVD Driver
    (1) Power cord
    (1) SATA cable (pre-install for HDD)
    (1) SATA cable (pre-install for ODD)
    (1) 4 pin to SATA power cable
    Screws
    Expansion Slot(1) M.2 2280 Type M key socket
    (1) M.2 2230 Type A,E Key socket
    OS SupportWindows 10
    Linux
    Remark1. PCH4 3.5" HDD rack accessory can support
    XH110/XH110V.
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Form FactorMini-ITX MB
    3.5 L chassis
    ProcessorSupport Intel Skylake Core i3/i5/i7, Pentium, Celeron CPU max. TDP 65W
    ChipsetIntel H110 Express chipset
    Memory2 x 204 pin DDR3L SODIMM slots,16GB per DIMM (Max 32GB)
    Dual Channel DDR3L 1600 Mhz
    Video OutputHDMI + Display port dual display
    AudioRealtek ALC662 5.1 channel High Definition Audio
    EthernetIntel i211+i219LM Dual Lan
    100Mb/s and 1Gb/s operation
    Support Wake-On-LAN function
    Support Teaming function
    Storage InterfaceSATA 6.0Gb/s interface
    Onboard Connectors(3) SATA connectors
    (2) 1x5 pin USB 2.0 header
    (1) ATX main power connector
    (1) ATX 12V power connector
    (2) set 4pin fan connectors
    Front Panel(2) USB 2.0 ports
    (2) USB 3.0 ports
    (1) Microphone-In
    (1) Earphone-Out
    Power-On button
    Power LED
    HDD LED
    Back Panel(2) RJ45 Gigabit LAN port
    (1) Display port
    (1) HDMI
    (2) USB 2.0 ports
    (2) USB 3.0 ports
    (1) RS232
    (1) RS232/RS422/RS485
    (1) Line in port
    (1) Line out port
    (1) MIC in port
    (1) Clear CMOS button
    (1) DC in
    (1) PS/2 port
    (1) Kensington lock
    (2) Wireless Antenna fixture
    Drive Bays(1) 2.5" HDD / SSD bay
    (1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD
    DimensionsXH110V: 240(L) x 200(W) x 72(H) mm
    XH110 : 238(L) x 200(W) x 72(H) mm
    PowerInput:100- 240V AC
    Output: 19V/4.74A or 12V/7.5A DC
    90W 19V Adapter bundled
    AccessoriesXPC Multilanguage Quick User Guide
    XPC DVD Driver
    (1) Power cord
    (1) SATA cable (pre-install for HDD)
    (1) SATA cable (pre-install for ODD)
    (1) 4 pin to SATA power cable
    Screws
    Expansion Slot(1) M.2 2280 Type M key socket
    (1) M.2 2230 Type A,E Key socket
    OS SupportWindows 10
    Linux
    Remark1. PCH4 3.5" HDD rack accessory can support
    XH110/XH110V.
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
