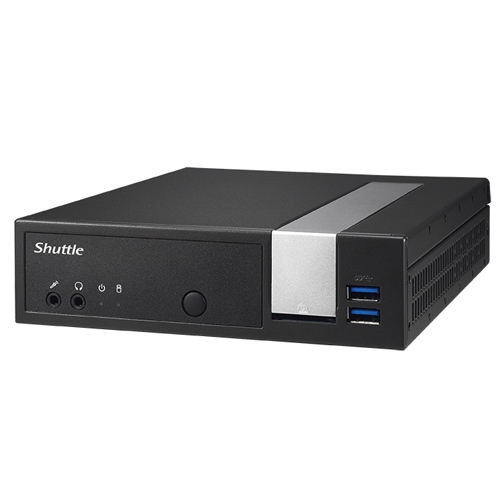

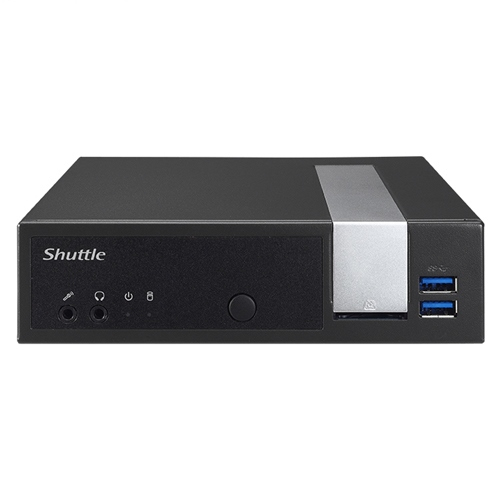

Shuttle DL1000J-Q27621 DL10J XPC Slim 1.3 Liter PC, Celeron J4005, OS

  • Brand Shuttle
  • Part # DL1000J-Q27621
  • Model # DL10J
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Shuttle, DL1000J-Q27621, XPC Slim DL10J 1.3 Liter PC, Intel Celeron J4005, 4GB RAM, 32GB M.2, 256GB SSD, Linux

    Shuttle's entry-level PC now gets a big boost. Achieve higher performance and productivity levels at a lower cost with Shuttle's new slim XPC - DL10J. Powered by the new generation of Intel Gemini Lake Celeron J4005 processor, the integrated graphics is based on Intel's powerful HD graphics 600 that supports hardware acceleration for 4K video encoding/decoding with H.265 and VP9. The DL10J features a wealth of connectivity options including USB 2.0, USB 3.1 Gen 1, RS232 ports and the optional 4G/LTE SIM card adapter (accessory WWN01). Built-in HDMI, DisplayPort and D-sub outputs make this model ideal as a multi-display solution for office and digital signage applications.

    Features:

    • Intel Gemini Lake Platform Technology
    • Support 4K Ultra HD
    • Hardware Support for Video Playback
    • Multiple Video Outputs
    • High Speed Wired and Wireless Network
    • Fanless Design
    • Peripheral Connectivity
    • VESA Mount-Ready
    • Support Power on by RTC
    • 24/7 Nonstop Operation
    • The Watchdog - protecting system security
    • Operating System Support: Windows 10 64bit, Linux
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Form Factor1.3L slim form factor
    ProcessorIntel Gemini Lake J4005 Dual Core processor
    Memory2 x DDR4 SO-DIMM, supports up to 8GB DDR4 2400 MHz
    Video OutputSupport HDMI 1.4 + DispalyPort + VGA triple independent output
    Intel generation HD Graphic engine
    AudioRealtek ALC269
    2 channel High Definition Audio
    EthernetIntel i211 Gigabit LAN controller
    Supports 10/100/1000 Mb/Sec.
    Support wake ON LAN (WOL) feature
    802.11b/g/n WLAN support (1T1R)
    Storage InterfaceSATA for HDD/SSD
    SD card reader
    Front Panel(1) Power button
    (1) Power Led
    (1) HDD Led
    (1) SD Card reader
    (2) USB 3.0 port
    (1) MIC-IN
    (1) Audio out
    Back Panel(1) RJ45 Gigabit LAN port
    (1) Display port
    (1) HDMI port
    (4) USB 2.0 ports
    (1) DC in
    (1) RS232/RS422/RS485
    (1) RS232
    (1) VGA
    (1) External power on/Clear CMOS header
    (2) Connectors for WLAN antenna
    Drive Bays(1) 2.5" HDD Max. (9.5 mm) / SSD bay
    Dimensions190(L) x 165(W) x 43(H) mm
    PowerInput: 100- 240V AC
    Output: 19V/2.1A or 12V/3.33A DC
    40W 19V Adapter bundled
    AccessoriesXPC Multilanguage Quick User Guide
    XPC DVD Driver
    VESA screw pack
    VESA bracket
    40W adapter
    Screw pack
    External Antenna
    Power cord
    Expansion Slot(1) M.2 Type M (2280)
    (1) M.2 Type E (2230)
    OS SupportWindows 10 64 bit
    Ubuntu Linux
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Form Factor1.3L slim form factor
    ProcessorIntel Gemini Lake J4005 Dual Core processor
    Memory2 x DDR4 SO-DIMM, supports up to 8GB DDR4 2400 MHz
    Video OutputSupport HDMI 1.4 + DispalyPort + VGA triple independent output
    Intel generation HD Graphic engine
    AudioRealtek ALC269
    2 channel High Definition Audio
    EthernetIntel i211 Gigabit LAN controller
    Supports 10/100/1000 Mb/Sec.
    Support wake ON LAN (WOL) feature
    802.11b/g/n WLAN support (1T1R)
    Storage InterfaceSATA for HDD/SSD
    SD card reader
    Front Panel(1) Power button
    (1) Power Led
    (1) HDD Led
    (1) SD Card reader
    (2) USB 3.0 port
    (1) MIC-IN
    (1) Audio out
    Back Panel(1) RJ45 Gigabit LAN port
    (1) Display port
    (1) HDMI port
    (4) USB 2.0 ports
    (1) DC in
    (1) RS232/RS422/RS485
    (1) RS232
    (1) VGA
    (1) External power on/Clear CMOS header
    (2) Connectors for WLAN antenna
    Drive Bays(1) 2.5" HDD Max. (9.5 mm) / SSD bay
    Dimensions190(L) x 165(W) x 43(H) mm
    PowerInput: 100- 240V AC
    Output: 19V/2.1A or 12V/3.33A DC
    40W 19V Adapter bundled
    AccessoriesXPC Multilanguage Quick User Guide
    XPC DVD Driver
    VESA screw pack
    VESA bracket
    40W adapter
    Screw pack
    External Antenna
    Power cord
    Expansion Slot(1) M.2 Type M (2280)
    (1) M.2 Type E (2230)
    OS SupportWindows 10 64 bit
    Ubuntu Linux
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
