Shuttle DH9U DH9 Series Multi-Touch PC, Braswell N3050

  • Brand Shuttle
  • Part # DH9U
  • Model # DH9
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

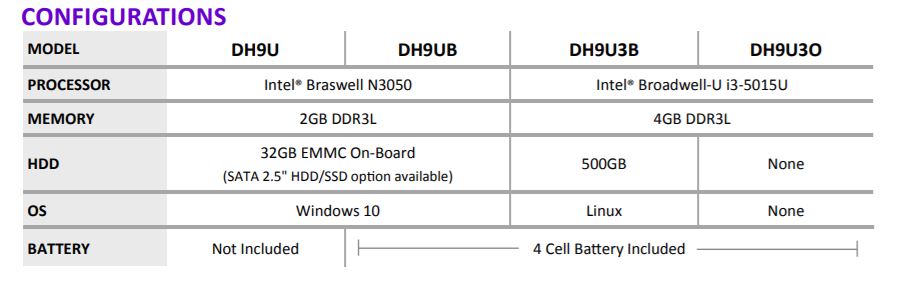

    Shuttle, DH9U, DH9 Series Multi-Touch PC, Black, 19.5" LED, Intel Braswell N3050 CPU, 2GB DDR3L RAM, 32GB EMMC, Windows 10.

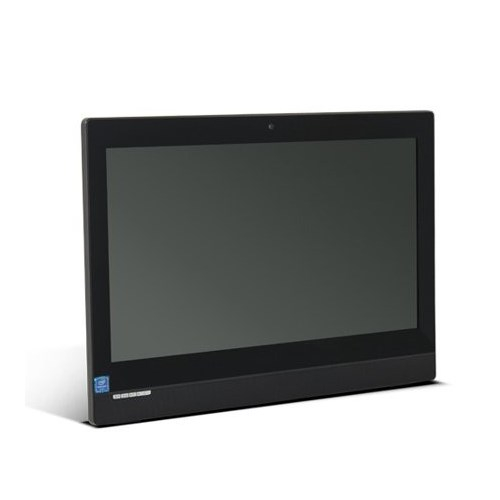

    Shuttle's DH9 All-in-One computer includes a 19.5-inch High Definition 10-point touch screen and is powered by an Intel Braswell N3050 dual-core processor or Intel Broadwell-U i3 5015U. This All-in-One PC is perfect to power kiosks, POS and queuing systems for retail, wayfinding, small-office/home-office computing and other interactive applications. The DH9 stands out from other AIO's with its optional rechargeable battery as backup in case of power outages. It is also includes a stand and there is an optional VESA Mounting plate for easy wall installation.

    Features:

    • All-In-One PC for Turnkey Business and Home
    • Multi-Touch Screen
    • Intel Braswell Platform
    • Rechargeable Battery Option
    • Wake On Lan & Power On by RTC
    • VESA Mountable
    • High-Speed Storage Interface
    • Gonfigurability

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    ProcessorIntel Braswell N3050/N3060 1.6 GHz Dual Core
    Intel Broadwell-U i3-5005U/i3-5015U
    MemoryDDR3L 1600MHz x 1, 8 GB max
    Touch PanelMulti-Touch (10 points), 1600 x 900 resolution, 19.5" HD 16:9 LCD and Anti-Glare
    Connector(1) SATA, (1) LPC, (1) Fan connector, (1) USB connector
    Video GraphicsIntel HD Graphics
    Video Output(1) HDMI
    Webcam2.0M Pixel & Internal MIC
    BIOSSupports PnP, ACPI 3.0, Supports external USB flash memory card boot up
    AudioRealtek ALC269 2 Channel HD audio
    Ethernet10Mb/sec, 100Mb/sec, 1000MB/sec operation
    Supports Wake-On-LAN & VLAN tagging
    Supports 802.11 b/g/n/ac WLAN + Bluetooth 4.0 (eTL8723BE PCle)
    Wi-FiIntel 3165 802.11 b/g/n/ac + Bluetooth 4.2
    StorageSATA 6 GB/s interface, 2.5" HDD/SSD x 1 (optional)
    Top Panel(1) SD Card Reader

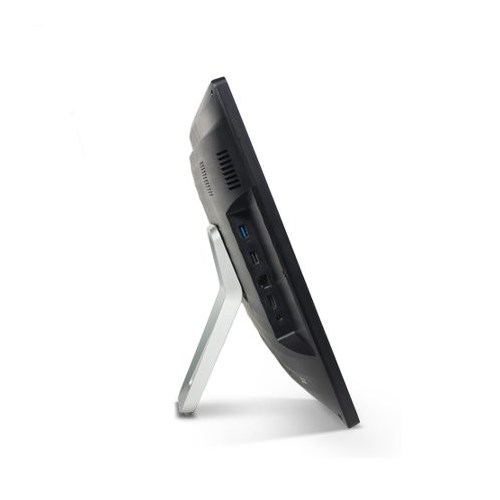

    Side Panel(1) HDMI
    (1) USB 2.0 port
    (1) USB 3.0 port
    (1) RJ45 Ethernet port
    (1) DC-in
    (1) Slim 9.5mm DVD-RW (optional)
    Back Panel(4) USB 2.0 ports
    (1) Headphone/Line out
    (1) MIC-in jack
    (1) Kensington Lock
    Dimensions19.1(L) x 1.6(W) x 13.5(H) inches
    PowerInput: 100 - 240V AC
    Power Plug region specific
    65W power adapter
    Battery4 cell battery (optional)*
    AccessoriesPower adapter
    VESA mounting plate (optional)
    OS recovery disk
    ODDODD add-on option supported
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    ProcessorIntel Braswell N3050/N3060 1.6 GHz Dual Core
    Intel Broadwell-U i3-5005U/i3-5015U
    MemoryDDR3L 1600MHz x 1, 8 GB max
    Touch PanelMulti-Touch (10 points), 1600 x 900 resolution, 19.5" HD 16:9 LCD and Anti-Glare
    Connector(1) SATA, (1) LPC, (1) Fan connector, (1) USB connector
    Video GraphicsIntel HD Graphics
    Video Output(1) HDMI
    Webcam2.0M Pixel & Internal MIC
    BIOSSupports PnP, ACPI 3.0, Supports external USB flash memory card boot up
    AudioRealtek ALC269 2 Channel HD audio
    Ethernet10Mb/sec, 100Mb/sec, 1000MB/sec operation
    Supports Wake-On-LAN & VLAN tagging
    Supports 802.11 b/g/n/ac WLAN + Bluetooth 4.0 (eTL8723BE PCle)
    Wi-FiIntel 3165 802.11 b/g/n/ac + Bluetooth 4.2
    StorageSATA 6 GB/s interface, 2.5" HDD/SSD x 1 (optional)
    Top Panel(1) SD Card Reader
    Side Panel(1) HDMI
    (1) USB 2.0 port
    (1) USB 3.0 port
    (1) RJ45 Ethernet port
    (1) DC-in
    (1) Slim 9.5mm DVD-RW (optional)
    Back Panel(4) USB 2.0 ports
    (1) Headphone/Line out
    (1) MIC-in jack
    (1) Kensington Lock
    Dimensions19.1(L) x 1.6(W) x 13.5(H) inches
    PowerInput: 100 - 240V AC
    Power Plug region specific
    65W power adapter
    Battery4 cell battery (optional)*
    AccessoriesPower adapter
    VESA mounting plate (optional)
    OS recovery disk
    ODDODD add-on option supported
