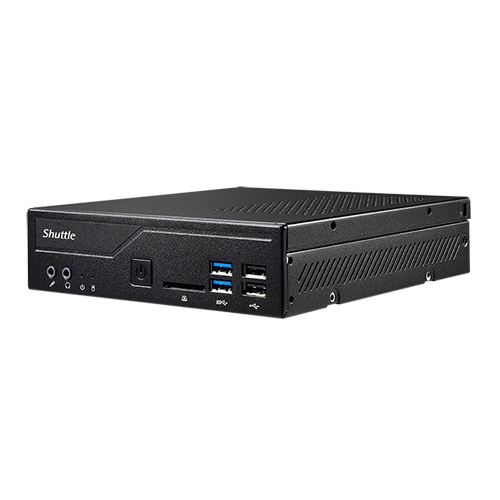

Shuttle DH3100V2-Q28876 XPC Slim DH310V2 1.3 Liter PC, I7-8700

  • Brand Shuttle
  • Part # DH3100V2-Q28876
  • Model # DH310V2
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Shuttle, DH3100V2-Q28876, XPC Slim DH310V2 1.3 Liter PC, Intel i7-8700, 32GB (2x16GB) DDR4, 2.5" 500GB SSD

    Meet the new DH310V2, the successor of our best-selling Slim DH310. Supporting Intel's 8th gen processors based on the LGA1151v2 socket, the DH310V2 provides up to 6 core of performance boost for effortless multitasking and smooth video playback. With built-in HDMI 2.0a and DisplayPort ports, users can configure two 4K displays easily. This compact model also includes eight USB ports and two serial ports for convenient, flexible peripheral options. Measuring just 43 mm in height, there's still room for 2.5" hard drive as well as dual M.2 expansion cards and support for up to 64GB of DDR4 memory. The DH310V2 is the perfect choice as an entry-level PC for digital signage, POS, kiosk, Office Desktop and many more.

    Features:

    • Intel 8th Generation Processors
    • 4K UHD Experience
    • Dual Display Productivity
    • High Storage Capacity with M.2
    • Excellent Connectivity
    • High-Speed Dual Gigabit LAN
    • Operable in 0-50°C
    • Exclusive Cooling Technology
    • VESA Mount-Ready
    • 24/7 Nonstop Operation
    • Support Power on by RTC
    • The Watchdog - protecting system security
    • Operating System Support: Windows 10 64bit, Linux
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Form Factor1.3L chassis
    ProcessorSupport Intel 8th Generation Core i3/i5/i7, Pentium, Celeron LGA1151v2 CPU max. TDP 65W
    ChipsetIntel H310 Express chipset
    Memory2 x DDR4 SODIMM slots, 32GB per DIMM (Max 64GB)
    DDR4 2400/2666 MHz
    Video OutputHDMI 2.0 + DisplayPort, Dual video output
    4K playback (Dual channel memory recommended)
    Integrated into CPU
    AudioRealtek ALC662 High Definition Audio
    EthernetIntel i211 x 2 Dual Lan
    10Mb/s, 100Mb/s, 1Gb/s operation
    Support Wake-On-LAN function
    Support Teaming function
    Storage InterfaceSATA 6.0Gb/s interface
    Onboard Connectors(1) 4pin fan connector
    (1) VGA (For PVG01 use)
    (1) SATA connector w/power
    (1) Front audio header
    (1) Auto power on header
    (1) RS232 voltage switch

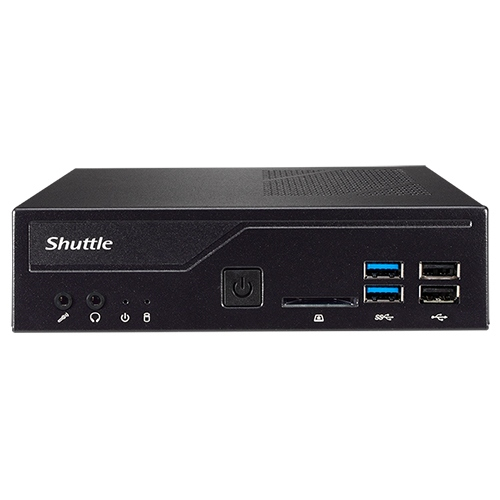

    Front Panel(2) USB 2.0 ports
    (2) USB 3.1 Gen1 ports
    (1) Microphone-In
    (1) Earphone-Out
    (1) Power-On button
    (1) Power LED
    (1) HDD LED
    (1) SD Card reader

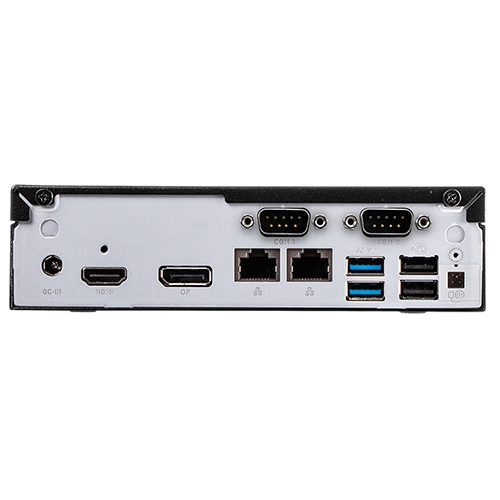

    Back Panel(2) RJ45 Gigabit LAN port
    (1) HDMI port
    (1) Display port
    (2) USB 2.0 ports
    (2) USB 3.1 Gen1 ports
    (1) RS232*
    (1) RS232/RS422/RS485*
    (1) External 4pin header
    (1) DC-in
    (2) Wireless Antenna fixture
    (1) Kensington lock
    Drive Bays(1) 2.5" HDD / SSD bay
    Dimensions190(L) x 165(W) x 43(H) mm
    Power90W Power Adapter
    Input: 100- 240V AC
    19V 4.74A DC or Output: 12V/7.5A DC
    AccessoriesXPC Multilanguage Quick User Guide
    XPC DVD Driver
    VESA mount
    VESA Screw pack
    Power cord
    Thermal Grease
    HDD Screw pack
    90W adapter
    Expansion Slot(1) M.2 2280 Type M key socket
    (1) M.2 2230 Type E key socket
    OS SupportWindows 10 64 bit
    Linux
    Remark*RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    Form Factor1.3L chassis
    ProcessorSupport Intel 8th Generation Core i3/i5/i7, Pentium, Celeron LGA1151v2 CPU max. TDP 65W
    ChipsetIntel H310 Express chipset
    Memory2 x DDR4 SODIMM slots, 32GB per DIMM (Max 64GB)
    DDR4 2400/2666 MHz
    Video OutputHDMI 2.0 + DisplayPort, Dual video output
    4K playback (Dual channel memory recommended)
    Integrated into CPU
    AudioRealtek ALC662 High Definition Audio
    EthernetIntel i211 x 2 Dual Lan
    10Mb/s, 100Mb/s, 1Gb/s operation
    Support Wake-On-LAN function
    Support Teaming function
    Storage InterfaceSATA 6.0Gb/s interface
    Onboard Connectors(1) 4pin fan connector
    (1) VGA (For PVG01 use)
    (1) SATA connector w/power
    (1) Front audio header
    (1) Auto power on header
    (1) RS232 voltage switch
    Front Panel(2) USB 2.0 ports
    (2) USB 3.1 Gen1 ports
    (1) Microphone-In
    (1) Earphone-Out
    (1) Power-On button
    (1) Power LED
    (1) HDD LED
    (1) SD Card reader
    Back Panel(2) RJ45 Gigabit LAN port
    (1) HDMI port
    (1) Display port
    (2) USB 2.0 ports
    (2) USB 3.1 Gen1 ports
    (1) RS232*
    (1) RS232/RS422/RS485*
    (1) External 4pin header
    (1) DC-in
    (2) Wireless Antenna fixture
    (1) Kensington lock
    Drive Bays(1) 2.5" HDD / SSD bay
    Dimensions190(L) x 165(W) x 43(H) mm
    Power90W Power Adapter
    Input: 100- 240V AC
    19V 4.74A DC or Output: 12V/7.5A DC
    AccessoriesXPC Multilanguage Quick User Guide
    XPC DVD Driver
    VESA mount
    VESA Screw pack
    Power cord
    Thermal Grease
    HDD Screw pack
    90W adapter
    Expansion Slot(1) M.2 2280 Type M key socket
    (1) M.2 2230 Type E key socket
    OS SupportWindows 10 64 bit
    Linux
    Remark*RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
