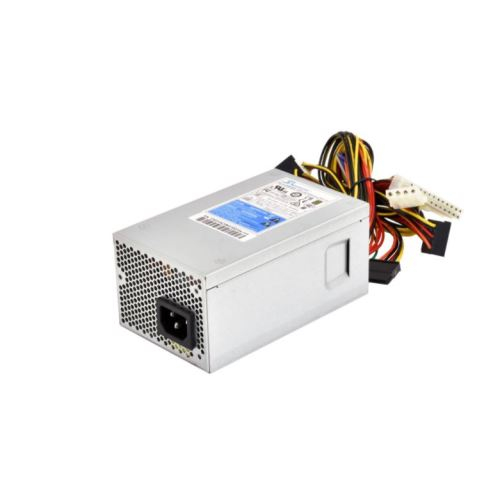

Seasonic SSP-300TGS TGS TFX Power Supply, 300 W

80PLUS Certified: Gold
  • Brand Seasonic
  • Part # SSP-300TGS
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Quantity
Share:
Ask a question

Options and Related Products

80PLUS Certified:
80PLUS Certified: Gold

Features:

  • SATA-ready
  • DC to DC converter design
  • High efficiency and reliability
  • Low ripple and noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100 % HiPot test
  • 100 % Burn-in, high temperature cycled on/of

This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC converter design and important protection features for safe operations. It is perfect for desktop of mini ITX cases and with its 80 PLUS® Gold rating it can achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is highly reliable.

For more information, please see Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
Input frequency50 / 60 Hz
Inrush current at cold start100 A max.
Efficiency80 PLUS Gold
Line regulation± 1 % (typical)
Load regulation± 5 % (typical)
Cross regulation± 5 % (typical)
Ripple / noise1 %
MTBF, full load at 25 °C ambient (excl. DC fan)> 100,000 hours
Active Power Factor Correction> 95 % (typical)
Total continuous power300W
Input Type100 - 240 VAC
Product Details
Input frequency50 / 60 Hz
Inrush current at cold start100 A max.
Efficiency80 PLUS Gold
Line regulation± 1 % (typical)
Load regulation± 5 % (typical)
Cross regulation± 5 % (typical)
Ripple / noise1 %
MTBF, full load at 25 °C ambient (excl. DC fan)> 100,000 hours
Active Power Factor Correction> 95 % (typical)
Total continuous power300W
Input Type100 - 240 VAC
