Schneider 25-1101929 Zirconia 3.3/92mm 0.1X V48-Mount XL Lens

Zoom: 0.1
  • Brand Schneider
  • Part # 25-1101929
  • Model # Zirconia
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Zoom:
    Zoom: 0.1

    Features:

    • Designed for 12k / 5 µm line scan sensors
    • Best azimuth marking
    • 400 nm to 1000 nm broadband AR-coating
    • Lockable aperture setting

    Applications:

    • FPD inspection
    • PCB inspection
    • High-resolution defect detection
    • AOI (Automated Optical Inspection)

    This lens is designed for 12k / 5µm line scan sensors but also can be used in many applications with area sensors up to 67mm diagonal. Optimized for a specific magnification of 0.1x the lens provides high performance in a small and compact package. The universal V48-Mount enables the best azimuth adjustment and the assembly of accessories like a focusing mount, extension tubes, and camera adapters.

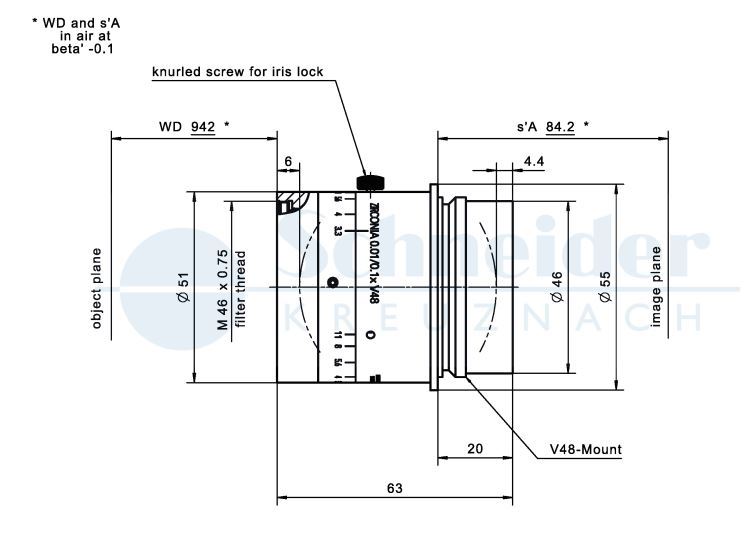

    Dimensions:

    For more information, please see Data Sheet

    See more product information See less
    Return and Warranty

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    TypeV48
    InterfaceV48-Mount
    Focal Length [mm]90
    F/# RangeF/3.3 - F/11
    Numerical Aperture [Object | Image]0.01 | 0.14
    Maximum Sensor Size [mm]62.5
    Maximum Angle of View [°]35
    Recommendation Magnification Range-0.1 (-0.15 - -0.07)
    Recommendation Working Distance Range [mm]644 - 1329
    Maximum Mechanical Focus Travel [mm]-
    Filter Thread [mm]M46 x 0.75
    Storage Temperature [°C]-25 - +70
    Net Weight [Standard] [g]246
    F'Eff [mm]89.94
    SF [mm]-49.67
    S'F' [mm]59.59
    HH' [mm]-17.98
    ß'P1.07
    SEP [mm]34.07
    S'AP [mm]-37.00
    Σd [mm]52.64
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    TypeV48
    InterfaceV48-Mount
    Focal Length [mm]90
    F/# RangeF/3.3 - F/11
    Numerical Aperture [Object | Image]0.01 | 0.14
    Maximum Sensor Size [mm]62.5
    Maximum Angle of View [°]35
    Recommendation Magnification Range-0.1 (-0.15 - -0.07)
    Recommendation Working Distance Range [mm]644 - 1329
    Maximum Mechanical Focus Travel [mm]-
    Filter Thread [mm]M46 x 0.75
    Storage Temperature [°C]-25 - +70
    Net Weight [Standard] [g]246
    F'Eff [mm]89.94
    SF [mm]-49.67
    S'F' [mm]59.59
    HH' [mm]-17.98
    ß'P1.07
    SEP [mm]34.07
    S'AP [mm]-37.00
    Σd [mm]52.64
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
