Schneider 23-1098689 Tourmaline 2.8 TFL-Mount Standard Lens

Focal Size (mm): 2.8/50, Mount Type: TFL-Mount
  • Brand Schneider
  • Part # 23-1098689
  • Model # Tourmaline
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Focal Size (mm):
    Focal Size (mm): 2.8/50
    Mount Type:
    Mount Type: TFL-Mount

    Schneider Optics, 23-1098689, Tourmaline 2.8/50mm TFL-Mount Standard Lens

    Features:

    • Compact design
    • Robust mechanics
    • Image circle 24 mm
    • Low chief ray angle

    Applications:

    • Machine Vision
    • AOI (Automated Optical Inspection)
    • 3D and 2D measurement
    • Traffic and Surveillance

    This high-resolution 1.3" TFL-Mount lens is compact and robust and therefore ideal for demanding imaging applications even in harsh environments. The optical design prevents shading with CRA-sensitive sensors and the special broadband AR coating enables the use either in the visible 400 to 700 nm or in the NIR 700 to 1000 nm range.

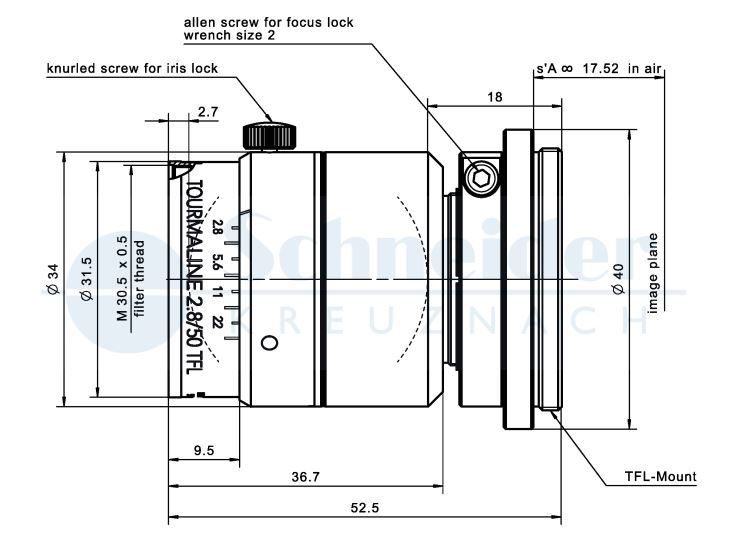

    Dimensions:

    For more information, please see Data Sheet

    See more product information See less
    Return and Warranty

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    TypeTFL
    InterfaceTFL-Mount
    Focal Length [mm]50
    F/# RangeF/2.8 - F/32
    Numerical Aperture [Object | Image]- | 0.17
    Maximum Sensor Size [mm]24
    Maximum Angle of View [°]27
    Recommendation Magnification Range-0.5 - 0
    Recommendation Working Distance Range [mm]131 - ∞
    Minimum Working Distance without Extension Tubes [mm]366
    Filter Thread [mm]M30.5 x 0.5
    Storage Temperature [°C]-25 - +70
    Net Weight [Standard] [g]135
    F'Eff [mm]50.51
    SF [mm]-33.61
    S'F' [mm]31.68
    HH' [mm]-3.07
    ß'P0.94
    SEP [mm]19.56
    S'AP [mm]-15.61
    Σd [mm]31.93
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    TypeTFL
    InterfaceTFL-Mount
    Focal Length [mm]50
    F/# RangeF/2.8 - F/32
    Numerical Aperture [Object | Image]- | 0.17
    Maximum Sensor Size [mm]24
    Maximum Angle of View [°]27
    Recommendation Magnification Range-0.5 - 0
    Recommendation Working Distance Range [mm]131 - ∞
    Minimum Working Distance without Extension Tubes [mm]366
    Filter Thread [mm]M30.5 x 0.5
    Storage Temperature [°C]-25 - +70
    Net Weight [Standard] [g]135
    F'Eff [mm]50.51
    SF [mm]-33.61
    S'F' [mm]31.68
    HH' [mm]-3.07
    ß'P0.94
    SEP [mm]19.56
    S'AP [mm]-15.61
    Σd [mm]31.93
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
