Buy Schaefer TW24HVW-PRB, 24" Twister Oscillating Circulation Fan, White

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Color:: Color: White

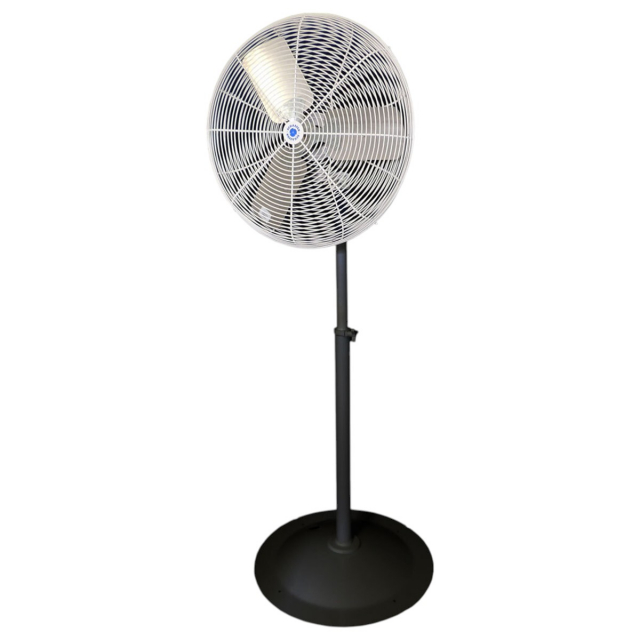

Schaefer, TW24HVW-PRB, 24" Twister Oscillating Circulation Fan, High Velocity, White OSHA Guards, Black Round Pedestal

Features:

Schaefer oscillation technology
2-speed high efficiency motor with 10-foot cord
OSHA compliant guards
90 degrees of total oscillation
45 degrees of fan head adjustability up or down
Low noise levels, quieter than a conversational voice
Fixed or portable mounting capabilities
Assembled in the USA

Geared for performance, Twister's oscillating motor utilizes the highest quality metal gear design for unparalleled strength, greater load capacity, and higher accuracy. Twister provides the versatility and performance needed to improve worker productivity and safety, whether aimed at a workstation or down an assembly line.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Air Velocity ( at 10')	950
Blade Color	Metallic
Brand	Schaefer
Cfm (free Air)	6700
Drive	Direct
Phase	1
Speeds	2
Vfd Compatible	No
Cfm/watt (free Air)	15.8
Cord	Included - Wired
Diameter (inches)	24
Frequency (hz)	60
Guard Color	White
Mount Type Included	Pedestal
Nameplate Amps	5.9
Number Of Wings	3
Power (hp)	1/2
Product Net Weight (lbs)	TBD
Performance Test #	721
Switch	On product
Voltage	115
Maximum Rpm	1075
Air Velocity ( at 5 Times Diameter)	TBD
Blade Material	Aluminum
Cfm (high)	6700
Cfm Calculation Standard	ANSI/AMCA Standard 230-99
Product Color	Black
Speed Control Compatible?	No
Cfm (low)	6200
Cfm Range (free Air)	5001 - 10000
Cord Length (feet)	10
Fixed Or Portable	Portable
Guard Material	Powder Coated Steel
Oscillating	Yes
Sound Level (dda at 10')	68
Country Of Origin	US
Guard Spacing (inches)	1/2 OSHA
Cfm/watt ( at 0.10")	TBD
Cfm/watt ( at 0.05")	TBD

Product Details

Air Velocity ( at 10')	950
Blade Color	Metallic
Brand	Schaefer
Cfm (free Air)	6700
Drive	Direct
Phase	1
Speeds	2
Vfd Compatible	No
Cfm/watt (free Air)	15.8
Cord	Included - Wired
Diameter (inches)	24
Frequency (hz)	60
Guard Color	White
Mount Type Included	Pedestal
Nameplate Amps	5.9
Number Of Wings	3
Power (hp)	1/2
Product Net Weight (lbs)	TBD
Performance Test #	721
Switch	On product
Voltage	115
Maximum Rpm	1075
Air Velocity ( at 5 Times Diameter)	TBD
Blade Material	Aluminum
Cfm (high)	6700
Cfm Calculation Standard	ANSI/AMCA Standard 230-99
Product Color	Black
Speed Control Compatible?	No
Cfm (low)	6200
Cfm Range (free Air)	5001 - 10000
Cord Length (feet)	10
Fixed Or Portable	Portable
Guard Material	Powder Coated Steel
Oscillating	Yes
Sound Level (dda at 10')	68
Country Of Origin	US
Guard Spacing (inches)	1/2 OSHA
Cfm/watt ( at 0.10")	TBD
Cfm/watt ( at 0.05")	TBD

Note

Note: Please read description carefully. Do not base your order on the picture presented.
