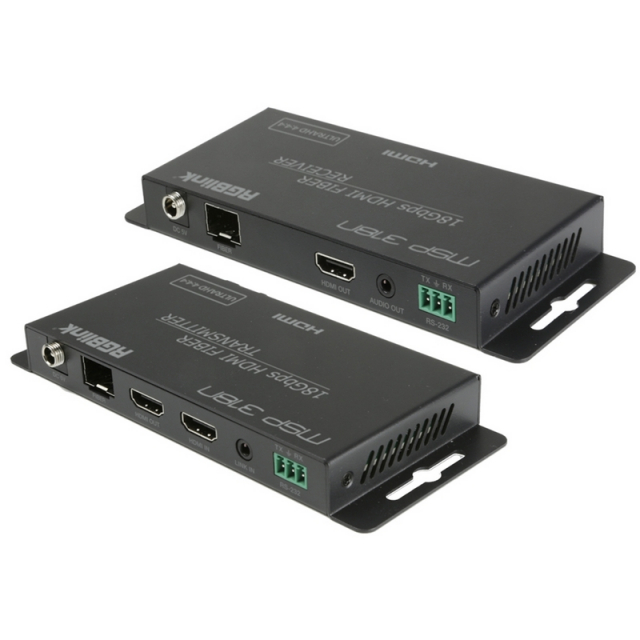

RGBlink 611-0318-01-0 MSP 318N HDMI 2.0 Fiber Extender

611-0318-01-0 Includes Only:

• 1 x Transmitter
• 1 x Receiver
• 2 x IR Blaster Cable (1. 5 meters)
• 2 x IR Receiver Cable (1. 5 meters)
• 2 x 5V/1A Power Adapter
• 2 x 3-pin 3. 81mm Phoenix Connector
• 1 x User Manual

Features:

• Support 4K at 60hz (18Gbps) RGB 4:4:4 8bits, HDR
• Support HDMI 2. 0b/HDCP 2. 2
• External SFP+ 10 Giga module for different distance
• Support 3D, HDR format
• Support Bi-directional IR control, RS 232 pass through
• EDID management by dip switch
• Transmitter supports loop output and audio embedding
• Receiver supports audio extracting

This HDMI Extender can extend HDMI signal up to 3300 feet/1000 meters (over single-mode fiber cable) or 1000 feet/300 meters (over multi-mode fiber cable). Video resolution is up to 4K x 2K at 60Hz 4:4:4. Transmitter supports loop output, audio embedding and EDID management function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS-232 signal pass-through. It can allow you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.

For more information, please see Data Sheet and User Mnaual
