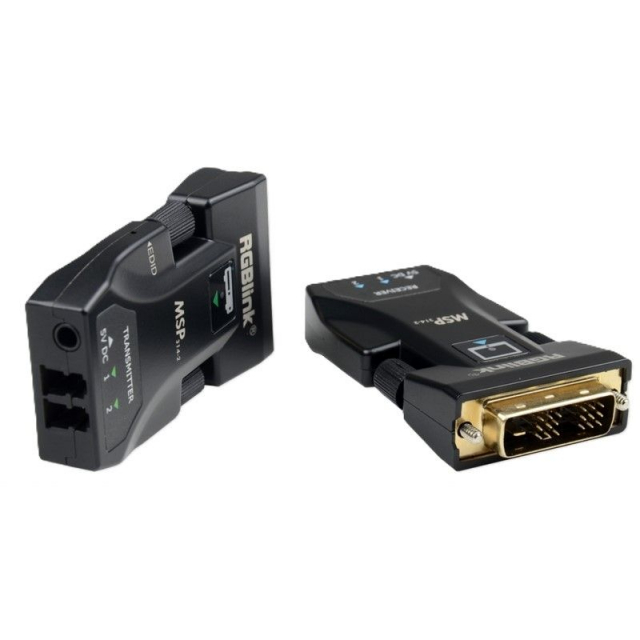

Buy RGBlink 611-0001-01-0, MSP 314-2 Compact DVI Fiber Extender

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Connectors:: Connectors: Input 1 x DVI, 2 x LC, Output 2 x LC, 1 x DVI

611-0001-01-0 Includes Only:

1 x Transmitter
1 x Receiver
2 x Power Adapter

Features:

Compatible with VESA resolutions up to WUXGA (1920x1600) 60Hz
Transmit 500m by Multi Mode Fiber and 2000m by Single Mode Fiber to extend DVI signal
Built-in WDM wave plate, 1310nm/1550nm laser diode as optical source
EDID management
Compact shell structure

Diagram

MSP 217 is a fiber extender, which can play roles as a transmitter and receiver. MSP 217 supports long distance transmission, realizing the transmission of signals between 3G SDI and Fiber. MSP 217 is suitable for the high definitioninition video signal transmission in the train platform and the military practice.

For more information, please see pdf file Data Sheet and User Mnaual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Connectors

Input

Transimitter
- 1xDVI
Receiver
- 2 x LC

Output

Transimitter
- 2 x LC
Receiver
- 1xDVI

Performance

Input Resolution DVI

SMPTE
- 480i at 60Hz
- 576i at 60Hz
- 720p at 50/60Hz
- 1080p at 50/60Hz
VESA
- 800x600 at 60Hz
- 1024x768 at 60Hz
- 1280x768 at 60Hz
- 1280x1024 at 60Hz
- 1360x768 at 60Hz
- 1400x1050 at 60Hz
- 1440x900 at 60Hz
- 1600x1200 at 60Hz
- 1680x1050 at 60Hz
- 1920x1080 at 60Hz
- 1920x1200 at 60Hz
- 2048x1152 at 60Hz
- 2560x812 at 60Hz
- 2560x816 at 60Hz

Output Resolution DVI

SMPTE
- 480i at 60Hz
- 576i at 60Hz
- 720p at 50/60Hz
- 1080p at 50/60Hz
VESA
- 800x600 at 60Hz
- 1024x768 at 60Hz
- 1280x768 at 60Hz
- 1280x1024 at 60Hz
- 1360x768 at 60Hz
- 1400x1050 at 60Hz
- 1440x900 at 60Hz
- 1600x1200 at 60Hz
- 1680x1050 at 60Hz
- 1920x1080 at 60Hz
- 1920x1200 at 60Hz
- 2048x1152 at 60Hz
- 2560x812 at 60Hz
- 2560x816 at 60Hz

Supported Standard

DVI
S-DVI

Extend Distance

Multi-Mode 300M
Single Mode 2KM
Single Mode 20KM (custom made)

Power

Input Voltage

5V DC

Physical

Weight

0.16kg

Dimension

70mm x 39mm x 15mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Connectors

Input

Transimitter
- 1xDVI
Receiver
- 2 x LC

Output

Transimitter
- 2 x LC
Receiver
- 1xDVI

Performance

Input Resolution DVI

SMPTE
- 480i at 60Hz
- 576i at 60Hz
- 720p at 50/60Hz
- 1080p at 50/60Hz
VESA
- 800x600 at 60Hz
- 1024x768 at 60Hz
- 1280x768 at 60Hz
- 1280x1024 at 60Hz
- 1360x768 at 60Hz
- 1400x1050 at 60Hz
- 1440x900 at 60Hz
- 1600x1200 at 60Hz
- 1680x1050 at 60Hz
- 1920x1080 at 60Hz
- 1920x1200 at 60Hz
- 2048x1152 at 60Hz
- 2560x812 at 60Hz
- 2560x816 at 60Hz

Output Resolution DVI

SMPTE
- 480i at 60Hz
- 576i at 60Hz
- 720p at 50/60Hz
- 1080p at 50/60Hz
VESA
- 800x600 at 60Hz
- 1024x768 at 60Hz
- 1280x768 at 60Hz
- 1280x1024 at 60Hz
- 1360x768 at 60Hz
- 1400x1050 at 60Hz
- 1440x900 at 60Hz
- 1600x1200 at 60Hz
- 1680x1050 at 60Hz
- 1920x1080 at 60Hz
- 1920x1200 at 60Hz
- 2048x1152 at 60Hz
- 2560x812 at 60Hz
- 2560x816 at 60Hz

Supported Standard

DVI
S-DVI

Extend Distance

Multi-Mode 300M
Single Mode 2KM
Single Mode 20KM (custom made)

Power

Input Voltage

5V DC

Physical

Weight

0.16kg

Dimension

70mm x 39mm x 15mm

Note

Note: Please read description carefully. Do not base your order on the picture presented.
