120-0004-01-0 Includes Only:
- 1 x Main Unit
- 1 x AC Power Cord
- 2 x HDMI Cable
- 1 x USB Cable
- 1 x Antistatic Bag
Features:
- Up to 8K-2K output splicing
- 4K at 60 outputs including HDMI 2. 0, DisplayPort 1. 2, 12G SDI Internal YUV4:4:4 processing 12 Bit processing
- HDR 10 & HLG compliance HDCP 2. X compliance
- 4K at 60 HDMI 2. 0 input
- 4K at 60 DP 1. 2 input
- 12G/6G/3G/HD/SD SDI input compatible
- Support for 8K native input and output
- 4K EDID management
- Multiple operation mode including Switcher, video wall with different presettings

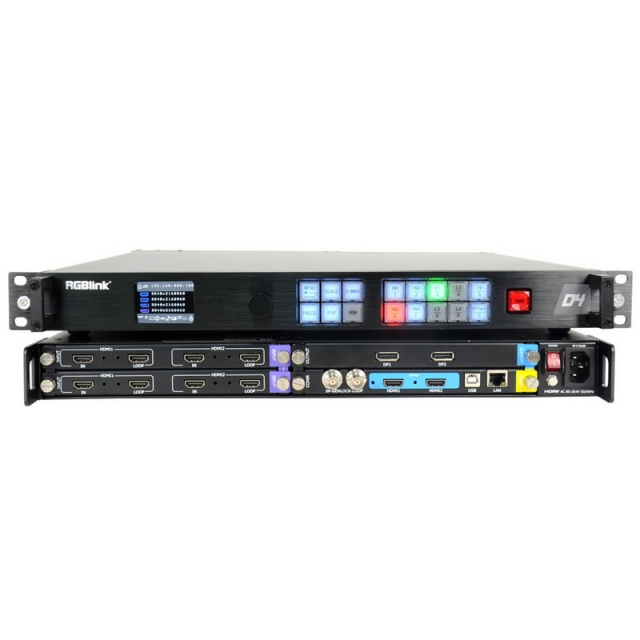

With standard in and any out, D4 is so much more than a 4K scaler, Whether for scaling, presentation switching, 4K distribution or broadcast, D4 an ideal solution. There are multiple operation modes on board making D4 is a very flexible solution across a range of applications. Truly an All-In-One solution, D4 accepts a wide range of input signals in a huge array of formats - Inputs can be converted, scaled, transcoded to standard to HDMI 2. 0 outputs. The dual channel 4K output scalers offer 12 bit processing and YUV4:4 4 color space. Fully modular, D4 is modern presentation switching on demand.
The Standard in Multi-Format 4K Presentation Switching
D4 is a very flexible video switching and scaling solution for 4K signals featuring multiple output modes, a comprehensive on board feature set and acclaimed RGBlink modular design. Truly multi-signal, D4 may be fitted with a wide range of input signals including HDMI 2. 0m DisplayPort 1. 2 and 12G-SDI along with conventional 2K signals. In the tradition of previous generation 2K solutions signals can be converted, scaled, transcoded to 4K output. Dual channel 4K HDMI 2. 0 output are standard while these two channels may be duplicated for output via the option slot. There is full 4:4:4 color space, 12 bit on board processing and support for HDR signals to meet the highest performance standards. EDID management is built in and D4 is also HDCP 2. X compliant. Across a range of applications requiring scan conversion, scaling or seamless presentation switching, D4 is ideal for high performance and broadcast workloads.
HDR
Signals with High Dynamic Range are supported for processing via the processor with high bandwidth and wide gamut 12 bit gray level processing.
Visual Enhancements
Apply a range of visual effects and enhancements with fine grain controls.
Scale
Scale outpu(s) to any size within the selected resolution range.
Format
D4 accepts all common 2K & 4K input formats, with EDID management built in. Output to any 2K or 4K format with custom resolutions able to bespecified to down stream requirements.
Rotation & Flip
Support image rotation and flip including horizontal and vertical flip/mirror.
Crop & Position
Select X and Y offsets along with width and height to select any image part for output.
Output Splicing
Split output across the dual output channels providing an 8K x 2K display canvas and seamless pixel to pixel hard edge blend.
For more information, please see
Data Sheet and User Manual
