110-0628-01-0 Includes Only:
- Main Unit
- AC Power Cord
- HDMI Cable
- HDMI to DVI Cable
- SDI Cable
- DB9 to RJ11 Cable
- USB Cable
- DVI Cable
- Antistatic Bag
Features:
- 4K at 60Hz on HDMI, DisplayPort and/or 12G-SDI
- Dedicated PVW Output
- LCD Display and Video Preview
- Integrated EDID Management
- DSK / Chroma Key
- Soft Edge Blending
- Advanced Image Enhancements including Noise Reduction
- De-Interlacing
- Genlock Y In
- MAX 8 layers on 4K background image with 4 extra AUX outputs
- Control Remotely from XPOSE, T-TWO (ONE) or RGBlink OpenAPI
D6 is highly configurable with each slot supporting 4K 60fps and signal options including HDMI, DisplayPort and 12G-SDI, as well as conventional 2K signal options. Configure interactively and preview from the integrated LCD touch screen. In addition there is a dedicated PVW multi-view output. The true mixed signal capability D6 synchronizes all signals presenting video to output across a comprehensive range of system operation modes for multi-layer 4K and 2K display along with auxiliary video facilities too.
For High Performance 4K Video End-to-End, D6 Delivers
Modern presentations demand 4K at refresh rates supporting digital media. D6 builds on the tradition of its broadcast quality predecessors and RGBlink innovations while adding new and enhanced features.

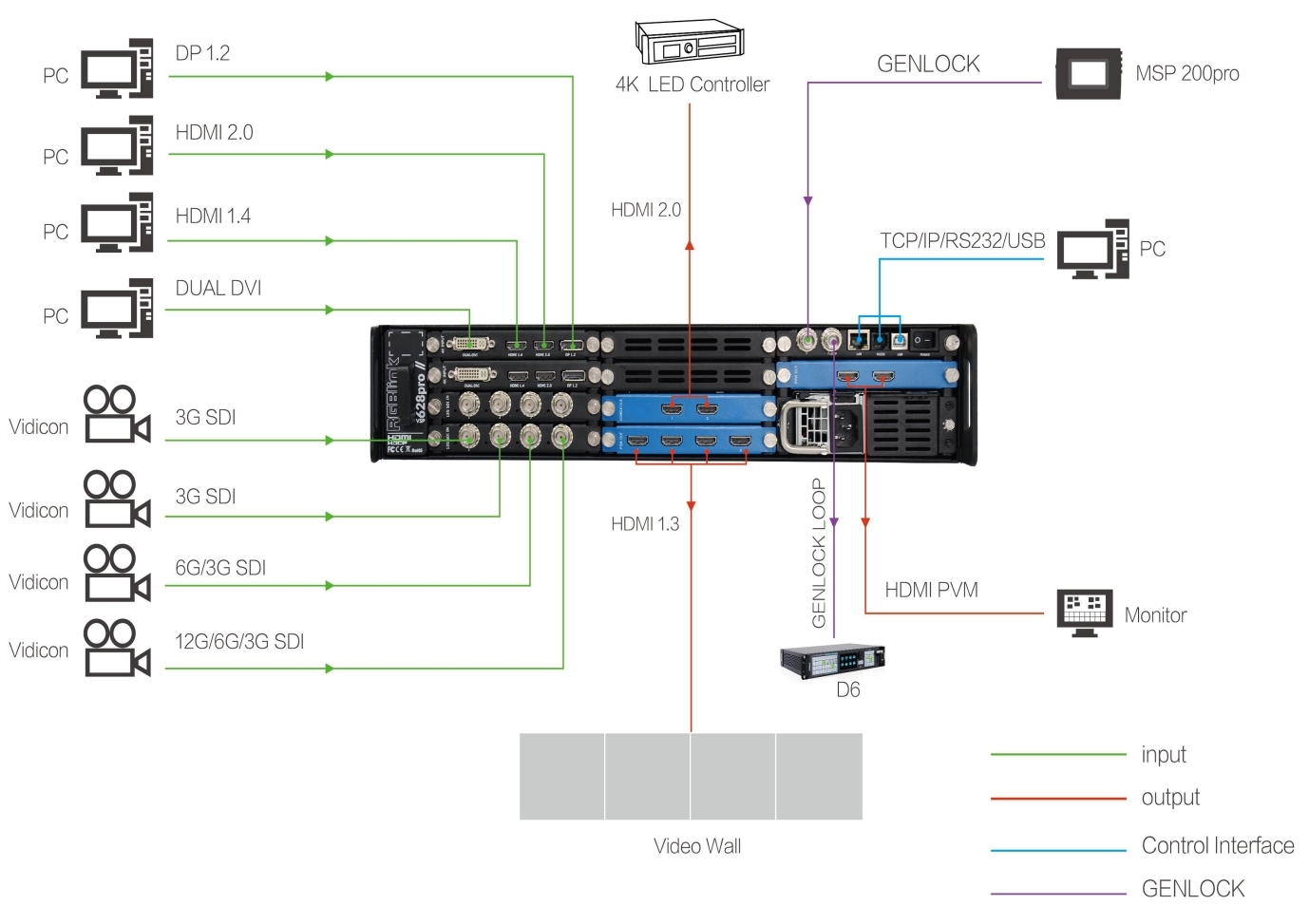

RGBlink modular slots are utilised throughout for the ultimate in flexibility and configurability, with each slot supporting 4K 60fps and signal options including HDMI, DisplayPort and 12G-SDI as well as conventional 2K signal options. D6 has RGBlink XPOSE built right in for interactive and visual configuration in conjunction with the large integrated LCD display. Preview not only directly on board, but also from the dedicated PVW multi-view output.
Modular Design
D6 has four input and four output slots with each slot supporting up to 4K at 60. A wide range of options are available including a digital input module with HDMI 2. 0 and DisplayPort 1. 2, a 12G-SDI module that supports multiple 3G-SDI inputs too.
HDR Support
Signals with High Dynamic Range are supported for processing via the processor with D6 having a high bandwidth 60Gbps backplane and wide gamut 12 bit gray level processing.
Multi-Mode Operations
Select the operation mode suitable for the application from conventional Preview mode with seamless alpha cross fades, to Presentation Modes for the maximum layers and seamlessly fade-in-fade mixing, and videowall splicing modes. A range of presets allow quick and easy configuration to requirement.
Full Color Space
Video scaling and conversion takes advantage of the RGBlink full 4:4:4 in hardware processing engine for the maximum visual performance.
Multi Layer Switching & Scaling
At the heart of presentation switching is true seam - less switching of mixed signal types and resolutions. D6 scales and synchronises all video sources for output, and for switching operations seamless switches between preset and program. RGBlink pixel-to-pixel scaling engine presents pixel perfect video to non-native or creative displays as well providing the multi-PIP/layer/window capabilities.
Background Video
Select a source to be a background for the program output. Background is converted and scaled automatically to the full output resolution. Background video is ideal for Presentation Mode where many layers are utilised offering a canvas for fade-out-fade-in to occur against for maximum effect.
Genlock
For synchronisation with other video devices, Genlock Y in is provided along with loop out.
Dedicated Multi-View Preview
A built in preview feature allows review and configuration of video presets before TAKE to program. The multi-view is automatically configured for operation mode. Preview may be monitored from the from panel or viewed externally via the 2K preview output port independent of program output resolutions.
Chroma Key/DSK
Apply a key from presets or specify to requirement for foreground keying against the background layer.
Image Enhancement
A full range of image enhancement controls are available on board including Noise Reduction, Gamma control, Hue, Tone, Color Temperature and more.
Low Latency
Full hardware based video processing offers industry leading low cost latency across the processor.
Control Local and Remote
The D6 front panel features large tactile and individually illuminated buttons as well as integral display. Uniquely the D6 front panel can be removed either for security or located and connected remotely increasing operational flexibility.
Connect and Control
Remotely configure and control D6 from XPOSE on Windows or macOS and via LAN or USB. RGBlink T Series control consoles may also be used for remote control, and for integrators RGBlink OpenAPI offers even further possibilities.
For more information, please see
Data Sheet and User Manual
